Keyscan NETCOM6P Installation Manual page 20

Important
For reverse network, use either 9600 or 57,600 baud jumper settings whichever jumper
setting was selected for the control board.
Parts List
- Control Board
- PC with network connection
- CIM
- NETCOM2P or NETCOM6P
- 10/100 Base-T Cable
- CAT 5 Cable – 2 twisted pairs
to network with path/
connectivity to PC/
server with
Communication
Manager
Reverse network communication
requires CANBUS 1 and CANBUS 2.
Bit Rate / Distance
Bit CAN Bus
9600 3280' (999.7 m)
19200* 3280' (999.7 m)
57600 984' (299.9 m)
115200* 262' (80 m)
* not applicable for reverse network communication
Bit Rate / Jumper Settings (0 = OFF / 1 = ON)
Bit CIM
J9 J10 J11
9600 0 0 1
19200 0 1 0
57600 1 0 0
115200 1 0 1
IOCB (COM1)
RX
TX
CPB/CB COMMS
(COM4)
H2 H1
COMMON AUX INPUTS - E
17 18 19 20 21 22 23 24
V +
(+12V)
GND
GND
TD1
RD1
RTS
CTS
GND
TD2
RD2
RTS
CTS
KI-00461E-07-12
Keyscan Inc. A Member of the Kaba Group

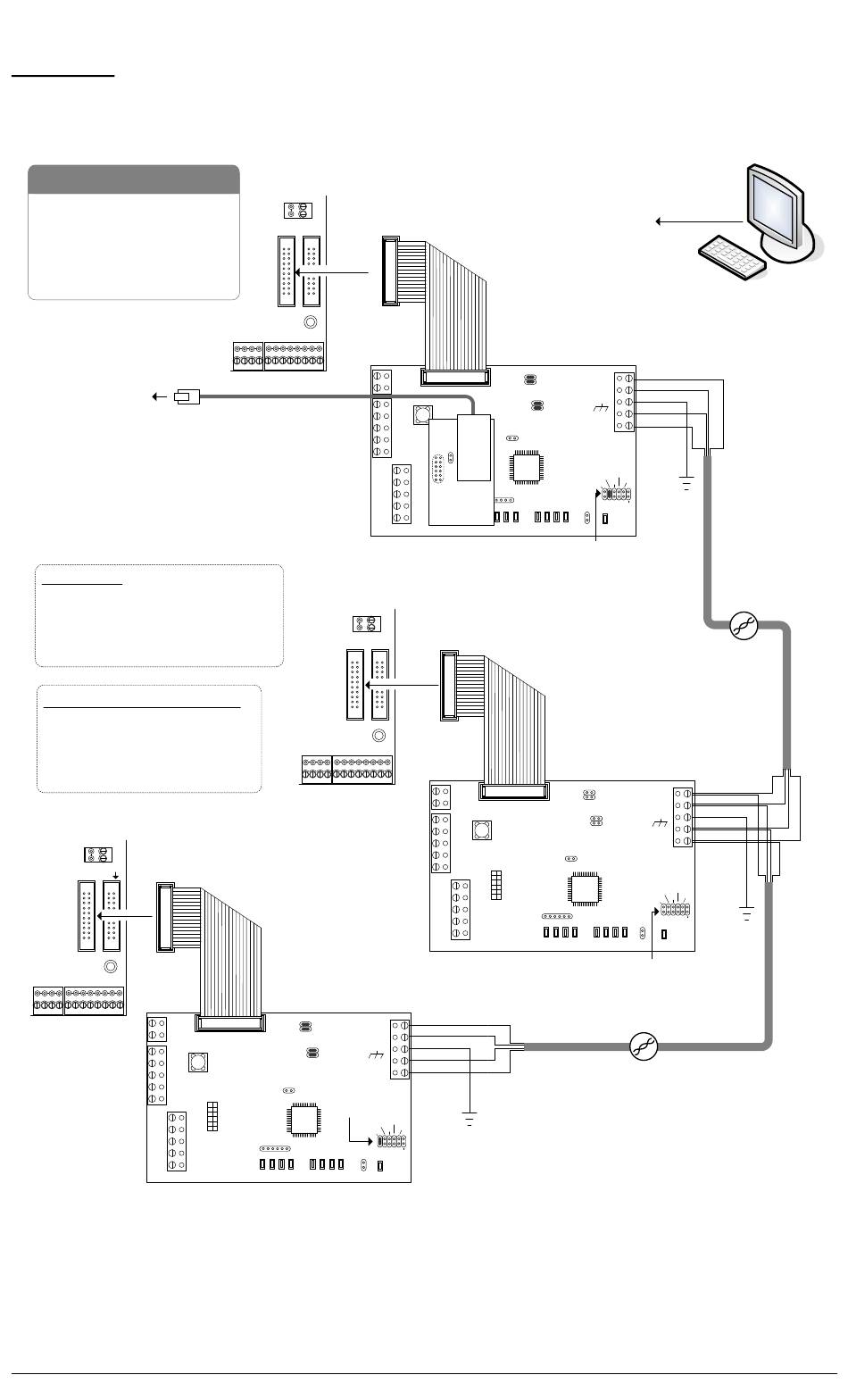

Figure 10 – CIM 0 / CIM / ACU Connections
