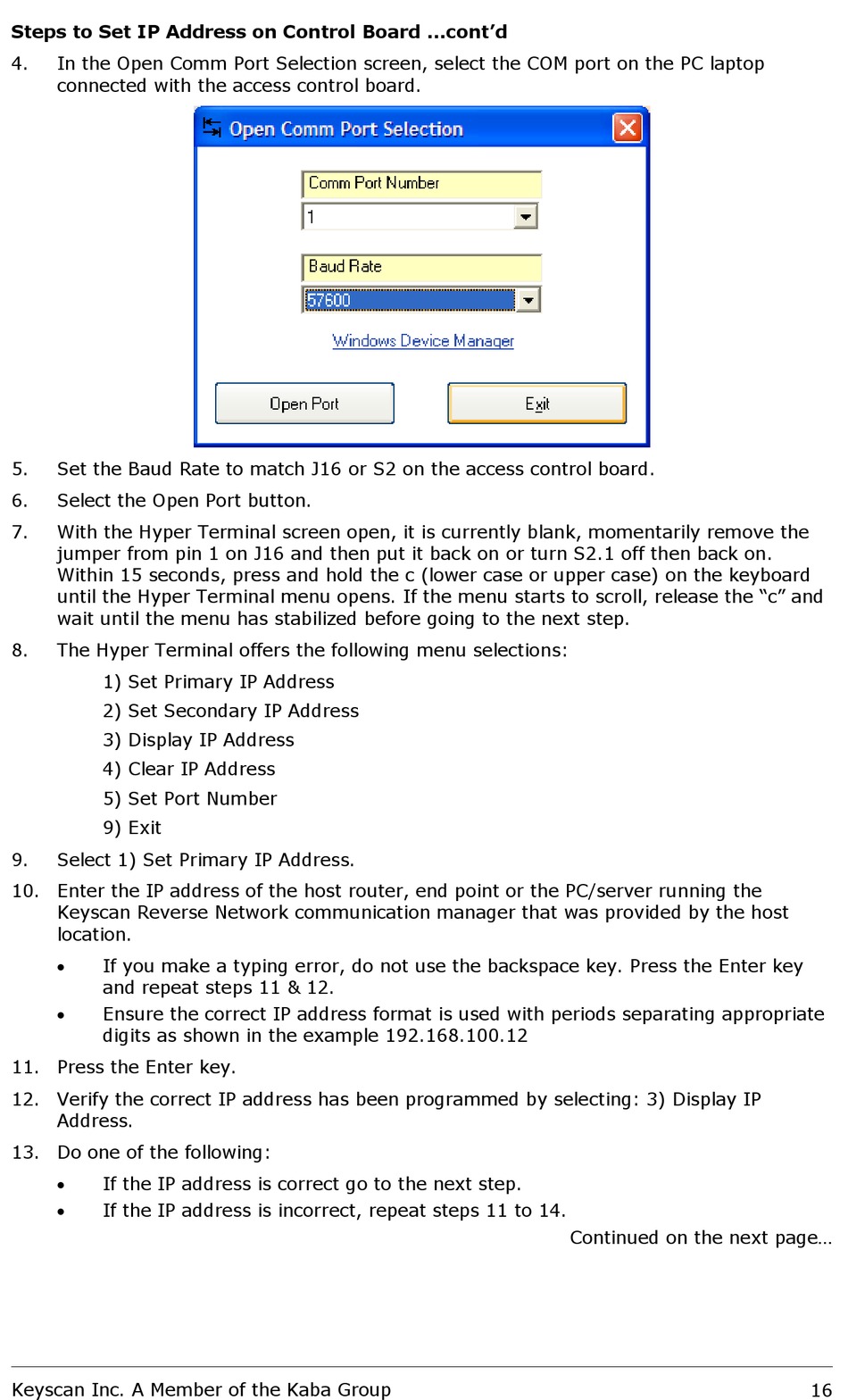

Keyscan NETCOM6P Installation Manual page 16

Steps to Set IP Address on Control Board ...cont'd
4. In the Open Comm Port Selection screen, select the COM port on the PC laptop
connected with the access control board.
5. Set the Baud Rate to match J16 or S2 on the access control board.
6. Select the Open Port button.
7. With the Hyper Terminal screen open, it is currently blank, momentarily remove the
jumper from pin 1 on J16 and then put it back on or turn S2.1 off then back on.
Within 15 seconds, press and hold the c (lower case or upper case) on the keyboard
until the Hyper Terminal menu opens. If the menu starts to scroll, release the "c" and
wait until the menu has stabilized before going to the next step.
8. The Hyper Terminal offers the following menu selections:
1) Set Primary IP Address
2) Set Secondary IP Address
3) Display IP Address
4) Clear IP Address
5) Set Port Number
9) Exit
9. Select 1) Set Primary IP Address.
10. Enter the IP address of the host router, end point or the PC/server running the
Keyscan Reverse Network communication manager that was provided by the host
location.
 If you make a typing error, do not use the backspace key. Press the Enter key
and repeat steps 11 & 12.
 Ensure the correct IP address format is used with periods separating appropriate
digits as shown in the example 192.168.100.12
11. Press the Enter key.
12. Verify the correct IP address has been programmed by selecting: 3) Display IP
Address.
13. Do one of the following:
 If the IP address is correct go to the next step.
 If the IP address is incorrect, repeat steps 11 to 14.
Keyscan Inc. A Member of the Kaba Group
Continued on the next page...
