Keyscan NETCOM6P Installation Manual page 11

Serial Programming Connections
Establish a serial programming connection from the PC or laptop using the enclosed data
cables.
If the PC or laptop does not have a serial port, use Keyscan's optional USB-SER Adaptor.

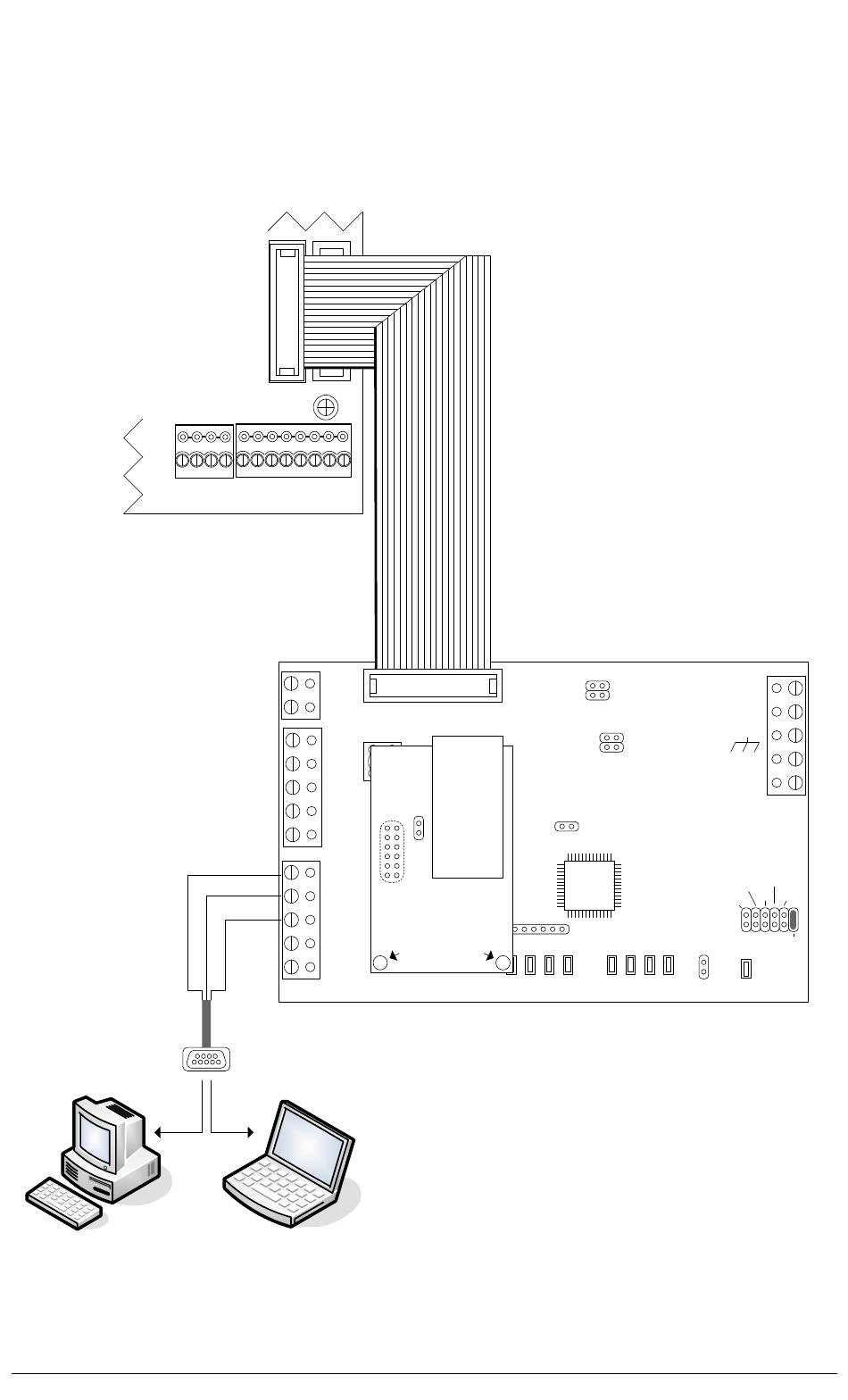

Figure 5 - Serial Programming Connections Powered via H2 on the Control Board
Control Board
(PC 109x)
Current Draw : CIM 150 mA +
NETCOMP 140 mA = 290 mA
Serial Data Cable
with loose
conductors
NETCOM6P/CIM - RN Installation Guide
H2 H1
17 18 19 20 21 24
22 23
Common AUX Inputs - E
V +
(+12V)
GND
COM1
GND
TD1
RD1
RTS1
CTS1
COM2
Green
GND
Black
TD2
Red
RD2
RTS2
CTS2
PC106x
PC or laptop with Keyscan
NETCOM Program Tool Utility.
HDR1
U2
RJ45
Terminal
Jack
J1
SCKT1
NETCOMP
Rx Data
Standoffs
1 2 1 2
COM
Connect ribbon cable from
HDR1 on CIM 0 to H2 on
control board. Control board
requires power from DPS-15.
Place a jumper on J12 to set
the CIM for Program mode.
After programming remove
the jumper from J12 to set the
CIM on Run mode. Ensure
CIM 0 has a jumper on J4.
J7
CAN2
J8
J5
CAN1
J6
RESET
J1
CIM 0
Tx Data
B3 B2 B1 B0
1 2 1 2
COM CAN
CAN
-
CAN2
+
EGND
-
CAN1
+
To program
NETCOM2P/6P
jumper ON J12
J10
J4
J11
J9
J3
Diag
J12
Power
Good
J2
Fault
