TIG "AC and DC" welding
- Welding parameters
• The MATRIX AC/DC can be configured in the following 2 ways:
• STANDARD (Std) configuration.
• SPECIAL (SPE) configuration.

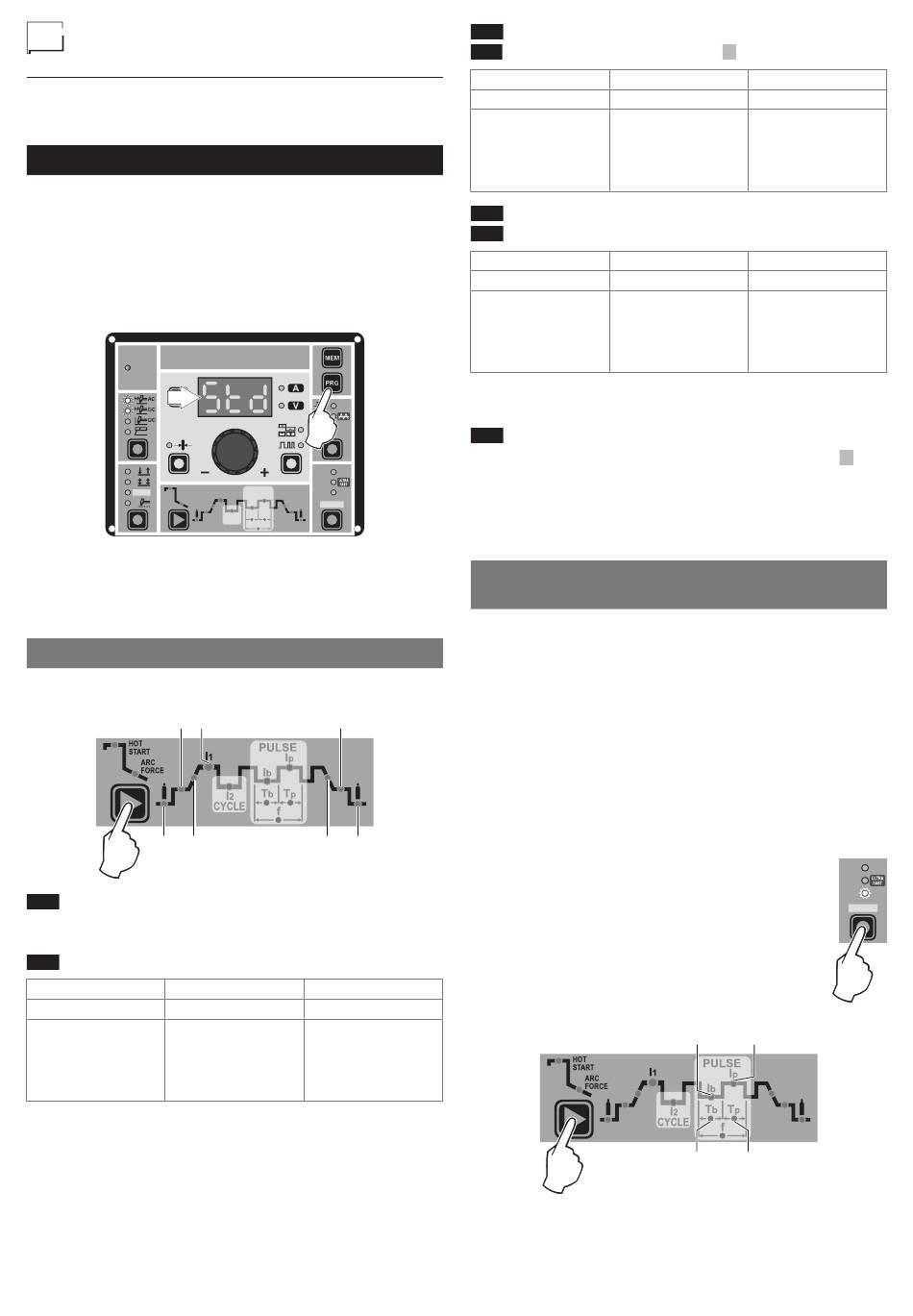

STANDARD CONFIGURATION (Std)

When it leaves the factory the welding machine is normally con-
figured in STANDARD (Std) mode.
To check the configuration, carry out the following operations:
1) When the welding machine is off, push and hold the "PRG"
PROGRAM key down (T2).
2) Start the welding machine by turning the power supply switch
to position I.
3) The DISPLAY (D) shows the following message: Std (welder
configured in STANDARD mode).
VRD
D
Ø
HOT
CYCLE
START
ARC
FORCE
4) Press the "PRG" PROGRAM key (T2) to confirm.
The WELDING PARAMETERS included, programmable, and that
can be edited (by turning the ENCODER key) in a STANDARD
(Std) configuration can be broken down into 3 different sub-groups:
1 -

"BASIC" WELDING PARAMETERS

Press the WELDING PARAMETERS SELECTION Key (T10) a
number of times to set:
L18 L11
L12 L13
T10
L12 PRE-GAS duration (0,05 ÷ 1,00 sec)
WARNING: This CANNOT be programmed when the TIG DC with
"Lift" type ignition welding processes is active.
L18 INITIAL welding CURRENT
2200 AC/DC
TIG DC
TIG AC
DYNAMIC TIG
SPEED TIG
COLD TIG
SOFT TIG
WARNING: This can only be programmed when 4 STROKES or
CYCLE welding mode is activated.
T2
WAVE WAVE
SYN SYN
FAST
FAST
PULSE
SLOW SLOW
I
I
1 p
I
b PULSE PULSE
T T
I b p
2
CYCLE
f
L22
L16 L17
3000 AC/DC
5 ÷ 220 A 5 ÷ 300 A
5 ÷ 220 A 5 ÷ 300 A
5 ÷ 220 A 5 ÷ 300 A
16 ÷ 127 A 5 ÷ 173 A
16 ÷ 156 A 5 ÷ 212 A
L13 SLOPE UP duration (0,0 ÷ 5,0 sec)
L11 PRINCIPAL welding CURRENT I
TIG DC
TIG AC
DYNAMIC TIG
SPEED TIG
COLD TIG
SOFT TIG
L16 SLOPE DOWN duration (0,0 ÷ 8,0 sec)
L22 FINAL welding CURRENT
TIG DC
TIG AC
DYNAMIC TIG
SPEED TIG
COLD TIG
SOFT TIG
WARNING: This can only be programmed when 4 STROKES or
CYCLE welding mode is activated.
L17 POST GAS duration (0,5 ÷ 25,0 sec)
WARNING: When the post-gas LED flashes and the LED I
at the same time, this means that the welding machine is in the
post-gas stage.
To exit the setting phase, hold the WELDING PARAMETERS SE-
LECTION key (T10) down for about 1 second.
2 - WELDING PARAMETERS with
PULSE mode active:
Pulsed TIG welding allows greater control of the arc and better de-
formation of the material.
The MATRIX AC/DC can be used for TIG AC and DC pulsed weld-
ing in 4 different modes:
• SLOW PULSE
• FAST PULSE
• ULTRA FAST PULSE
• SYN PULSE
WARNING: Pulsation is deactivated automatically for the duration
of the INITIAL and FINAL current.
2A) SLOW PULSE
TIG pulse welding with manual setting of parameters.
WARNING:This can only be programmed when the 3 TIG weld-
ing processes are used.
Press the PULSE key (T5) until the requited pulsation
is active.
Press the WELDING PARAMETERS SELECTION Key
(T10) a number of times to set the following (in addi-
tion to the WELDING PARAMETERS defined as be-
ing "BASIC"):
T10
10
1
2200 AC/DC 3000 AC/DC
5 ÷ 220 A 5 ÷ 300 A
5 ÷ 220 A 5 ÷ 300 A
5 ÷ 220 A 5 ÷ 300 A
16 ÷ 127 A 5 ÷ 173 A
16 ÷ 156 A 5 ÷ 212 A
2200 AC/DC 3000 AC/DC
5 ÷ 220 A 5 ÷ 300 A
5 ÷ 220 A 5 ÷ 300 A
5 ÷ 220 A 5 ÷ 300 A
16 ÷ 127 A 5 ÷ 173 A
16 ÷ 156 A 5 ÷ 212 A
L20 L21
L14 L15
is on
1
SYN
FAST
SLOW
PULSE
T5
