Connecting the Projector to Other Devices

Controlling the Projector Using a Computer

Connecting to a
Computer Using a DIN-D-
sub RS-232C Adaptor
and an RS-232C Serial
Control Cable
When the RS-232C terminal on the projector is
connected to a computer with a DIN-D-sub RS-
232C adaptor and an RS-232C serial control
cable (cross type, sold separately), the computer
can be used to control the projector and check
the status of the projector. See page
tails.
1
Connect the supplied DIN-D-sub
RS-232C adaptor to an RS-232C
serial control cable (sold sepa-
rately).
2
Use the above cables to connect
the projector and the computer.
Note
• Do not connect or disconnect an RS-232C
serial control cable to or from the computer
while it is on. This may damage your com-
puter.
• The RS-232C function may not operate if
your computer terminal is not correctly set
up. Refer to the operation manual of the
computer for details.
• See page
60 for connection of an RS-232C
serial control cable.
-20
PG-A20X_E_PDF_P18_20.p65
61 for de-
20

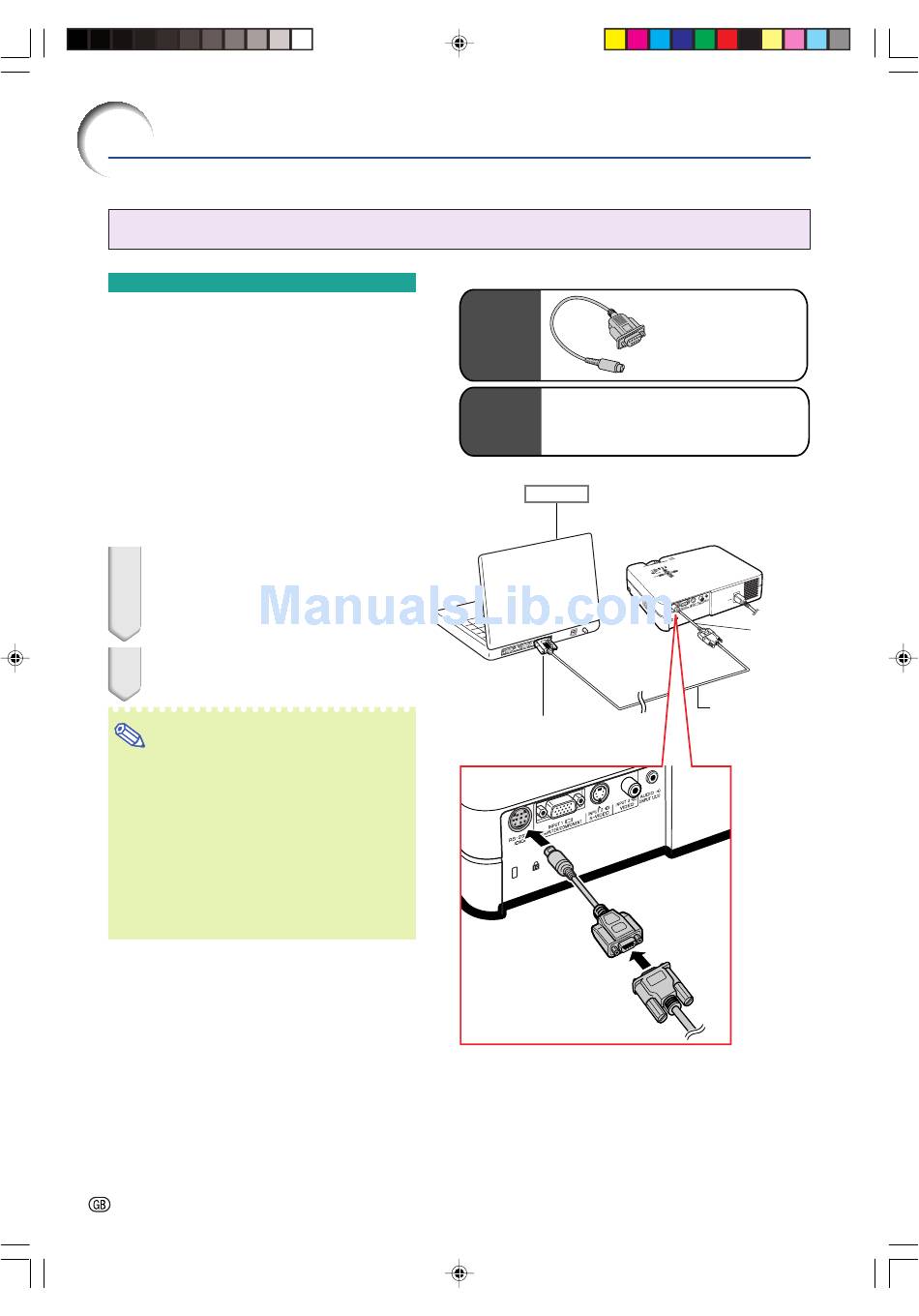

Supplied
accessory
RS-232C serial control cable
Optional
AN-C10RS
cable
(32'10" (10.0 m))
Computer
To RS-232C terminal
03.4.23, 9:56 AM
DIN-D-sub
RS-232C adaptor
DIN-D-sub
RS-232C
adaptor
RS-232C serial
control cable
(sold separately)
