Setup

Using the Adjustment
Feet

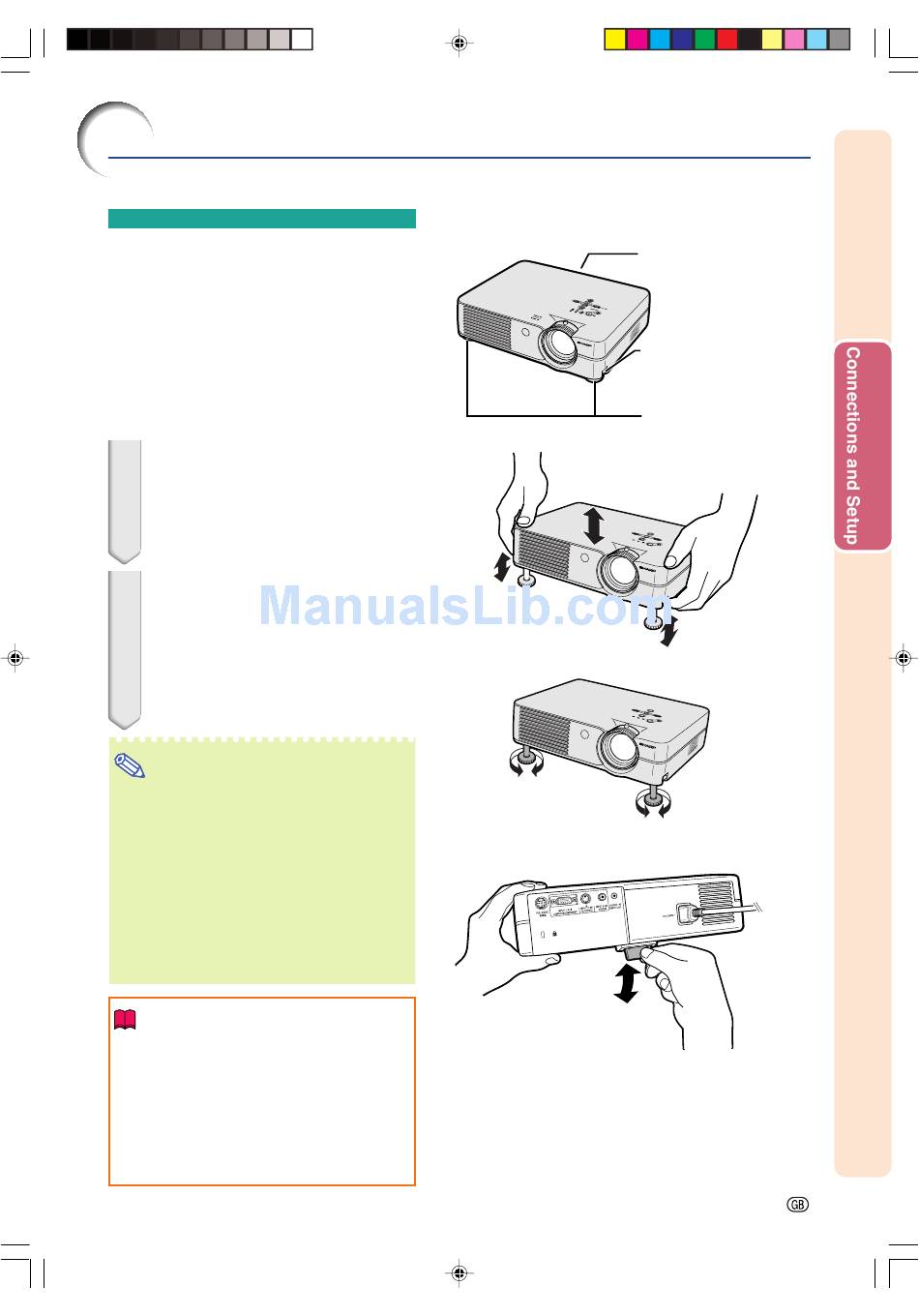

The height of the projector can be adjusted us-
ing the adjustment feet at the front and rear of
the projector when the surface the projector is
placed on is uneven or when the screen is
slanted.
The projection of the image can be made higher
by adjusting the projector when it is in a lower
place than the screen.
1
While pressing the foot releases
on both sides, lift the projector
to adjust its height and then re-
move your fingers from the foot
releases.
2
Rotate the adjustment feet at the
front of the projector for fine
adjustment.
• You can adjust the projection by using
the rear adjustment foot on the bottom
of the projector when the projector is po-
sitioned at the higher place than the
screen.
Note
• The Keystone Correction will be automatically
performed when the projector is tilted. If you
want to adjust the Keystone Correction
manually, see page 29. (For details on set-
ting of the Keystone Correction, see page 44.)
• When returning the projector to its original
position, hold the projector firmly, press the
foot releases and then gently lower it.
• The projector is adjustable up to approxi-
mately 12 degrees at the front and 3 degrees
at the back from the standard position.
Info
• Do not press the foot releases when the ad-
justment feet are extended without firmly
holding the projector.
• Do not hold the lens when lifting or lower-
ing the projector.
• When lowering the projector, be careful not
to get your fingers caught in the area between
the adjustment foot and the projector.
PG-A20X_E_PDF_P21_25.p65 21
Rear adjustment foot
(on the bottom)

Foot release

(on the other side of
the projector as well)
Front adjustment feet
