McQuay AGZ 010BS Installation, Operation And Maintenance Manual

Air-cooled scroll compressor water chillers
Hide thumbs
Table of Contents

Advertisement

Quick Links

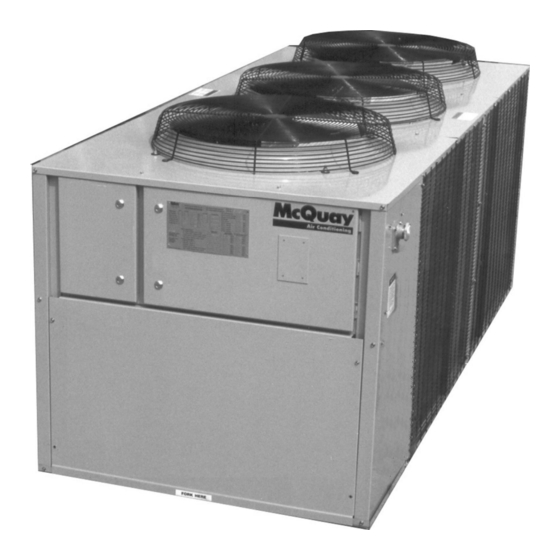

Installation, Operation and Maintenance Manual
Air-Cooled Scroll Compressor Water Chillers
AGZ 010BS – AGZ 034BS, Packaged Chiller
AGZ 010BM – AGZ 034BM, Remote Evaporator
10 to 34 Tons, 35 to 120 kW
R-22, R-407C
60 Hertz
Software Version AGZSU0102D
IOMM AGZB1
Group: Chiller
Part Number: 331975001
Effective: October 2007
Supersedes: New
