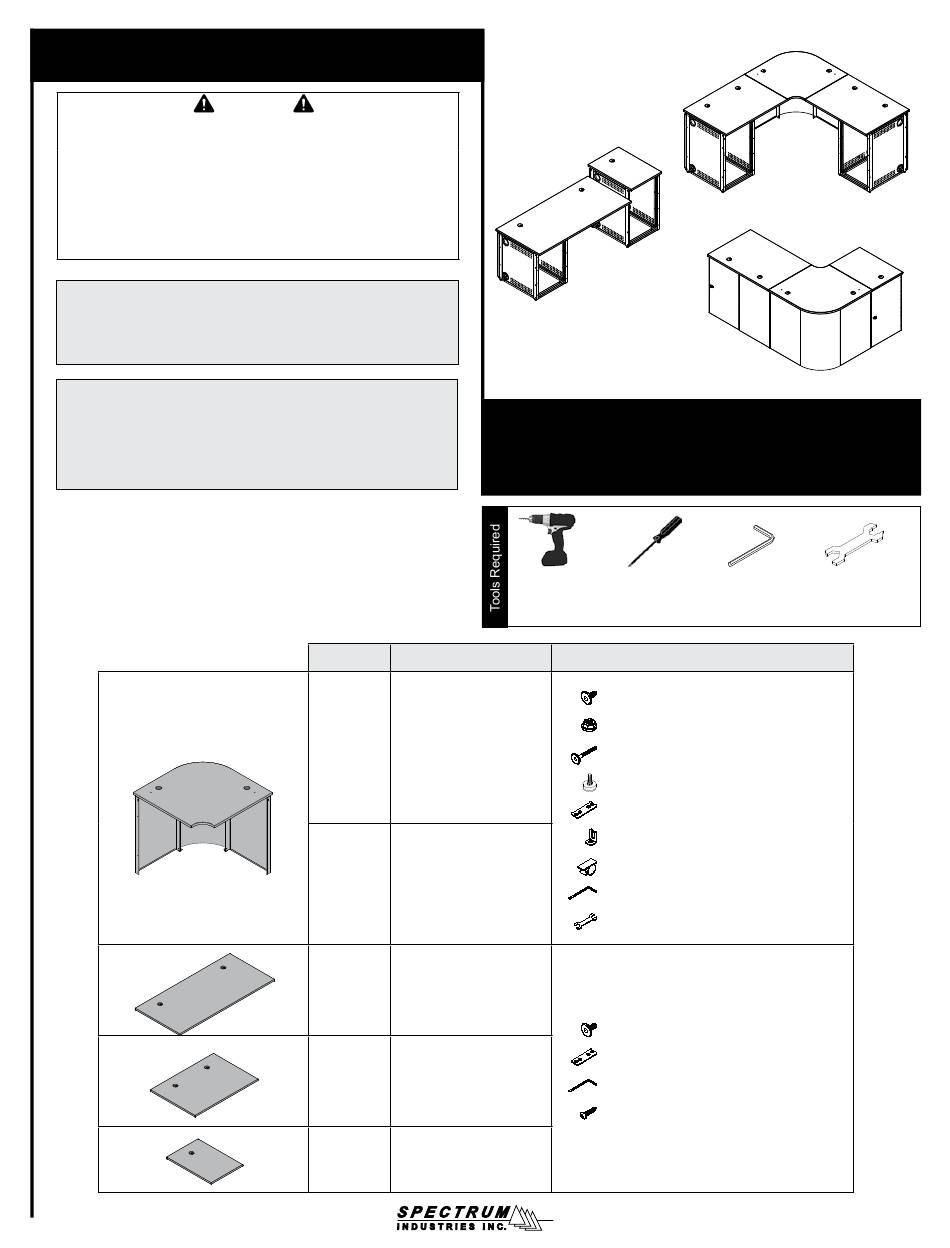

Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
Assembly Tips:
• Assemble the console in its final location.
• To facilitate assembly, keep the fasteners finger-tight until the
console is completely together. Then tighten securely.
Note: The items below represent all the structural components
available for the Instructor Media Console. Due to the various
console configurations and order combinations available, some
of the items shown here may not be included with your particular
unit, and some assembly steps may not apply. Before beginning
assembly, please review these instructions.
Product #
Description
68156
36" Radius Corner
68106
29" Radius Corner
68202
Triple Worksurface
68201
Double Worksurface
68200
Single Worksurface
Instructor Media Console
68XXX series
Drill with
Phillips
Phillips driver
screwdriver
(best)
Hardware
(26) 1/4-20 x 15mm JC bolt - 052605
(6) 1/4-20 Flanged locknut - 0108896
(2) 1/4-20 x 50mm JC bolt - 038047
(2) 5/16-18 x 1" Glide - 037779
(2) Unit-to-unit bracket - 037749
(2) Worksurface bracket - 044069
(3) Cord clip - 044207
(1) 4mm Hex wrench - 025039
(1) Glide wrench - 025069
(4) 1/4-20 x 15mm JC bolt - 052605
(2) Unit-to-unit bracket - 037749
(1) 4mm Hex wrench - 025039
(6) #6 x 5/8" PHSM screws - 025044
4mm Hex
Glide Wrench
Wrench
(included when
(included)
applicable)
0108630R11 Page 1 of 10
Advertisement
Table of Contents
Related Manuals for Spectrum 68 Series
Summary of Contents for Spectrum 68 Series
- Page 1 800-235-1262, 715-723-6750 Thank you for purchasing Spectrum products! Assembly Tips: • Assemble the console in its final location. • To facilitate assembly, keep the fasteners finger-tight until the console is completely together.
- Page 2 Product # Description Hardware (4) 1/4-20 x 15mm JC bolt - 052605 (2) Adhesive bumper - 044573 68157 36” Equipment Rack (4) 5/16-18 x 1” Glide - 037779 (1) 1/4-20 x 90mm JC bolt - 039065 (1) 1/4-20 Flanged locknut - 0108896 68107 29”...
- Page 3 Worksurface Support Guidelines For adequate support, areas under worksurfaces generally should not exceed a span of more than 2 open spaces (or wall filler panels) wide. • When a radius corner is used with two double worksurfaces that have equipment rack support, a mid-support leg usually is not necessary •...
- Page 4 Assembly / Setup Radius Corner Assembly 1. Install the (2) glides onto the corner panel. Figure 1A. The glides can be adjusted later to level the console. 2. Attach each wall filler panel to the corner panel with (4) 1/4-20 x 15mm JC bolts. 3.
-
Page 5: Flanged Locknut
Equipment Rack Assembly 1. Tip the equipment rack onto its back. 2. Install the (4) glides onto the bottom as shown. Figure 2A. The glides can be adjusted later to level the console. 3. Tip the unit back upright, and open the rear door to attach the (2) adhesive bumpers to the equipment rack frame as shown. -
Page 6: X 40Mm Jc Bolt
End-Support Leg Assembly 1. Attach the side panel to the leg frame as shown with (6) 8-32 x 1/2” PH thread-cutting screws and tighten securely. Figure 4A. Note: The 4” grommets will be at the rear of the console. 2. Install the (2) glides onto the bottom of the leg. (The glides can be adjusted later to level the console if necessary.) 3. -
Page 7: X 15Mm Jc Bolt
Mid-Support Leg Assembly Worksurfaces 1. Install the (2) glides onto the bottom of the leg. The glides can be adjusted later to level the console. 2. Align the mid-support leg and wall filler panel mounting holes as shown. Figure 6. Mid-support leg 3. -
Page 8: Flanged Locknut
Worksurface-to-top of Equipment Rack: Worksurface-to-Worksurface with Equipment Rack: Note: This is the attachment of a work- Note: This is the connection between a worksurface of equal surface to the top of an equipment rack. height to another worksurface above an equipment rack. 1. - Page 9 Accessories Not for use on end- support legs or stand- alone equipment racks Clear Acrylic Locking Door Solid Locking Door Flip-up Shelf - 68204 36”H - 68153 36”H - 68152 • Shelf hinges lock into place in the upright position 29”H - 68103 29”H - 68102 •...
- Page 10 P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
