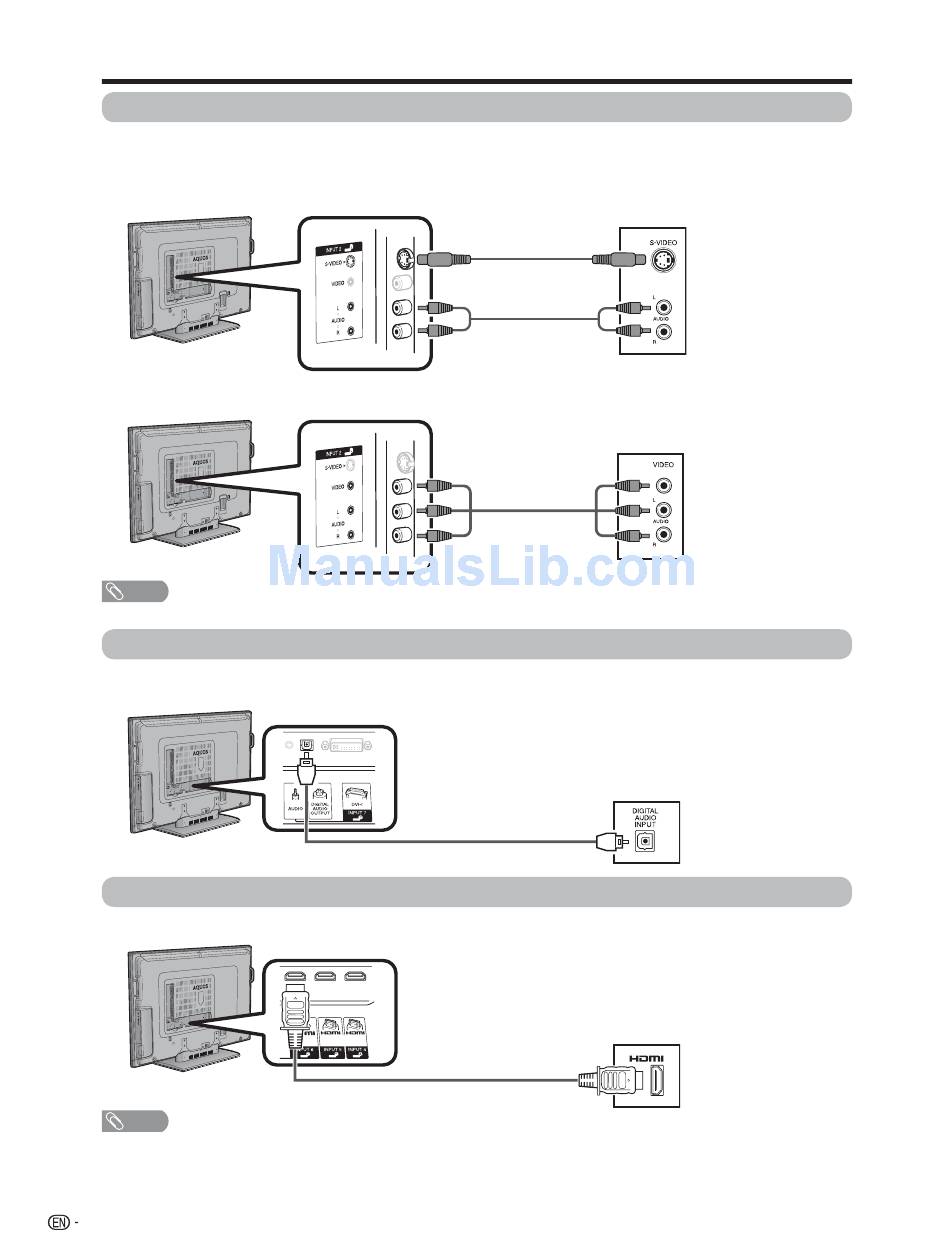

Connecting a VCR, game console or camcorder

A VCR, game console, camcorder and other audiovisual equipment can be conveniently connected using the
INPUT 1 and 2 terminals.
When using S-VIDEO cable.
When using composite cable.
NOTE
• The S-VIDEO terminal takes priority over the video terminals. (INPUT 2 only)

Using Digital Audio Output

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 29 for details.) PCM audio
outputs from the terminal.

Connecting HDMI equipment

You can use the INPUT 4, INPUT 5 or INPUT 6 terminal when connecting HDMI equipment.
NOTE
• When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 6.
• To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player, HD-DVD player or other external equipment
using an HDMI cable and set the equipment to 1080p output.
14
S-VIDEO cable
(commercially available)
AUDIO cable
(commercially
available)
AV cable
(commercially
available)
Optical fi ber cable
(commercially available)
HDMI cable
(commercially available)
VCR/Game console/
Camcorder
VCR/Game console/
Camcorder
External audio devices
HDMI equipment
