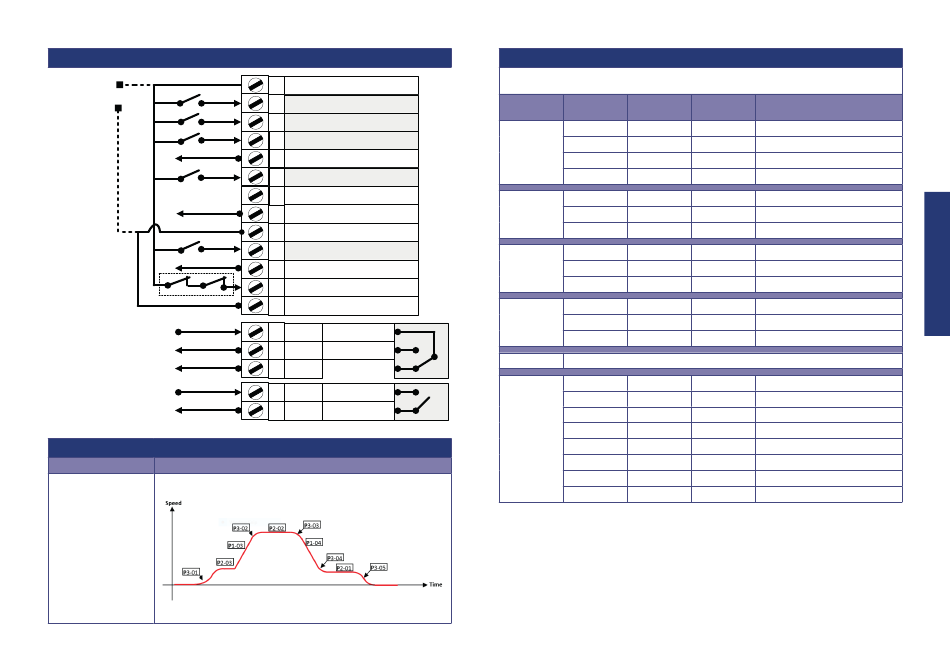

Control terminal connections (default)
Optional
+24Vdc
External
Power
Supply 0Vdc

Speed profile setup

Related Parameters
P1-03 (Accel ramp time)
P1-04 (Decel ramp time)
P2-01 (Levelling Speed)
P2-02 (Run Speed)
P2-03 (Intermediate
Speed)
P2-04 (Inspection Speed)
P3-01 (Accel start Jerk)
P3-02 (Accel end Jerk)
P3-03 (decel start Jerk)
P3-04 (decel end Jerk)
P3-05 (Stopping Jerk)
1 +24Vdc 100mA Output
Open = StoP
2
Closed = Run Up (Forward)
Open = StoP
3
Closed = Run Down (Reverse)
Open = Levelling Speed
4
Closed = High Speed
5 +10Vdc 10mA Output
Open = Terminal 4 Selection
6
Closed = Inspection Speed
7 0V
8 Drive Healthy (24Vdc Output)
9 0V
Open = Terminal 4 Selected Speed
10
Closed = Intermediate speed
11 Drive Running (24Vdc Output)
12 ST0 +
13 ST0 -
14 RL1-C Common
Motor Contactor
15 RL1-NO
Control
16 RL1-NC
17 RL2-A Common
Motor Brake
18 RL2-B
Control
Action

Digital input configuration parameter (P1-13)

The below table assumes the drive already has a direction command given i.e. Terminal 2 or 3 input
is high
Digital Analog
P1-13
Input 3 (T4) Input 1 (T6)
1 0
1
0 or 1 0
(Option 1)
0 or 1 1
Default
0 0
1 0
2
0 or 1 1
(Option 2)
0 0
1 0
3
0 or 1 1
(Option 3)
0 0
1 0
4
0 or 1 1
(Option 4)
0 0
5 (Option 5) Brake release monitoring function see 'Optidrive P2 Elevator User Guide'
0 0
1 0
0 1
6
(Option 6)
1 1
0 0
(Multispeed
Selection)
1 0
0 1
1 1
1= Input High 0 = Input Low
* If 0 the drive will trip on External trip or F-Ptc if a motor thermistor fitted and Ptc-th has been
selected in P2-33.
** If 0 drive will fast stop using deceleration ramp in time set in P2-25., if P2-25 is zero the drive will
coast to stop.
OPTIDRIVE elevator | Quick Start-up Guide | Version 1.0
Analog
Active Speed
Input 2 (T10)
0 P2-02 (HighSpeed)
1 P2-03 (Intermediate Speed)
0 or 1 P2-04 (Inspection Speed)
0 P2-01 (Levelling Speed)
*1 P2-02 (High Speed)
*1 P2-04 (Inspection Speed)
*1 P2-01 (Levelling Speed)
0 P2-02 (High Speed)
0 P2-04 (Inspection Speed)
0 P2-01 (Levelling Speed)
**1 P2-02 (High Speed)
**1 P2-04 (Inspection Speed)
**1 P2-01 (Levelling Speed)
0
P2-01
0 P2-02
0 P2-03
0 P2-04
1 P2-05 (Max 5.0Hz)
1 P2-06
1 P2-07
1
P2-08
