Summary of Contents for Monoprice 31055

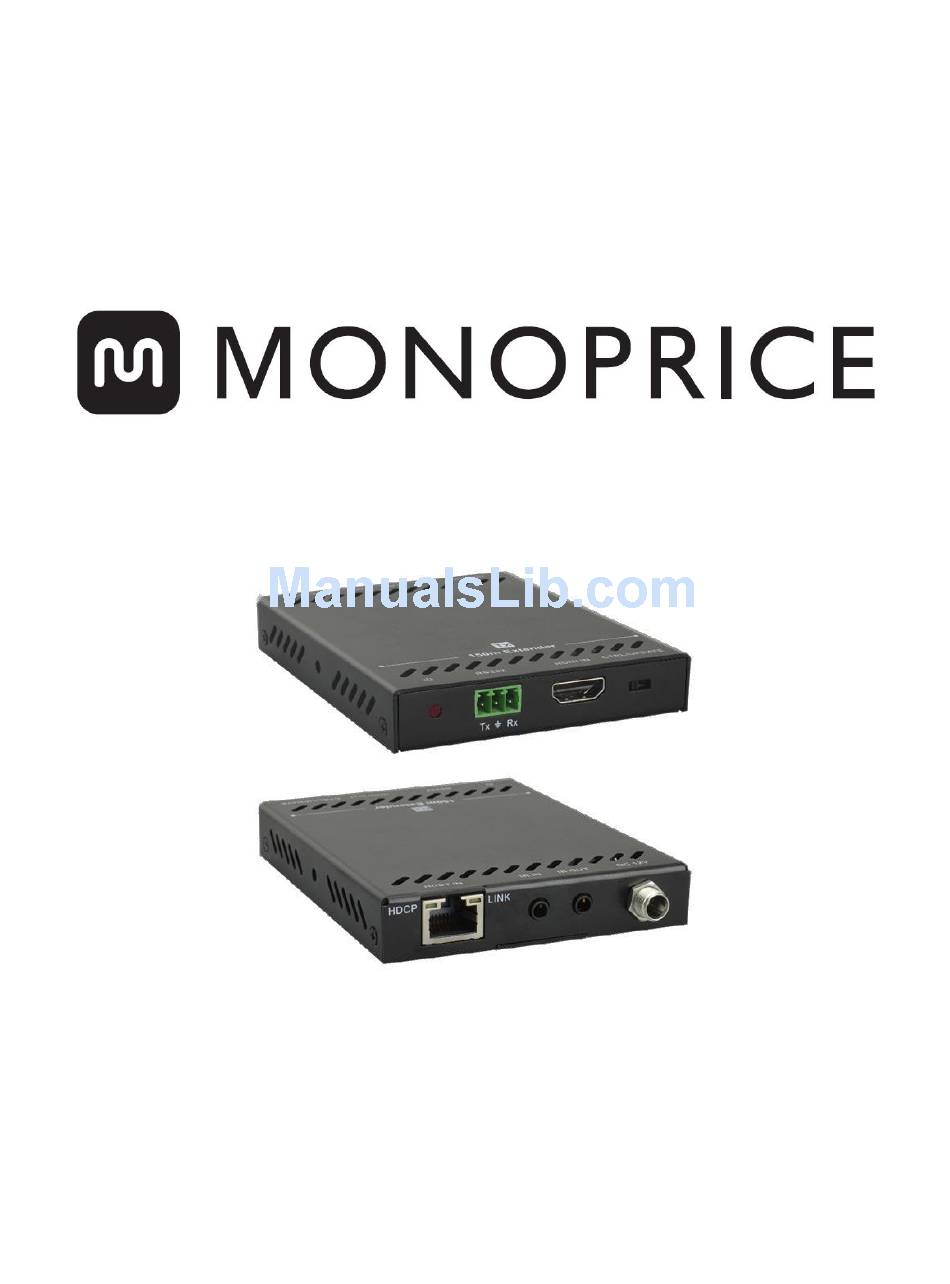

- Page 1 Blackbird™ HDBaseT™ Extender Kit P/N 31055 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 4: Package Contents

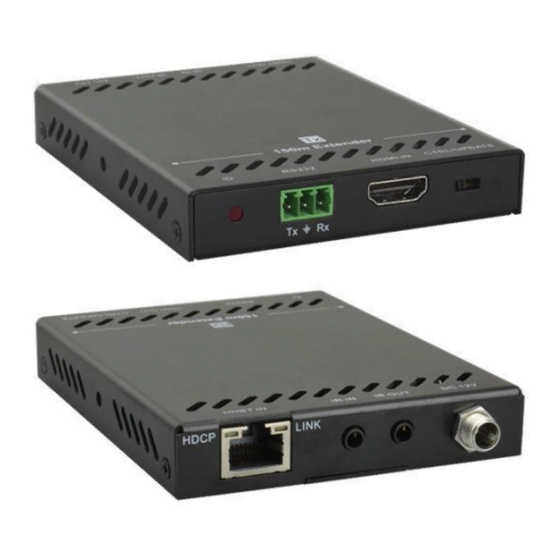

PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Blackbird™ HDBaseT™ transmitter 1x Blackbird HDBaseT receiver... - Page 5 5. HDBT OUT: RJ45 connector for a Cat6 Ethernet cable to connect the transmitter and the receiver. The LINK LED illuminates when there is a valid HDBaseT™ link between the transmitter and the receiver. The HDCP LED illuminates when the video contains HDCP content.
-
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM INSTALLATION 1. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Place or mount the transmitter and receiver in their intended locations. 3. Using a High Speed HDMI® Cable (not included), plug one end into the HDMI input on your display or projector, then plug the other end into the HDMI OUT connector on the receiver. -
Page 7: Technical Support
Congratulations, you have successfully installed your HDBaseT extender kit! TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 8: Specifications
4.8 oz. (135 g) Receiver Weight 4.9 oz. (140 g) Blackbird™ is a trademark of Monoprice Inc. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
