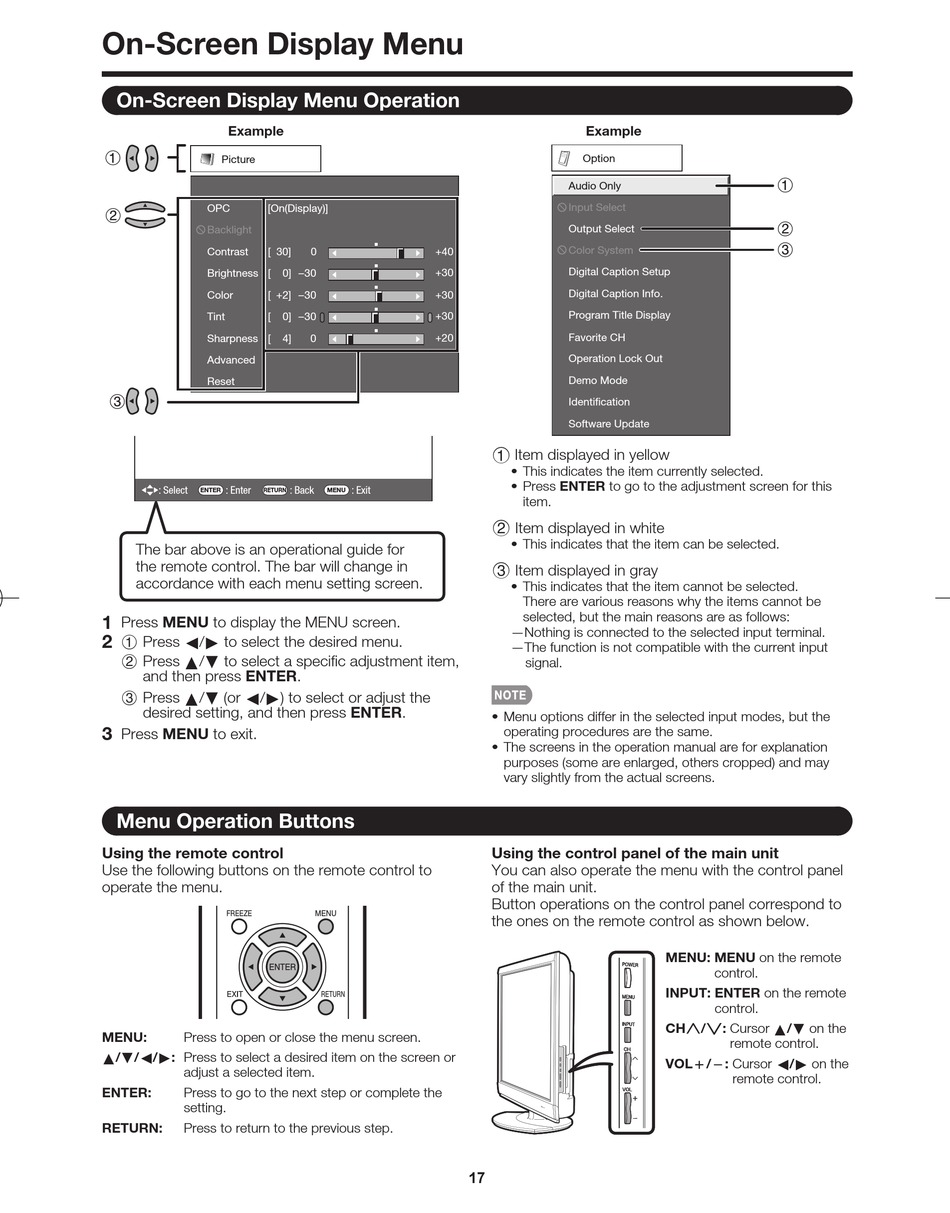

On-Screen Display Menu

On-Screen Display Menu Operation

Example
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
Reset
: Select
: Enter
ENTER
The bar above is an operational guide for
the remote control. The bar will change in
accordance with each menu setting screen.
1
Press MENU to display the MENU screen.
Press c / d to select the desired menu.
2
1
Press a / b to select a specifi c adjustment item,
2
and then press ENTER.
Press a / b (or c / d ) to select or adjust the
3
desired setting, and then press ENTER.
3
Press MENU to exit.

Menu Operation Buttons

Using the remote control
Use the following buttons on the remote control to
operate the menu.
MENU:
Press to open or close the menu screen.
a / b / c / d : Press to select a desired item on the screen or
adjust a selected item.
ENTER:
Press to go to the next step or complete the
setting.
RETURN:
Press to return to the previous step.
[On(Display)]
[ 30]
0
a30
[
0]
[ b2]
a30
a30
[
0]
[
4]
0
: Back
: Exit
RETURN
MENU
Example
Option
Audio Only
Input Select
Output Select
b40
Color System
b30
Digital Caption Setup
b30
Digital Caption Info.
b30
Program Title Display
b20
Favorite CH
Operation Lock Out
Demo Mode
Identification
Software Update
1 Item displayed in yellow
This indicates the item currently selected.
Press ENTER to go to the adjustment screen for this
item.
2 Item displayed in white
This indicates that the item can be selected.
3 Item displayed in gray
This indicates that the item cannot be selected.
There are various reasons why the items cannot be
selected, but the main reasons are as follows:
—Nothing is connected to the selected input terminal.
—The function is not compatible with the current input
signal.
Menu options differ in the selected input modes, but the
operating procedures are the same.
The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.
Using the control panel of the main unit
You can also operate the menu with the control panel
of the main unit.
Button operations on the control panel correspond to
the ones on the remote control as shown below.
17
MENU: MENU on the remote
control.
INPUT: ENTER on the remote
control.
: Cursor a / b on the
r
s
CH
/
remote control.
VOL k / l : Cursor c / d on the
remote control.
