Connecting to External Equipment

You can connect many types of external equipment to your TV like a Blu-ray disc player, DVD player, VCR, Digital
TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input source
from INPUT on the remote control unit or on the TV. (See page 15.)
CAUTION
To protect equipment, always turn off the TV before connecting any external equipment.
Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.

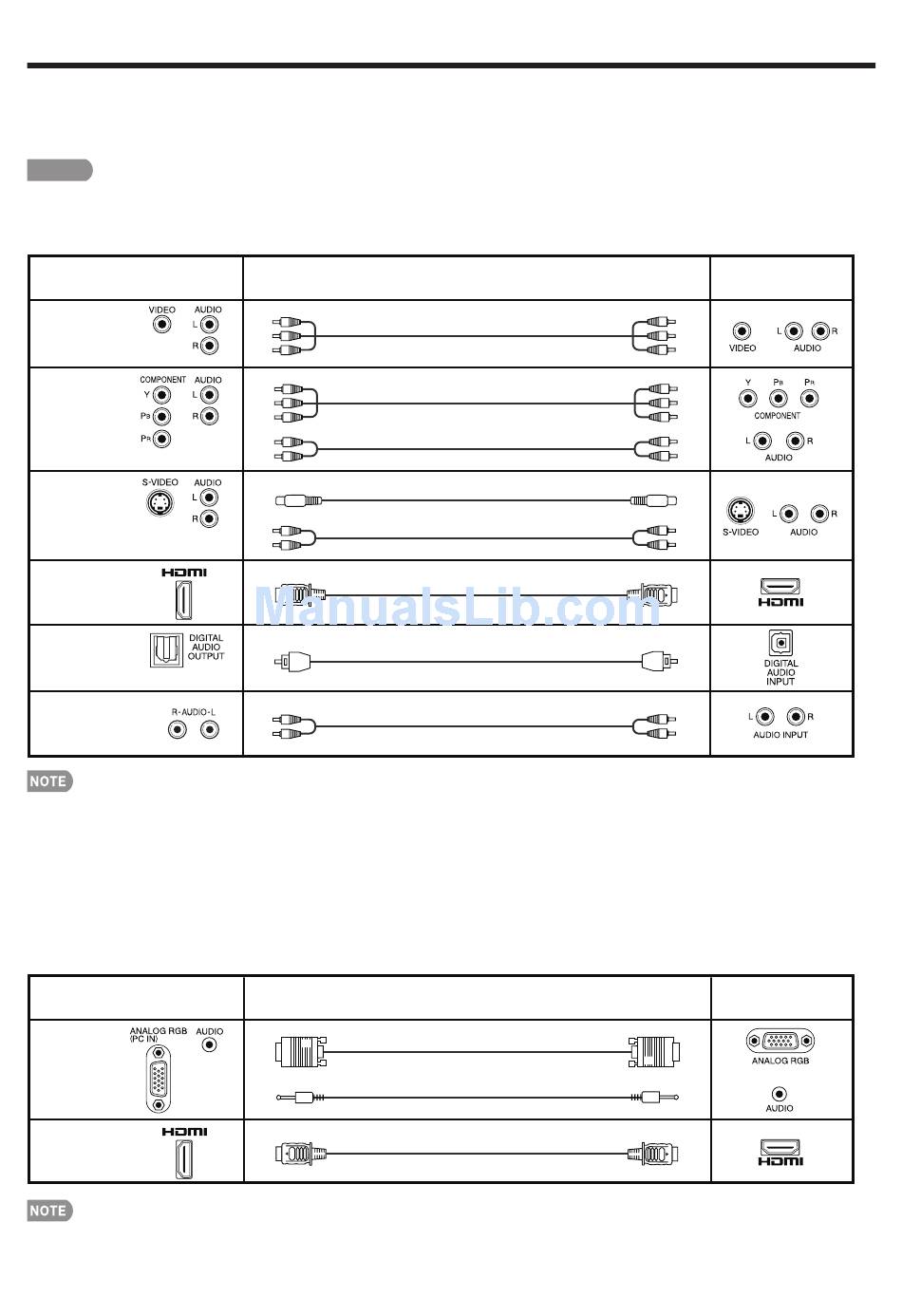

Connecting a Blu-ray disc player, DVD player, Digital TV STB (Air or Cable), VCR, game console or camcorder
Terminal on the TV
INPUT 3
INPUT 1 or 2
INPUT 2
INPUT 5, 6, 7 or 8
DIGITAL AUDIO
OUTPUT
AUDIO OUTPUT
*1 • The Component terminals take priority over the S-VIDEO (INPUT 2) terminal.
*2 • To enjoy the AQUOS 1080p display capability, connect your external equipment using a component cable and set the
equipment to 1080p output.
*3 • When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 6. When you input the audio
signal via the AUDIO terminal with INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 21.)
• To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player or other external equipment using an
HDMI-certifi ed cable and set the equipment to 1080p output.
*4 • Digital audio can only be output when receiving a digital broadcast.
Connecting a PC
Terminal on the TV
INPUT 4
INPUT 5, 6, 7 or 8
When connecting a PC to the INPUT 4, set "PC Audio Select" to "Input 4 (PC)". (See page 21.)
When connecting a PC to the INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 21.)
The HDMI terminals only support digital signal.
Refer to page 30 for a list of PC signals compatible with the TV.
Cable
AV cable (commercially available)
Component video cable (commercially available)
Audio cable (commercially available)
S-VIDEO cable (commercially available)
Audio cable (commercially available)
HDMI-certified cable (commercially available)
Optical fiber cable (commercially available)
Audio cable (commercially available)
Cable
RGB cable (commercially available)
Ø 3.5 mm stereo minijack cable (commercially available)
HDMI-certified cable (commercially available)
11
Terminal on external
equipment
*1
*2
*1
*3
*4
Terminal on PC
