  • Page 1 AMC2 Wiegand Extension AMC2-4WE Installation manual...

  • Page 3: Table Of Contents

    Power Supply via RS-485 Interface 4.7.3 Overview - Power supply/consumption RS-485 for extension modules Wiegand Interface for Card Readers 4.10 Connecting Relay Outputs 4.11 Connecting Analog Input Devices 4.12 Tamper Protection Operating Status Display of the AMC2 Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...

  • Page 4: En | Table Of Contents

    AMC2 Wiegand en | Table of Contents Extension Technical Data Appendices Connecting Diagrams Index 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...

  • Page 5: Safety Instructions

    If the unit has been exposed to water and/or inclement weather (rain, snow, etc.). – If the unit does not operate normally when following the operating instructions. Adjust only those controls specified in the operating instructions. Improper Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 6 10. Lightning - For added protection during electrical storms external lightning conductors can be installed. This prevents power surges from damaging the unit. 11. The units should be installed in locations with restricted access. 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...

  • Page 7: Safety Precautions

    Warning! Risk of fire Installation of the AMC2 device must comply with any local fire, health, and safety regulations. A secured door that may be part of an escape route from an area must be installed with: Install a fail-safe lock (A), so that the door will be released if power fails.
  • Page 8 Protect the hardware from electrostatic discharge by observing ESD instructions before unpacking of touching connectors of electronics. Always switch off power of the AMC2 device before modifying the installation. Do not connect or disconnect plug connectors, data cables, or screw connectors while power is on.

  • Page 9: Unpacking

    If any parts are missing, inform your customer service representative or a Bosch Security Systems salesperson. The shipping carton is the safest transport container for the unit. Store it and the other packaging material for future use. If the unit has to be sent back, use the original packaging.

  • Page 10: Important Information

    Bosch Security Systems retains all rights not expressly granted. Nothing in this license constitutes a waiver of Bosch’s rights under the U.S. Copyright laws or any other federal or state law. If you have any questions concerning this license, please, write...

  • Page 11: Internet

    Tips and shortcuts may also be included in such notes. Internet If you are interested in further information on this product or information on other products, please consult our website at http://www.boschsecurity.com. Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...

  • Page 12: Introduction

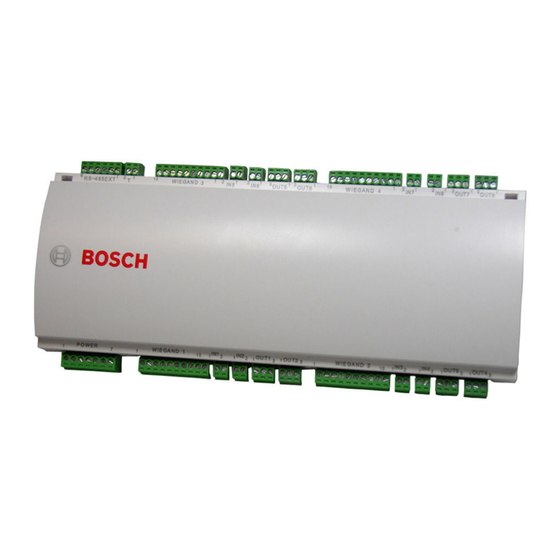

    The extension module AMC2-4WE is equipped with four Wiegand type reader-interfaces plus eight inputs and eight outputs. Hence with the AMC2-4WE it is possible to double the number of readers on an AMC2-4W from 4 to 8. Figure 3.1: The extension module AMC2-4WE The AMC2-4WE can not be deployed as an independent controller but only as an extension module for the AMC2-4W.
  • Page 13 AMC2-4WE, so that the number of inputs and outputs can grow up to 64. Notice! An AMC2-4WE provides signals only to the AMC2 to which it is connected. Signal transfer to another AMC2 is not possible. The signal settings and parametrization of the readers...

  • Page 14: Equipment Configuration

    Figure 3.2: Overview - Interfaces RS-485 extension module bus External tamper contact Connector for power supply Wiegand interfaces for up to 4 card readers Connectors for eight analog inputs Connectors for eight relay outputs 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 15 Extension Figure 3.3: Jumpers at the bottom side Jumper for setting either voltage free relay output (“dry” mode) or looped-in voltage from the AMC2 internal power supply (“wet” mode). Jumper: Equalization of potential between different systems and earth ground (shield) for the extension interface.

  • Page 16: Performance Characteristics

    If an external power supply is used, this should also guarantee an uninterruptable power supply (UPS). Example: Bosch power supply APS-PSU-60 (F.01U.282.970). System Overview The AMC2-4WE is connected between the access controller AMC2-4W and the various peripheral devices. 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 17 The minimum configuration consists of: – one PC with system software, – one AMC2 controller, – one AMC power supply, – one AMC enclosure. – The maximum configuration depends on the system software, Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 18 Each AMC2-4W controller can be extended with an AMC2-4WE extension module. The using of AMC2-4WE modules has no influence on the limit of the maximum of controllers in one system, because it is an extension to an AMC2-4W and not a controller.

  • Page 19: Installing

    The AMC2-4WE can be attached on a standard 35 mm (1.377 in.) mounting rail using a snap-in mechanism. Attach the AMC2-4WE into the upper edge of the mounting rail [1], then push down the device and snap it onto the rail by pushing it towards the back [2].

  • Page 20: Unmounting

    To remove the AMC2-4WE from a mounting rail, first remove all pluggable connectors. Push down the AMC2-4WE until the lower edge snaps out of the mounting rail [1]. Pull the lower end of the AMC2-4WE from the mounting rail [2].

  • Page 21: Opening The Case

    Notice! To open the AMC2-4WE, first remove all pluggable connectors. The AMC2-4WE case consists of a top cover mounted with a two-point snap-in closure on a chassis. To open the case, push down the two snap-ins with a screwdriver, then swing the cover down.

  • Page 22: Closing The Case

    Insert the hooks on the lower edge of the front cover into the lugs on lower edge of the plastic back cover [1]. Please ensure that the BOSCH logo is not upside-down. The upper edge of the front cover now aligns with the two-point snap-in closures on the upper edge of the back cover [2], and may thus be clicked gently into place.

  • Page 23: Cabling

    Cabling Notice! Risk of malfunction The cables used in the AMC2-4WE access control system are not prone to electrical interference. However, you should avoid routing cables close to heavy load switching cables and equipment. If this is unavoidable, cross the cable at right angles every 1 to 2 m (3 to 6 ft) to reduce interference.
  • Page 24 Critical condition! Install the power supply closer to the controller. Notice! These specifications apply to power supply, readers, relay outputs, and extension interface. Regarding inputs, specific voltage-drop values need to be taken into account. Refer to Connecting Analog Input Devices, page 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...

  • Page 25: Grounding And Shielding

    If the AMC2-4WE has its own power - as in the third example in Overview - Power supply/consumption, page 29 - the shield will be connected to pin 2 of the power supply connector - see Connecting Diagrams, page 48.

  • Page 26: Grounding For Extension Interface

    Jumper connects the internal ground of the AMC2-4WE to the ground of the RS-485 slave interface. Set Jumper A2 only at the first AMC2-4WE of a party line - like example four in Overview - Power supply/consumption, page 29. 2016-11 | AMC2-4WE |...

  • Page 27: Connecting Power Supply

    Refer to Connecting Diagrams, page 48 for a complete diagram. Figure 4.6: Location of the power supply connector Connect an external power supply (10 - 30 Vdc) for AMC2-4WE at pin 1 (positive) and pin 3 (0 V) of the pluggable screw connector.

  • Page 28: Power Supply Via Rs-485 Interface

    Extension 4.7.2 Power Supply via RS-485 Interface The power can also be supplied by the AMC2-4W. In this case power pins 1 and 2 should be connected, as well as data lines on pins 3 - 6. Figure 4.7: Interface for internal power supply...

  • Page 29: Overview - Power Supply/Consumption

    AMC2 Wiegand Installing | en Extension 4.7.3 Overview - Power supply/consumption Figure 4.8: Example configurations = AMC2-4WE = AMC2 I/O Extension board line = Power supply broken line = Data line Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 30 Table 4.1: Overview - power supply and power consumption Explanations for the table columns: Output power Power provided by the power supply. Own usage Power used by AMC2 device Available Power remaining for external devices 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 31 Hence Example 1 can be read as follows: Of the total incoming power (60VA) 5VA will be drawn by the AMC2 itself . This leaves 55VA to support external devices. 25VA of these 55VA can be used for constant load (e.g. a card reader) leaving 30VA for occasional peak usage (e.g.

  • Page 32: Rs-485 For Extension Modules

    | Installing Extension RS-485 for extension modules The AMC2-4WE is connected to the AMC2 controller using the RS-485 extension interface. This interface will also be used to connect further extension modules. Figure 4.9: Location of the RS-485 extension module bus Figure 4.10: Connection of an extension module to an AMC2...

  • Page 33: Wiegand Interface For Card Readers

    200 mA then it will require an external power supply. The AMC2-4WE provides four ports for connecting a maximum of 4 readers with Wiegand interfaces. Each interface is connected using a 10-pin pluggable screw connector (S2, S7, S14, and S19) - refer to Connecting Diagrams, page 48.

  • Page 34: Connecting Relay Outputs

    Wiegand reader interface . 4.10 Connecting Relay Outputs To operate locks or alarm systems, the AMC2-4WE has eight form C relay outputs. The outputs will be connected to the 3-pin pluggable screw connectors S5, S6, S10, S11, S17, S18, S22, and S23 - refer to Connecting Diagrams, page 48.
  • Page 35 AMC2 Wiegand Installing | en Extension Figure 4.13: Wet mode and dry mode of the AMC2 relay outputs Notice! Risk of damage to equipment To prevent damage to the relays note the following specifications. – the maximum switching current is 1.25 A –...
  • Page 36 Notice! Risk of damage to equipment Do not connect externally powered devices in wet mode. This can damage the AMC2-4WE. 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 37 (D 1) or wet (D 2) mode. Figure 4.15: Location of relay output jumpers (bottom side) Notice! The positions of the jumpers 1 and 2 are interchanged related to the corresponding interfaces. Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...

  • Page 38: Connecting Analog Input Devices

    Notice! Risk of damage to equipment Do not connect external power supply to the AMC2 inputs. When connecting a relay output to an AMC2 input use dry mode with potential-free contact - refer to Connecting Relay Outputs, page 34. Figure 4.16: Location of the analog input connectors The AMC2-4WE can also detect the wiring conditions ‘short...
  • Page 39 To detect the four states, the voltage drop in the connecting cable may not exceed special values. The following table shows the maximum values of permissible cable resistance depending on the used resistor combination. Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 40 1800 1900 Table 4.2: Maximum values of cable resistance per used resistor combination in Ohm Notice! We recommend using serial resistors (R ) no higher than 5K6 in order to obtain clear measurements. 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...

  • Page 41: Tamper Protection

    Installing | en Extension 4.12 Tamper Protection To protect the AMC2-4WE against unauthorized access and so prevent tampering with sensitive data, the AMC2-4WE provides an additional interface to connect external tamper contacts. This interface is a potential-free 2-pin pluggable screw connector marked with T.

  • Page 42: Operating

    Extension Operating Status Display of the AMC2 Because the AMC2-4WE has no display of its own, the AMC2 controller displays status information about the input and output settings of the AMC2-4WE. The selected display mode remains set until the next time the button is pressed.
  • Page 43 Extension Push Display (Example) Description Dig. I3: :::::::::::::::: MAC 0010174C8A0C Network device address (MAC) N AMC-1234-5678 Network name of the AMC2 I 192.168.10.18 IP-address of the AMC2 G 192.168.10.255 IP-address of the gateway (Version V 00.44 or higher) M 255.255.255.0 Subnetmask (Version V 00.44 or higher)
  • Page 44 Transfer rate: 9,6 kBit/s, no parity, 8 bit, 2 stop bit – Tamper contact for external enclosures Power supply 10 to 30 Vdc or via the AMC2-4W Power consumption AMC: 5 VA Peripheral devices: using the PSU-60 – up to 55 VA –...
  • Page 45 (W/H/D) 232 x 90 x 46mm (8.9 x 3.5 x 1.8 in) Weight approx. 0.4kg (0.9lb) Notice! The voltage drop from the power supply to the AMC2-4WE affects the AMC interfaces. The total drop must not exceed 2V! Notice! To determine the environmental impact of an installation, take into account the most extreme values of all participating devices.
  • Page 46 AMC2 Wiegand en | Technical Data Extension 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 47 AMC2 Wiegand Technical Data | en Extension Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 48 AMC2 Wiegand en | Appendices Extension Appendices Connecting Diagrams Figure 7.1: Connector blocks of the AMC2-4WE 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 49 Data 1 drain Shield orange green LED brown red LED yellow Beeper blue Hold violet Card Present Table 7.2: Wiegand interface AMC Notice! For reader settings refer to the respective reader manual. Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 50 Power supply for external devices (10V - 30V) Power supply for external devices (0V) Shield Data RxTx+ Data RxTx- Ground (PAG) Table 7.5: Host / Extension interface Tamper Contact, in Tamper Contact, out Table 7.6: External tamper contact 2016-11 | AMC2-4WE | Bosch Sicherheitssysteme GmbH...
  • Page 51 16, 33, 44 Wiegand, 33 resistor, 38 inputs, 14, 16, 38 interfaces extension, 44 tamper, 41 reader, 16, 33, 44 unmounting, 20 mounting, 19 opening, 21 outputs, 14, 16, 34, 44 Bosch Sicherheitssysteme GmbH 2016-11 | AMC2-4WE |...
  • Page 54 Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2016...
