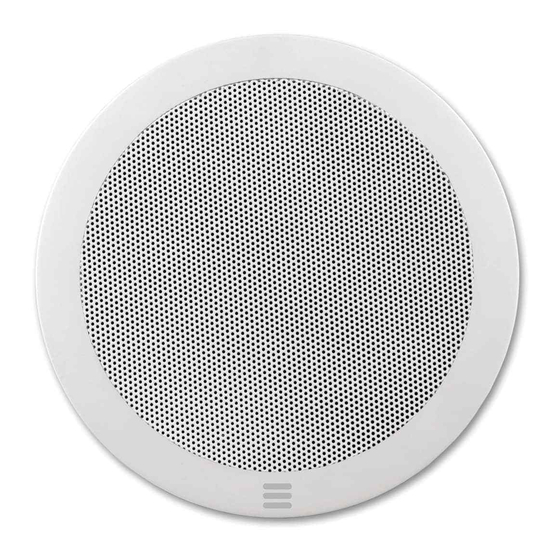

Summary of Contents for APART CM5EH

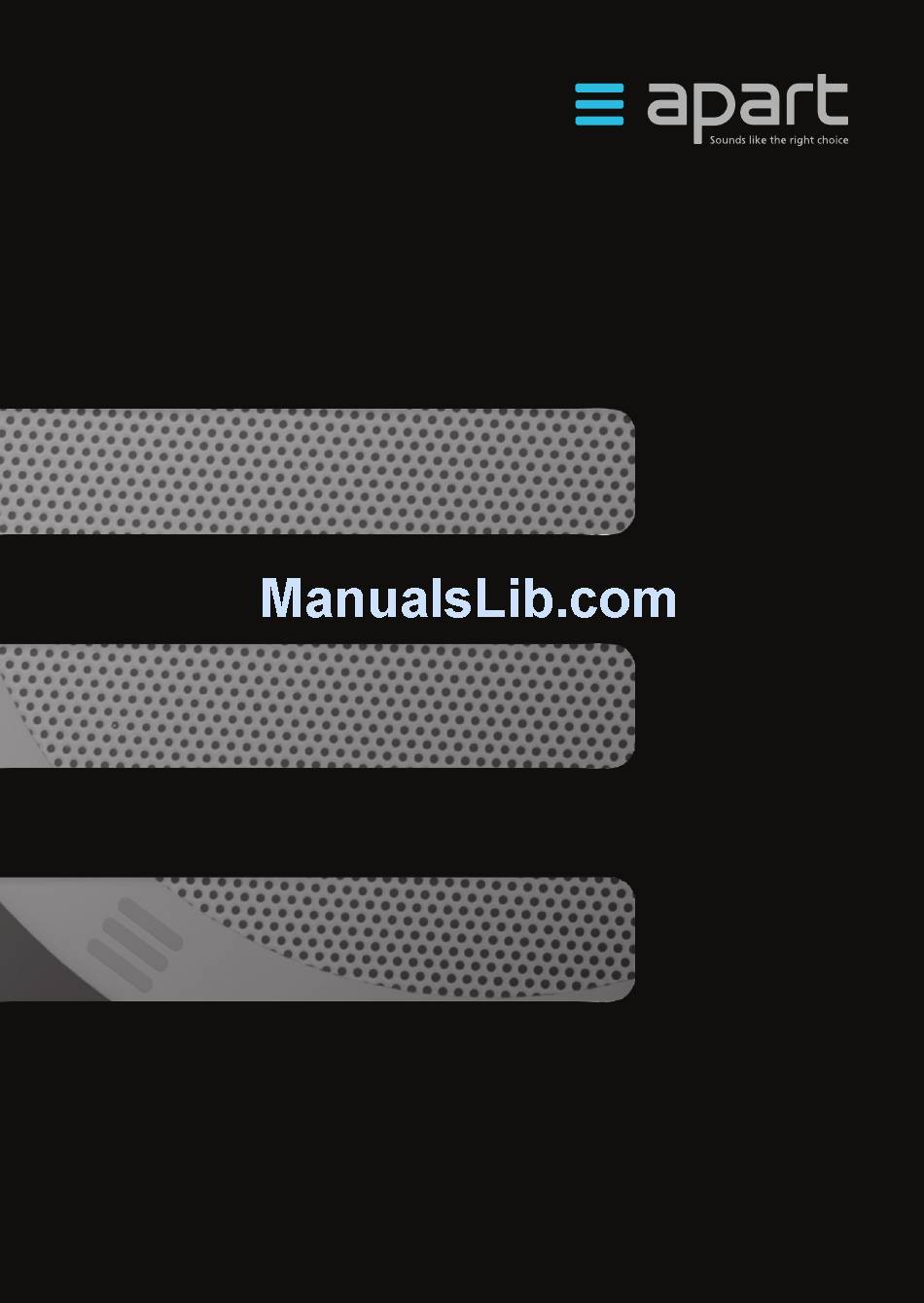

- Page 1 CM5EH Instruction manual...
- Page 3 CM5EH Instruction manual CM5EH manual...
- Page 4 • For 100 Volt use, the CM5EH is equipped with a high quality 3/6 Watt 100 Volt transformer. Therefore, the speaker can be used in almost every application requiring BGM sound levels.
-
Page 5: Safety Precautions
• Keep this manual for future reference. • When making the hole in your mounting panel to mount the APart CM5EH speaker, make sure there is sufficient clearance behind the panel (no obstructions like A/C channels, power lines etc). •... - Page 6 CEILING SPEAKER • Please check the the packaging for any kind of damage upon reception of the goods. If the packing is damaged, please contact your local dealer before opening it. • Please note that this speaker is meant for indoor use only! Recommended applications •...
- Page 7 CM5EH Instruction manual Connecting the speaker to a 100 Volt speaker line The speaker can be connected to 100 Volt speaker lines and has a power of 3 or 6 Watts. Select 3 or 6 Watts, according to the application. Never connect the 3 and 6 Watt wires simultaneously! Transformer wires are color-coded: Black = common.
- Page 8 CEILING SPEAKER Connecting the speaker to a Low-Z amplifier First, disconnect the red and black wires from the transformer to the speaker interconnection: Connect the Low-Z speaker wire to the free end of the connector. Black wire = common (ground), red wire is speaker + wire. The impedance of the speaker is 8 ohms.
-
Page 9: Mounting The Loudspeaker
CM5EH Instruction manual Mounting the loudspeaker The loudspeaker is very easy to install, due to the simple mounting system which does not require any tools, with 2 hidden spring loaded clamps. Open the clamps with 2 hands, carefully slide the speaker in place and release the clamps while positioning the speaker in the middle of the cut-out. - Page 10 CEILING SPEAKER Removable grille Fixing type spring loaded clamps IP classification Dimensions outside Ø 187 mm Dimensions cutout Ø 160 mm Mounting depth 45 mm Total depth including mounting 50 mm frame and grille Speaker weight 0.5 kg...
-
Page 11: Warranty Info
Instruction manual Warranty info Apart-Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase. - Page 12 CEILING SPEAKER Notes...
- Page 14 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
