Summary of Contents for APART COLS41

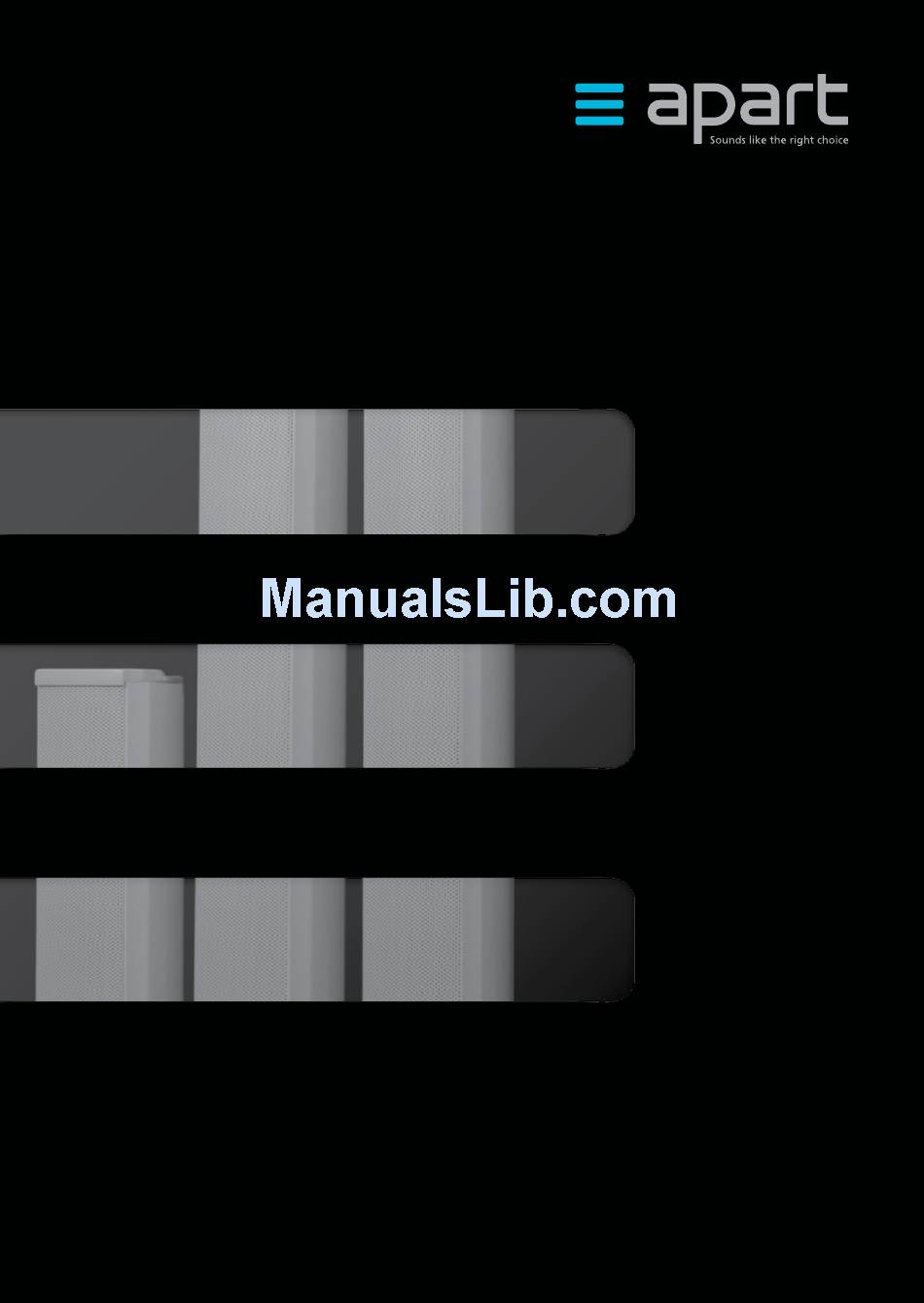

- Page 1 Column Series Instruction manual...
- Page 3 Column Series Instruction manual Column loudspeakers...
-
Page 4: Safety Instructions

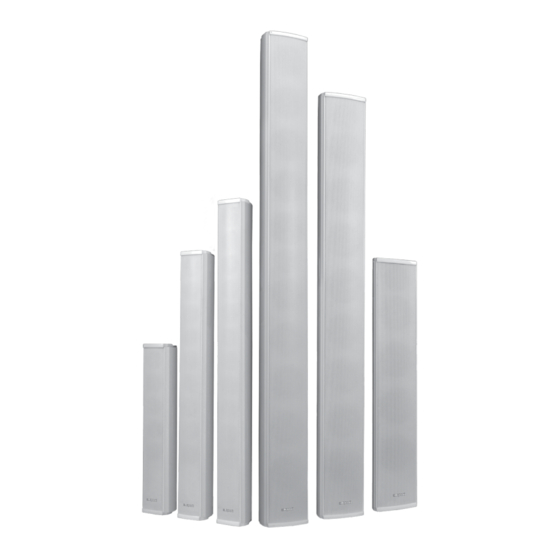

Column cabinet loudspeakers Safety instructions • Keep this manual for future reference. • Take care of your speaker wires, they should be free of damage. Damaged speaker wires might result in poor sound quality and can damage amplifiers. • Only use accessories specified by the manufacturer •... - Page 5 Column Series Instruction manual Introduction The Apart COL series speakers are more than just nice looking columns speakers: COL series speakers have been designed as highly effective line array speakers, featuring excellent vertically controlled directivity, wide horizontal directivity, high sensitivity and high power handling.
-
Page 6: Features And Benefits
Apart Audio. The warranty only concerns the spare parts and not the involved labor, transportation or any other costs. The product must be returned in the original packaging with the proof of purchase by an Apart Audio authorized reseller. -
Page 7: Installation
Column Series Instruction manual Installation Both 100 (70) volt and low impedance (Lo-Z) connections provided increased installation flexibility. 100 (70) V line with several transformer power taps as well as low impedance connectors hidden inside the cabinet. To access the connector, open the cabinet: remove the two philips screws at the bottom of the enclosure,... - Page 8 Column cabinet loudspeakers Installation Mounting these speakers has never been easier. An adjustable stainless steel mounting bracket with extension is included in the packing. The extension piece can be used to mount the speakers under an angle. Attach the brackets according to the picture: you can mount the speaker under a certain angle from the wall by extending the top bracket with the supplied bracket extender.
-
Page 9: Connecting The Loudspeaker
Column Series Instruction manual Connecting the loudspeaker Colour code internal connector Low impedance applications: Common: black Lo-Z connection: white 100 volt applications: Common: black Brown: DO NOT USE! Highest power tap: red Medium power tap: yellow Low power tap: green 70 volt applications: Common: black Highest power tap: brown... -
Page 10: Technical Specifications
Column cabinet loudspeakers Technical specifications model name COLS41 COLS81 COLS101 full range woofers 4 x 2” 8 x 2” 10 x 2” tweeter 1 x 1” 1 x 1” 1 x 1” 100V transformer power tabs (W) 20 - 10 - 5... - Page 12 Apart Audio nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
