Asco 4000 series Operator's Manual

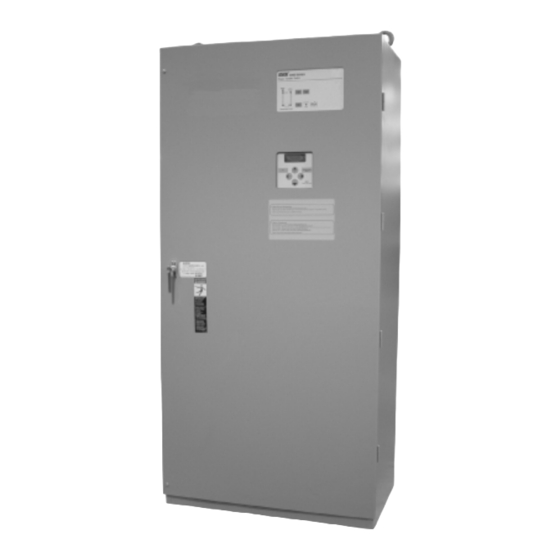

Automatic open-transition transfer switches d–design 30–230a, j–design 260–600a, h-design 800–1200a, g-design 1600–4000a, f-design 4000a
Hide thumbs Also See for 4000 series:
Table of Contents

Advertisement

Quick Links

Operator's
Manual
DANGER is used in this manual to warn of a
hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING is used in this manual to warn of a
hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION is used in this manual to warn of a
hazardous situation which, if not avoided, could
result in minor or moderate injury.
ASCO POWER TECHNOLOGIES CANADA PO Box 1238, 17 Airport Road, Brantford, Ontario, Canada N3T 5T3
Automatic Open-Transition Transfer Switches
D-design 30-230A, J-design 260-600A,
H-design 800-1200A, G-design 1600-4000A, F-design 4000A
Florham Park, NJ 07932-1591 USA
Call 1 800 800-2726 (ASCO) for sales or service
4000 Series ATS
Refer to the outline and wiring drawings provided with your
4000 Series ATS for all installation and connection details
and accessories.
Refer to Group 5 Controller User's Guide 381333-126 for
ATS status display messages, time delays, pickup &
dropout settings, and adjustments.
An experienced licensed electrician must install the ATS .
Each automatic transfer switch contains a rating label to
define the loads and fault circuit withstand / closing ratings.
Refer to the label on the transfer switch for specific values
Do not exceed the values on the rating label.
Exceeding the rating can cause personal injury
or serious equipment damage.

TABLE OF CONTENTS

Removing the Shipping Skid, Supporting
Foundation, Mounting, Testing Power
Conductors,
Boxes, Bus Connections, Controller Ground,
Harnesses, Engine Starting & Auxiliary Circuits

Rating Label

381333-270 D
www.ascopower.com
page
1
2
3-7
3
4
5
6-9
6
8
9
10-11
10
11
12
