160
MPI-540 – USER MANUAL


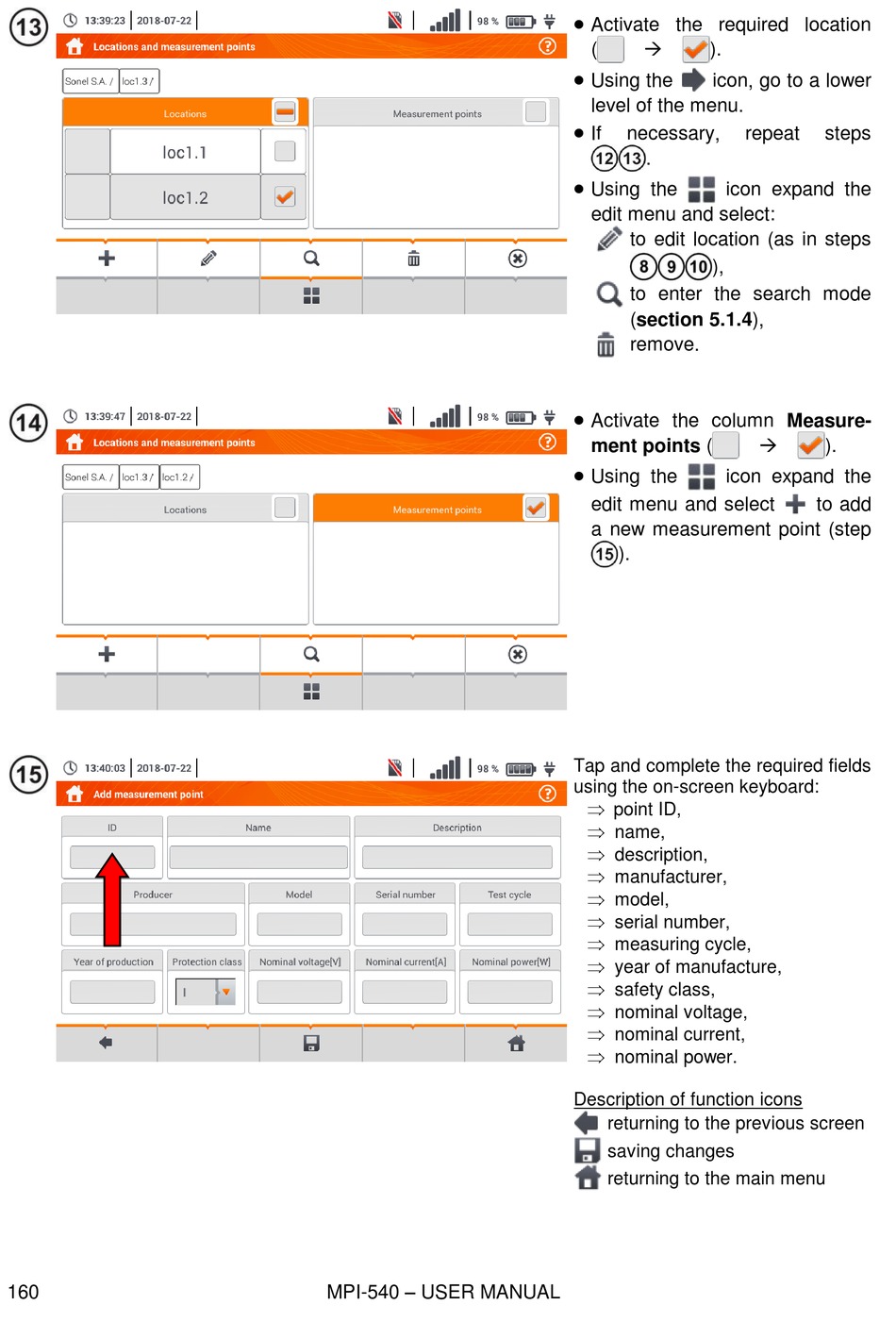

Activate the required location

( ).

Using the icon, go to a lower
level of the menu.

If necessary,
.

Using the icon expand the
edit menu and select:
to edit location (as in steps
),
to enter the search mode
(section 5.1.4),
remove.

Activate the column Measure-

ment points (

Using the icon expand the
edit menu and select
a new measurement point (step
).
Tap and complete the required fields
using the on-screen keyboard:
 point ID,
 name,
 description,
 manufacturer,
 model,
 serial number,
 measuring cycle,
 year of manufacture,
 safety class,
 nominal voltage,
 nominal current,
 nominal power.
Description of function icons
returning to the previous screen
saving changes
returning to the main menu
repeat steps
).
to add
