Kit content

4.1

Hardware

The development kit contains the following:
•
®
2 x SmartRF 04EB
•
2 x CC2510EM evaluation modules
in the CC2510-CC2511DK
•
2 x CC1110EM433 and
2 x CC1110EM868-915 evaluation
modules in the CC1110-CC1111DK
•
Antennas for the appropriate
frequency range
•
1 x USB dongle
•
2 x USB cables
•
1 x USB extension cable
•
1 x 10-wire flat cable for using
®
SmartRF 04EB as emulator for
external target systems
•
1 x SOC_DEM System on Chip
debug plug-in board
•
Quick start guide
The SmartRF04DK Development Kit includes a number of functions and applications that
allows quick testing of the RF interface and peripherals of the chip.
•
Evaluate the SmartRF
range testing.
•
®
Use SmartRF
configured to measure sensitivity, output power and other RF parameters.
•
Prototype development. The SmartRF04DK includes a USB interface that can be
used as emulator interface for the CC1110/CC2510. All CC1110/CC2510 I/O ports
are available on pin connectors on the edge of the board to allow external
applications easy access to the CC1110/CC2510. These connectors are also
compatible with logic analyser probes for easy debugging.
®
04 products. Right out of the box, the kit can be used for
Studio to perform RF measurements. The radio can be easily
Page 5 of 31
CC1110/CC2510
®

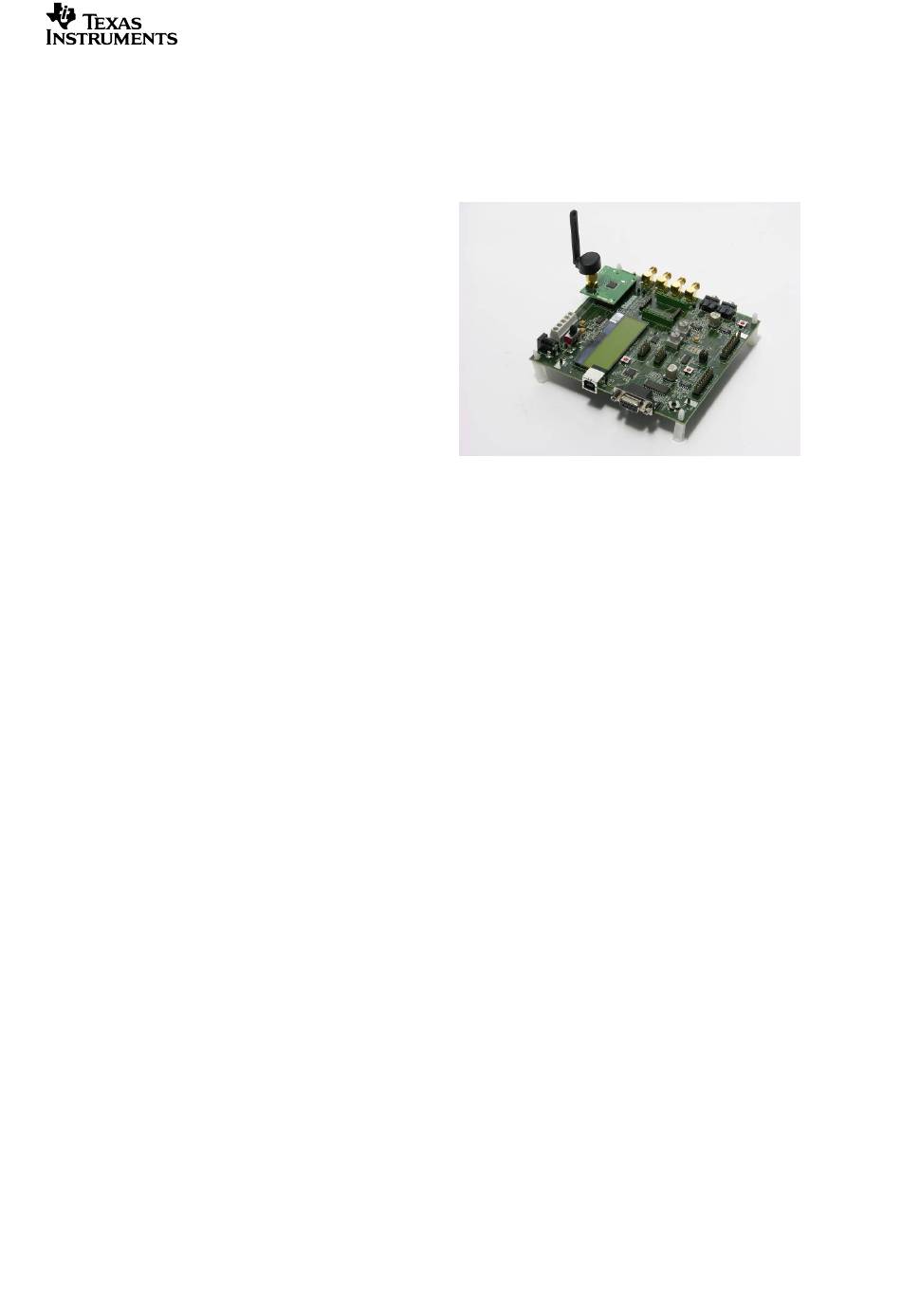

SmartRF 04EB with EM
