Robot Battery Charger - Robotronics Vehicle Robot Operating Manual

The charger supplied with the robot is designed to both recharge your battery, and extend your
battery's life. It produces 12 Volts DC at a full 6/3 Amps. It will charge the battery in about 8-12
hours depending on how long you have used the robot. After the battery is charged, the green
LED will come on and the battery is ready to use. At this point the charger is charging at a
FLOAT or maintenance rate. At this rate you can leave the charger connected for extended
periods of time.
Robots with recharge jack: Certain robots have a recharge jack on the body for recharging. If
your robot does, then the on-off switch will have a recharge position also.

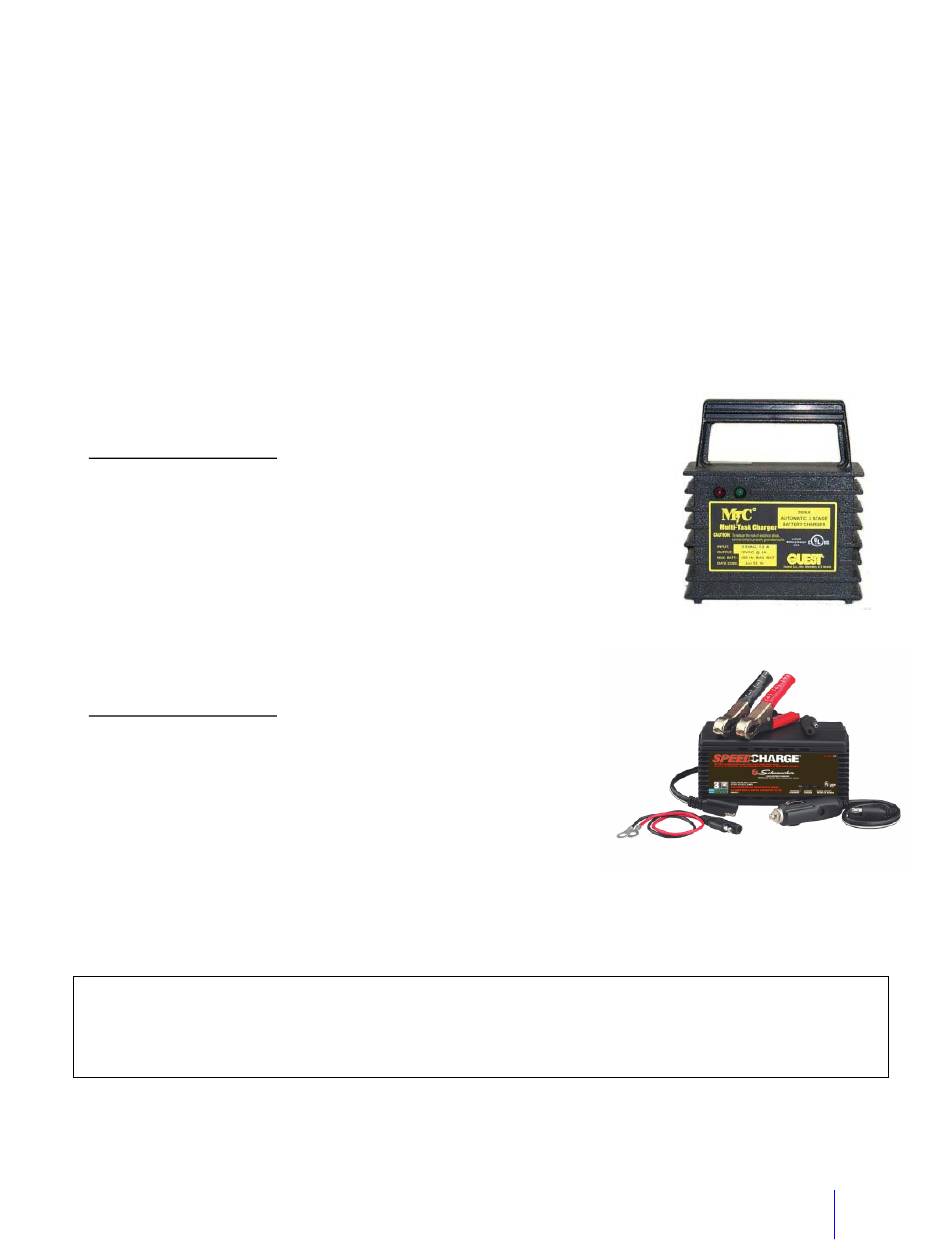

Charge Pro Model 2606A 6 Amp Battery Charger
Status Indicating Lights
Red on-The battery is discharged and is being recharged at the
maximum 6 Amp rate of the charger (stage 1).
Red and green both on-The battery is charging at the stage 2 rate of
1.5 to 5 Amps.
Green on-Your battery is charged and ready to use. It is now on float
charge (stage 3).
Schumacher 3 Amp Battery Charger
Status Indicating Lights
Amber- Charging
Green- Charged and is now in float charge.
Red- Check battery. The charge clips may be on wrong or
the battery may be bad.
Personal Safety Precautions
When charging, a lead acid battery gives off hydrogen gas. The Gel type battery is a lead acid
battery with pressure relief type vents. Although it only gives off a small percentage of the gas
that a wet lead acid battery does, the following precautions should be observed:
1. Connect the charger clips to the battery first, then connect the cord to an outlet.
2. Warning: Battery chargers get hot during operation and must have proper ventilation. Do
not set the charger on flammable materials like carpeting, upholstery, paper, cardboard,
etc.

Robot Battery Charger

Warnings
HAZARD OF EXPLOSIVE GAS MIXTURE
