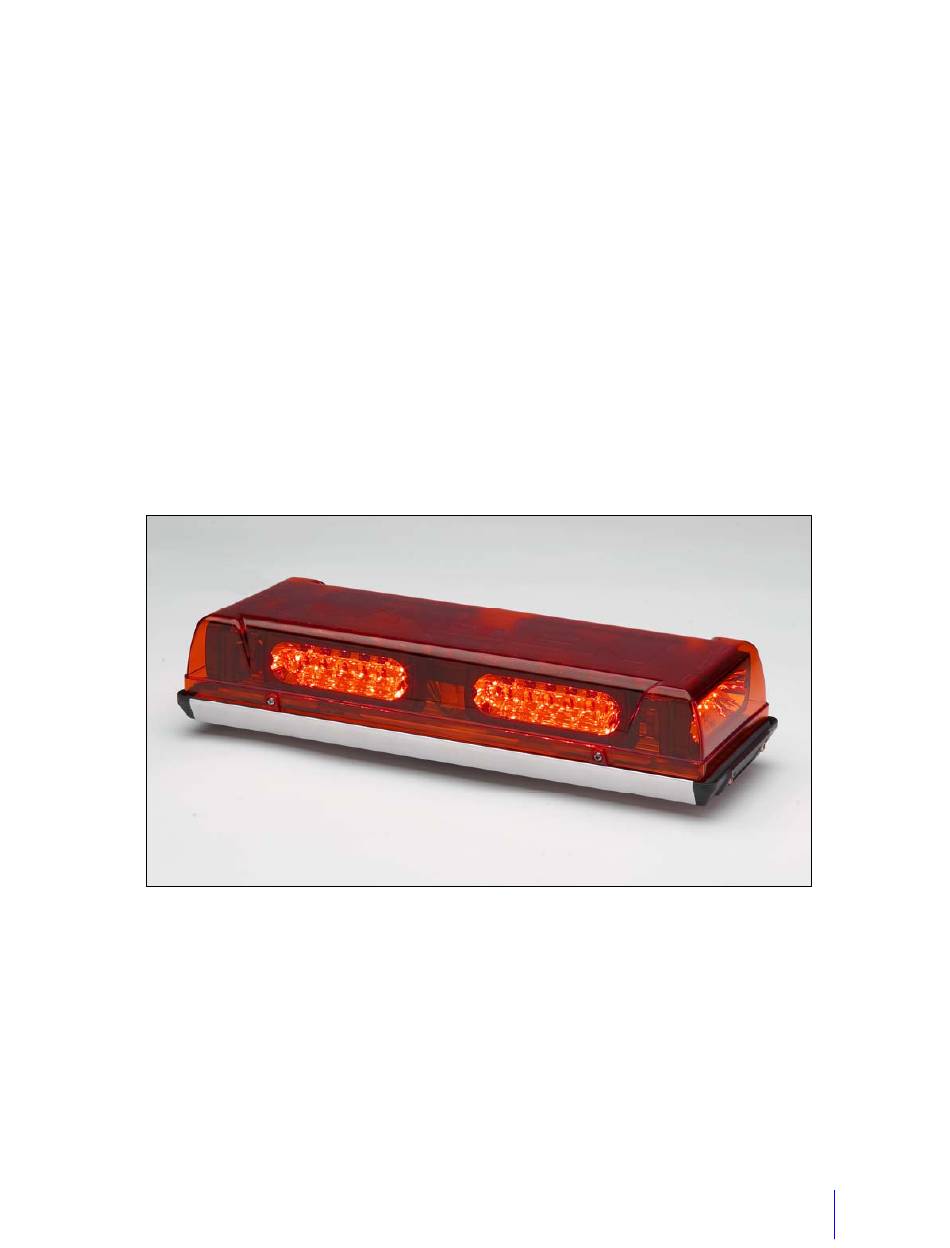

LED Light Bar
This is an optional feature available on certain robots.
The flashing pattern can be changed by pushing a switch that is located in the seat
area of robots with a character. It is on the seat back to the right of the character driving
the robot for Patches and Sparky. On K.C. Cruiser and McGruff Cruiser, it is just below
the windshield on the right hand side. On other robots open the rear door and it is on
the back right side of the eye plate.
To change the pattern: To cycle forward to the next pattern; push the button for less
than 1 second and release. To cycle back to the previous pattern, push the button for
more than 1 second and release. If you keep going forward you will cycle back around
to the first pattern. There are about 40 patterns including a constant on.
