EZ connector
Crossing Arm metal bracket
Crossing Arm Gate Plastic Only
Crossing Arm
The same servo signal that opens the stop arm will open the crossing arm. The signal comes
from the same place on the main board and then continues on to the 5 Volt Isolation board

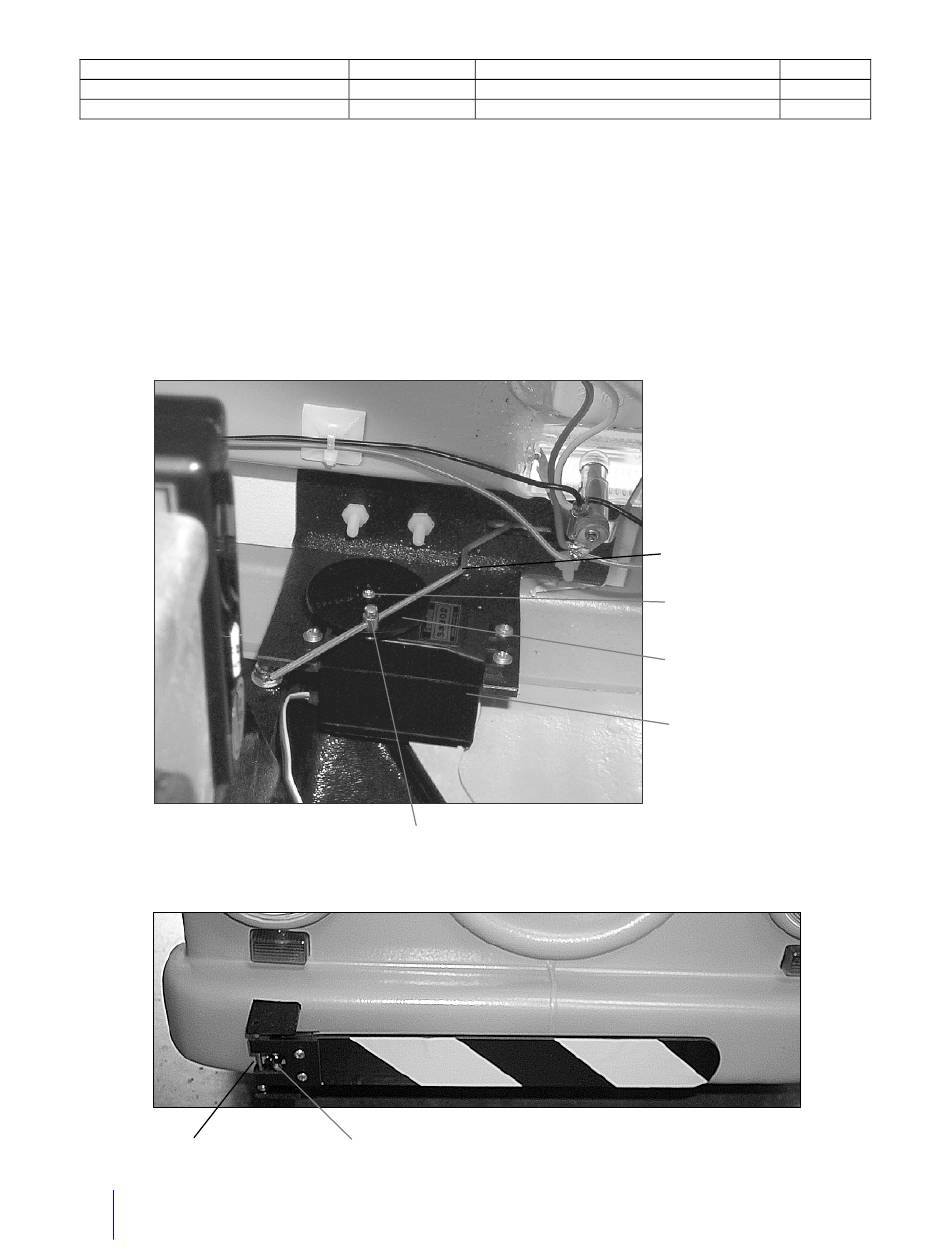

before it goes to the servos. The crossing arm mechanical parts include the bracket, servo arm,
rod, ball links, and set screw as shown in the diagram below. To adjust the pull in tension and
the out position of the arm, loosen the set- screw on the rod and move the position of the arm
accordingly. Make sure that the arm does pull in tightly against the bumper, so that it does not
move out at all when driving the robot.
Caution: Do not move the robot when the crossing arm is in the open position.
Pivot rod
40
791121
930402
Crossing Arm with Ball and Pivot Rod
700409
E-Z connector/set screw
Loosen this set screw to
change how tight arm pulls in.
4-40 Ball Link
4-40 Threaded Rod End
791144
500405
4-40 Threaded Rod End
Servo Arm Set Screw
(M2.5 x 0.45 x 6mm Phillips
Pan Head Machine Screw)
Servo Arm
Crossing Arm Servo
