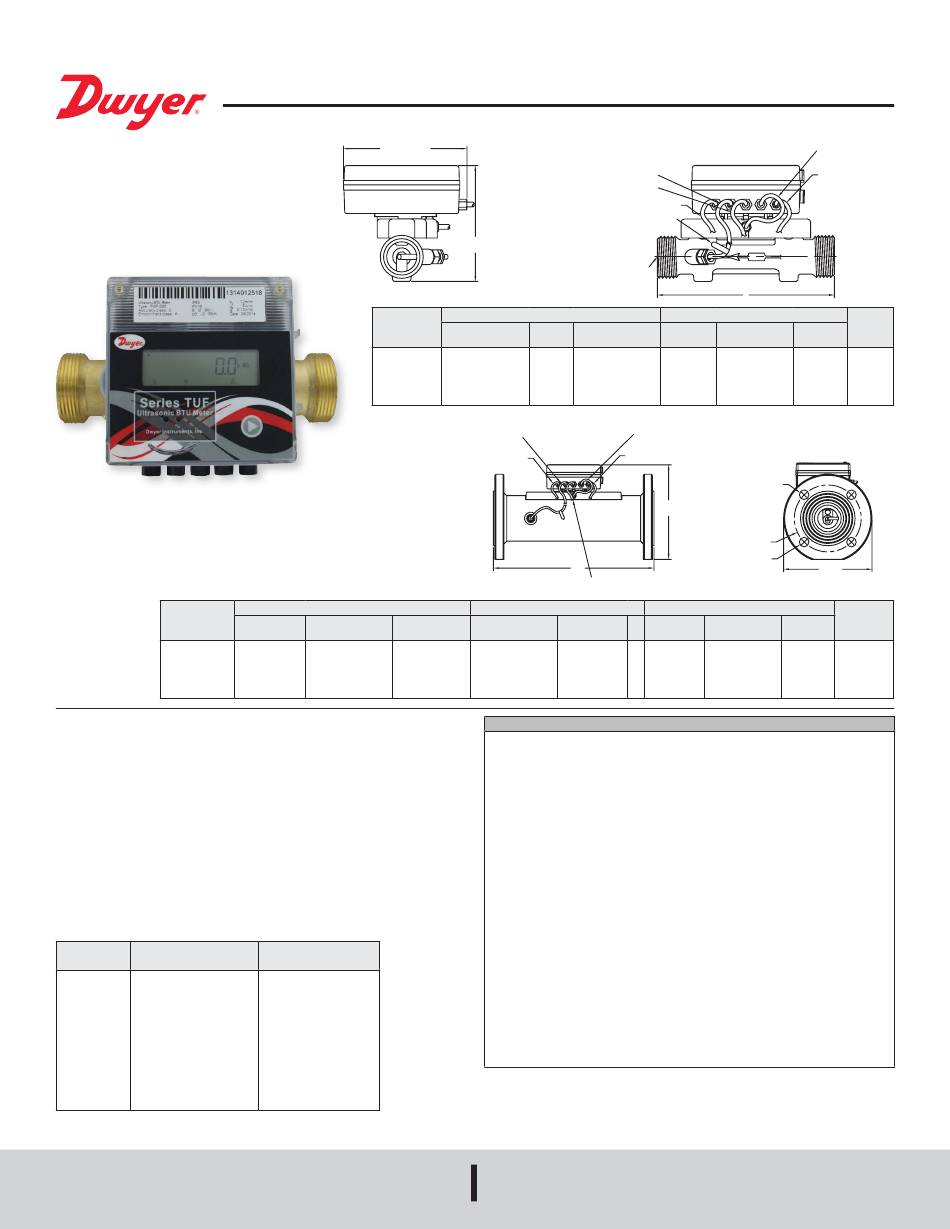

Dwyer Instruments TUF series Specifications-Installation And Operating Instructions

Series TUF Ultrasonic Energy Meter
Specifications - Installation and Operating Instructions
Model
TUF-500-XX
TUF-650-XX
TUF-800-XX
TUF-1000-XX
TUF-1250-XX

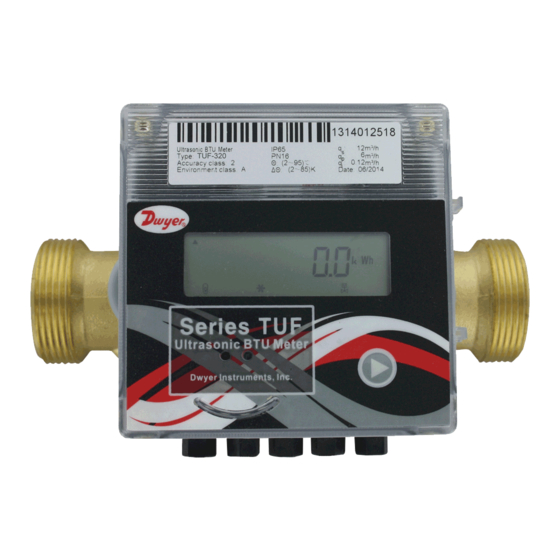

The Series TUF Tennant Ultrasonic BTU Flowmeter is a MID/EN1434 approved
highly accurate and stable energy meter. It utilizes ultrasonic technology to measure
heating and cooling energy consumption. The Series TUF incorporates a flowmeter,
temperature meter, and a calculator into a single, compact unit. The size and lack of
moving parts means the Series TUF requires minimal maintenance. The 8-digit LED
display enables easy reading of the meter's recorded values; including temperature,
flow-rate, energy consumption, etc. These features make it ideal for installation on
chillers, boilers, and individual apartment piping. With the optional couplings it is
capable of being used with either NPT or BSPT pipe sizes. It is the perfect meter for
tenant billing applications.
FEATURES
• Lower maintenance costs with local parameter display and no moving parts
• Serial communication output allows for easy transfer of data
• Flow and temperature monitor in one unit eliminates the need for multiple units
Process
Model Connection
TUF-150-XX G-3/4
TUF-200-XX G1
TUF-250-XX G1-1/4
TUF-320-XX G1-1/2
TUF-400-XX G2
TUF-500-XX GB9119 Flange
TUF-650-XX GB9119 Flange
TUF-800-XX GB9119 Flange
TUF-1000-XX GB9119 Flange
TUF-1250-XX GB9119 Flange
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
4-1/4
[108.00]
Model
TUF-150-XX
TUF-200-XX
TUF-250-XX
TUF-320-XX
TUF-400-XX
4´ FLOW PIPE TEMP SENSOR
[2 COMMUNICATION, 2 POWER]
Dimensions in [mm]
L ØD H
7-7/8 [200] 6-1/2 [165.00] 9-27/32 [250]
7-7/8 [200] 7-9/32 [185.00] 10-7/16 [265]
8-55/64 [225] 7-7/8 [200.00] 11-1/32 [280]
9-27/32 [250] 8-21/32 [220.00] 12-13/64 [310]
9-27/32 [250] 9-27/32 [250.00] 12-63/64 [330]
Corresponding
Pipe Fitting
1/2˝ NPT or BSPT
3/4˝ NPT or BSPT
1˝ NPT or BSPT
1-1/4˝ NPT or BSPT
1-1/2˝ NPT or BSPT
2˝ DN 50 PN 16 Flange
2-1/2˝ DN 65 Flange
3˝ DN 80 Flange
4˝ DN 100 Flange
5˝ DN 125 Flange
4´ FLOW PIPE TEMP SENSOR
4´ RETURN PIPE TEMP SENSOR
4´ 4-CORE WIRE
[2 COMMUNICATION, 2 POWER]
H
THREAD
Dimensions in [mm]
L D H
4-21/64 [110.00] G3/4B 3-31/32 [101.00]
5-1/8 [130.00] G1B 3-31/32 [101.00]
6-19/64 [160.00] G11/4B 4-11/64 [106.00]
7-3/32 [180.00] G11/2B 4-29/64 [113.00]
7-7/8 [200.00] G2B 4-49/64 [121.00]
4´ 4-CORE WIRE
L
4´ RETURN PIPE TEMP SENSOR
ØD1 ØD2
4-59/64 [125.00] 45/64 [18.00]
5-45/64 [145.00] 45/64 [18.00]
6-19/64 [160.00] 45/64 [18.00]
7-3/32 [180.00] 45/64 [18.00]
8-17/64 [210.00] 45/64 [18.00]
SPECIFICATIONS
Service: Clean, compatible liquids.
Wetted Materials: Brass and 316L SS.
Range: See chart.
Display: 8-digit LED.
Accuracy: BTU: EN1434/CJ128 Class 2; Flow: ±(2+(0.02 Qp / Q))%; Temperature:
0.18°F (±0.1°C).
Power Requirements: 24 VDC or 3.6 V ER26500 lithium metal battery, user
supplied and installed, battery acts as back-up if power is lost.
Power Consumption: 1 W.
Temperature Limits: Ambient: 41 to 131°F (5 to 55°C); Process: 36 to 203°F (2 to
95°C).
Humidity Limit: <93%.
Pressure Limits: 232 psi (16 bar) for DN15 to DN40; 362 psi (25 bar) for >DN50.
Pressure Drop: <1.5 psi (10 kPa).
Process Connection: See chart.
Serial Communications: Modbus
Enclosure Rating: IP65.
Enclosure Material: Plastic.
Repeatability: Flowmeter: 1%.
Electrical Connections: 3 ft (0.91 m) 4x0.2 mm2 cable with terminal block.
Flow Direction: Unidirectional.
Mounting Orientation: Horizontal or vertical.
Weight: See chart.
Agency Approvals: CE.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin F-TUF
DNXX
2X D
L
Flow Rate GPM [LPM]
Max Flow Nominal Flow Min Flow
(Qs) Range (Qp) (Qi)
13 [50] 6.6 [25] 0.1 [0.5]
22 [83] 11 [42] 0.2 [0.8]
31 [117] 15 [58] 0.3 [1.2]
53 [200] 26 [100] 0.5 [2]
88 [333] 44 [167] 0.9 [3.3]
2.8´ WATER-IN FLOW SENSOR
2.8´ WATER-OUT FLOW SENSOR
´N´ NO. OF HOLES
[SEE TABLE]
H
ØD1 B.C.
ØD2
Flow Rate GPM [LPM]
Max Flow Nominal Flow Min Flow
N (Qs) Range (Qp) (Qi)
4 132 [500] 66 [250] 0.7 [2.5]
4 220 [833] 110 [417] 1.1 [4.2]
8 352 [1333] 176 [667] 1.8 [6.7]
8 528 [2000] 264 [1000] 2.6 [10]
8 881 [3333] 440 [1667] 4.4 [17]
® RTU or BACnet MSTP (selectable)**.
www.dwyer-inst.com
e-mail: info@dwyermail.com
2.8´ WATER-IN
FLOW SENSOR
2.8´ WATER-OUT
FLOW SENSOR
Weight
lb [kg]
3.1 [1.4]
3.1 [1.4]
4.1 [1.8]
5.2 [2.3]
6.6 [3.0]
ØD
Weight
lb [kg]
30.8 [14]
30.2 [13.7]
37.5 [17]
41.8 [19]
57.3 [26]
