MARK II MODEL 40

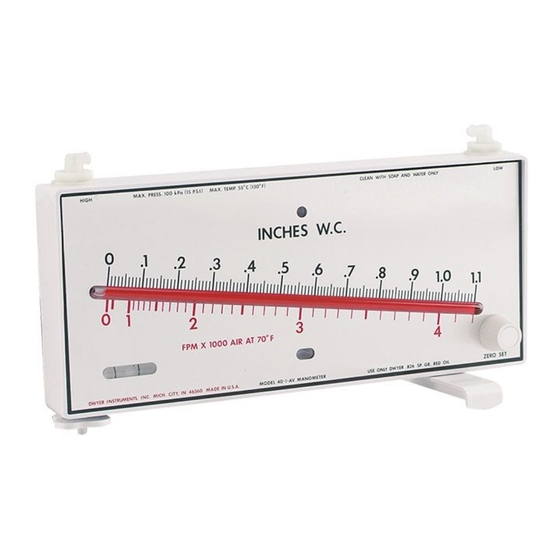

Dwyer Mark II • Model 40 Molded Plastic
Manometers are ideally suited for air velocity
and air filter gage applications at minimal cost.
These inclined manometers provide linear
calibration and excellent resolution throughout
their ranges. They are capable of pressure
measurements above and below atmospheric,
as well as differential pressure measurements.
INS TALLATION
Stationary Applications: Mount the Mark Ii
manometer on a convenient vertical surface.
The installation should not be exposed to strong
chlorine atmospheres or solvents such as
benzene, acetone, carbon
instrument is suitable for total internal pressures
of up to 15 psi (100 kPa) and ambient
temperatures of 150
EXCEED THESE LIMITS. At the mounting
location selected,
on a vertical line spaced 2-31/32" apart. Install
the gage with the self-tapping screws provided,
turning the screws down snug but not tight.
Adjust the position of the gage until the bubble is
centered in the spirit level. Tighten the mounting
screws, checking to be sure the instrument
remained level, and re-level as necessary.
DWYER INSTRUMENTS, INC.
P.O.BOX373
MICHIGAN CITY, INDIANA
TestEquipmentDepot.com
Mark II - Model 40 Molded Plastic Manometers
Installation and Operating Instructions
.
W.l
-
.- . ... ···-_:__ · �
__:"
-
tetrachloride,
° °
F (65 C}. DO NOT
drill two 9/64" diameter holes
46360, U.S.A
15/64 (5.95) x 13/32 (10.32]
1-----
10-518(269.88) -
SPECIFICAT IONS
Accuracy: ±3% of full scale.
Maximum Internal Working Pressure: 15 psi
(100 kPa).
Maximum Working Temperature: 150
°
(65 C).
Scale Length: Approx. 8-1/4" (21 cm).
Weight: 10 oz (283.49 g).
ACCESSORIES
1 oz. gage fluid, mounting
tubing adapters,
pointer flags, (2) 4-1/2 ft. lengths 3/16"
vinyl tubing.
etc. The
I
�5164 (5.95) MOONTING H<l.E
L2511l
(19.84)
MOUNTING SLOT
2-1/4 (57.15)
screws,
washers, nuts,
t
-1
1-1/4
(31.75)
-
MAX
-4(101.60)-
°
F
1/8" NPT
red and green
I. D.
