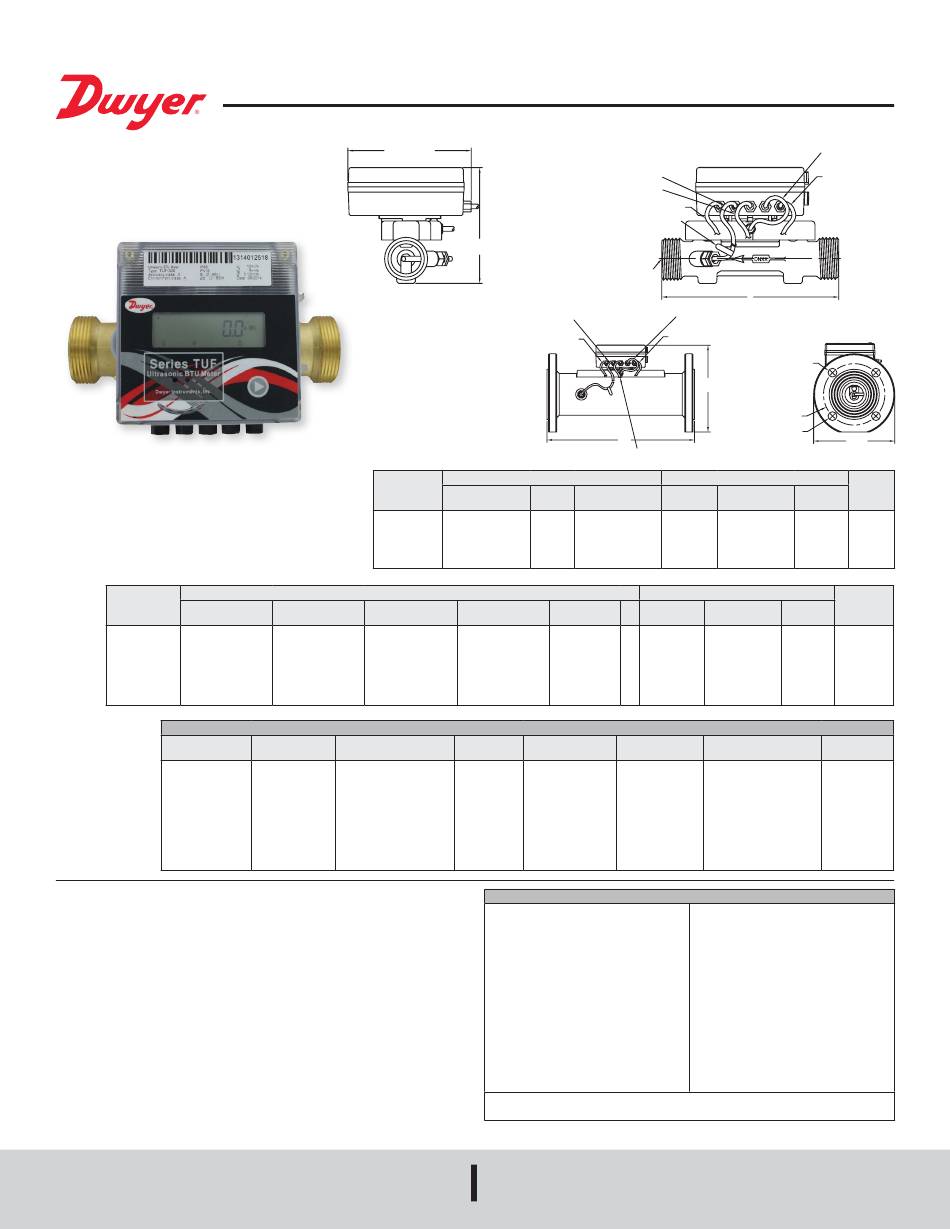

Series TUF Ultrasonic Energy Meter with BACnet Communication
Specifications - Installation and Operating Instructions
Dimensions in [mm]
Model L
TUF-500-XX 11-13/16 [300.00]
TUF-650-XX 11-13/16 [300.00]
TUF-800-XX 13-25/32 [350.00]
TUF-1000-XX 13-25/32 [350.00]
TUF-1250-XX 13-25/32 [350.00]
TUF-1500-XX 11-13/16 [300.00]
TUF-2000-XX
11-13/16 [350.00]
MODEL CHART
Model
TUF-150-XX
TUF-200-XX
TUF-250-XX
TUF-320-XX
TUF-400-XX
TUF-500-XX
TUF-650-XX
TUF-800-XX
TUF-1000-XX
TUF-1250-XX

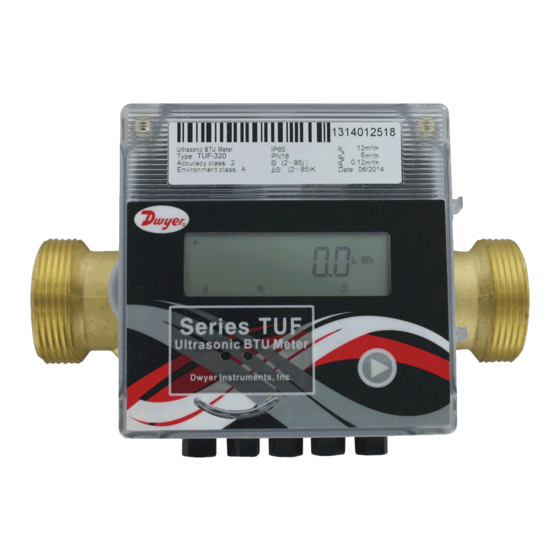

The Series TUF Ultrasonic Energy Meter is a highly accurate and stable energy
meter that utilizes ultrasonic technology to measure heating and cooling energy
consumption. The Series TUF is a compact meter with a flowmeter and energy
calculator in one, making it great for installation on chillers and boilers.
Features/BENEFITS
• Lower maintenance costs with local parameter display and no moving parts
• Serial communication output allows for easy transfer of data
• Flow and temperature monitor in one unit eliminates the need for multiple units
APPLICATIONS
• Heat metering
• Utilities billing
• Tenant billing
• Monitoring of water heating or cooling: radiators, fan coils
INSTRUCTIONS FOR ORDERING
• Choose 1 ultrasonic energy meter model
• Choose 2 pipe fitting models given the appropriate fitting size (for DN15 to DN40
only)*
Example: TUF-150-MD, Fitting Size: A, select pipe fitting Model WM-ACC-C01 or
WM-ACC-C11.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
4-1/4
[108.00]
Model
TUF-150-XX
TUF-200-XX
TUF-250-XX
TUF-320-XX
TUF-400-XX
ØD H
6-1/2 [165.00] 6-57/64 [175.00]
7-9/32 [185.00] 7-23/32 [196.00]
7-7/8 [200.00] 8-1/2 [216.00]
8-21/32 [220.00] 9-11/64 [233.00]
9-27/32 [250.00] 10-25/64 [264.00]
11-7/32 [285.00] 11-29/64 [291.00]
13-25/64 [340.00] 13-21/32 [347.00]
Process Corresponding Pipe
Connection Fitting
G-3/4 1/2˝ NPT or BSPT
G1 3/4˝ NPT or BSPT
G1-1/4 1˝ NPT or BSPT
G1-1/2 1-1/4˝ NPT or BSPT
G2 1-1/2˝ NPT or BSPT
GB9119 flange 2˝ DN 50 PN 16 flange
GB9119 flange 2-1/2˝ DN 65 flange
GB9119 flange 3˝ DN 80 flange
GB9119 flange 4˝ DN 100 flange
GB9119 flange 5˝ DN 125 flange
4´ FLOW PIPE TEMP SENSOR
4´ RETURN PIPE TEMP SENSOR
4´ 4-CORE WIRE
[2 COMMUNICATION, 2 POWER]
H
THREAD
4´ FLOW PIPE TEMP SENSOR
4´ 4-CORE WIRE
[2 COMMUNICATION, 2 POWER]
L
Dimensions in [mm]
L D H
4-21/64 [110.00] G3/4B 3-31/32 [101.00]
5-1/8 [130.00] G1B 3-31/32 [101.00]
6-19/64 [160.00] G11/4B 4-11/64 [106.00]
7-3/32 [180.00] G11/2B 4-29/64 [113.00]
7-7/8 [200.00] G2B 4-49/64 [121.00]
ØD1 ØD2 N
4-59/64 [125.00] 45/64 [18.00] 4
5-45/64 [145.00] 45/64 [18.00] 4
6-19/64 [160.00] 45/64 [18.00] 8
7-3/32 [180.00] 45/64 [18.00] 8
8-17/64 [210.00] 45/64 [18.00] 8
9-29/64 [240.00] 55/64 [22.00] 8
11-39/64 [295.00] 55/64 [22.00] 12
Process
Power Model Connection
24 VAC/VDC TUF-150-XX-DC G-3/4
24 VAC/VDC TUF-200-XX-DC G1
24 VAC/VDC TUF-250-XX-DC G1-1/4
24 VAC/VDC TUF-320-XX-DC G1-1/2
TUF-400-XX-DC
24 VAC/VDC G2
24 VAC/VDC TUF-500-XX-DC GB9119 flange
24 VAC/VDC TUF-650-XX-DC GB9119 flange
24 VAC/VDC TUF-800-XX-DC GB9119 flange
24 VAC/VDC TUF-1000-XX-DC GB9119 flange
24 VAC/VDC TUF-1250-XX-DC GB9119 flange

SPECIFICATIONS

Service: Clean, compatible liquids.
Wetted Materials: Brass and 316L SS.
Range: See chart.
Display: 8-digit LED.
Accuracy: BTU: EN1434/CJ128
Class 2; Flow: ±(2+(0.02 Qp / Q))%;
Temperature: ±0.1°C .
Power Requirements: 24 VAC/VDC
(model dependent)* or 3.6 V ER26500
lithium metal battery, user supplied
and installed, battery acts as back-up if
power is lost.
Power Consumption: 1 W.
Temperature Limits: Ambient: 41 to
131°F (5 to 55°C); Process: 36 to 203°F
(2 to 95°C).
Humidity Limit: < 93%.
*Model numbers ending in "-DC" are for DC only applications.
**M-BUS available upon request.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin F-TUF-B
2X D
L
2.8´ WATER-IN FLOW SENSOR
2.8´ WATER-OUT FLOW SENSOR
´N´ NO. OF HOLES
[SEE TABLE]
H
ØD1 B.C.
ØD2
4´ RETURN PIPE TEMP SENSOR
Flow Rate GPM [LPM]
Max Flow Nominal Flow Min Flow
(Qs) Range (Qp) (Qi)
13 [50] 6.6 [25] 0.1 [0.5]
22 [83] 11 [42] 0.2 [0.8]
31 [117] 15 [58] 0.3 [1.2]
53 [200] 26 [100] 0.5 [2]
88 [333] 44 [167] 0.9 [3.3]
Flow Rate GPM [LPM]
Max Flow Nominal Flow Min Flow
(Qs) Range (Qp) (Qi)
132 [500] 66 [250] 0.7 [2.5]
220 [833] 110 [417] 1.1 [4.2]
352 [1333] 176 [667] 1.8 [6.7]
528 [2000] 264 [1000] 2.6 [10]
881 [3333] 440 [1667] 4.4 [17]
1321 [5000] 660 [2500] 6.6 [25]
2202 [8333] 1101 [4167] 11 [42]
Corresponding Pipe
Fitting
1/2˝ NPT or BSPT
3/4˝ NPT or BSPT
1˝ NPT or BSPT
1-1/4˝ NPT or BSPT
1-1/2˝ NPT or BSPT
2˝ DN 50 PN 16 flange
2-1/2˝ DN 65 flange
3˝ DN 80 flange
4˝ DN 100 flange
5˝ DN 125 flange
Pressure Limits: 232 psi (16 bar) for
DN15 to DN40; 362 psi (25 bar) for
>DN50.
Pressure Drop: < 1.5 psi (10 kPa).
Process Connection: See chart.
Serial Communications: Modbus
or BACnet MSTP (model selectable)**.
Enclosure Rating: IP65.
Enclosure Material: Plastic.
Repeatability: Flowmeter: 1%.
Electrical Connections: 3 ft (0.91 m)
4x0.2 mm2 cable with terminal block.
Flow Direction: Unidirectional.
Mounting Orientation: Horizontal or
vertical.
Weight: See chart.
Agency Approvals: CE.
