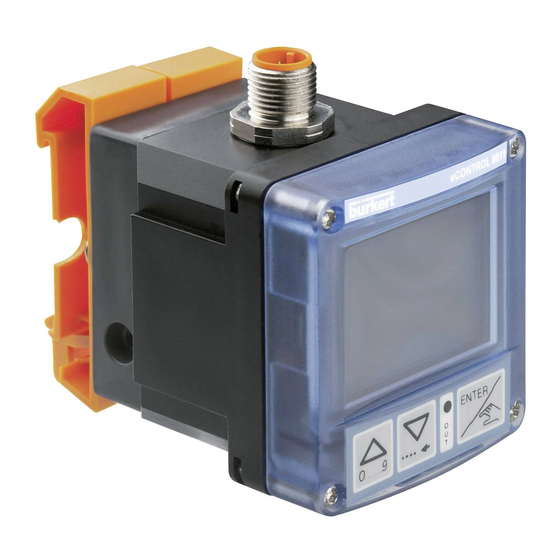

Burkert eCONTROL 8611 Operating Instructions Manual

Burkert eCONTROL 8611 Operating Instructions Manual

Compact process controller for temperature-, pressure- and flow control
Hide thumbs Also See for eCONTROL 8611:

Advertisement

Operating Instructions
Bedienungsanleitung
Instructions de Service
Type 861 1
eCONTROL
Compact Process controller for
Temperature-, pressure- and flow control
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eCONTROL 8611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Burkert eCONTROL 8611

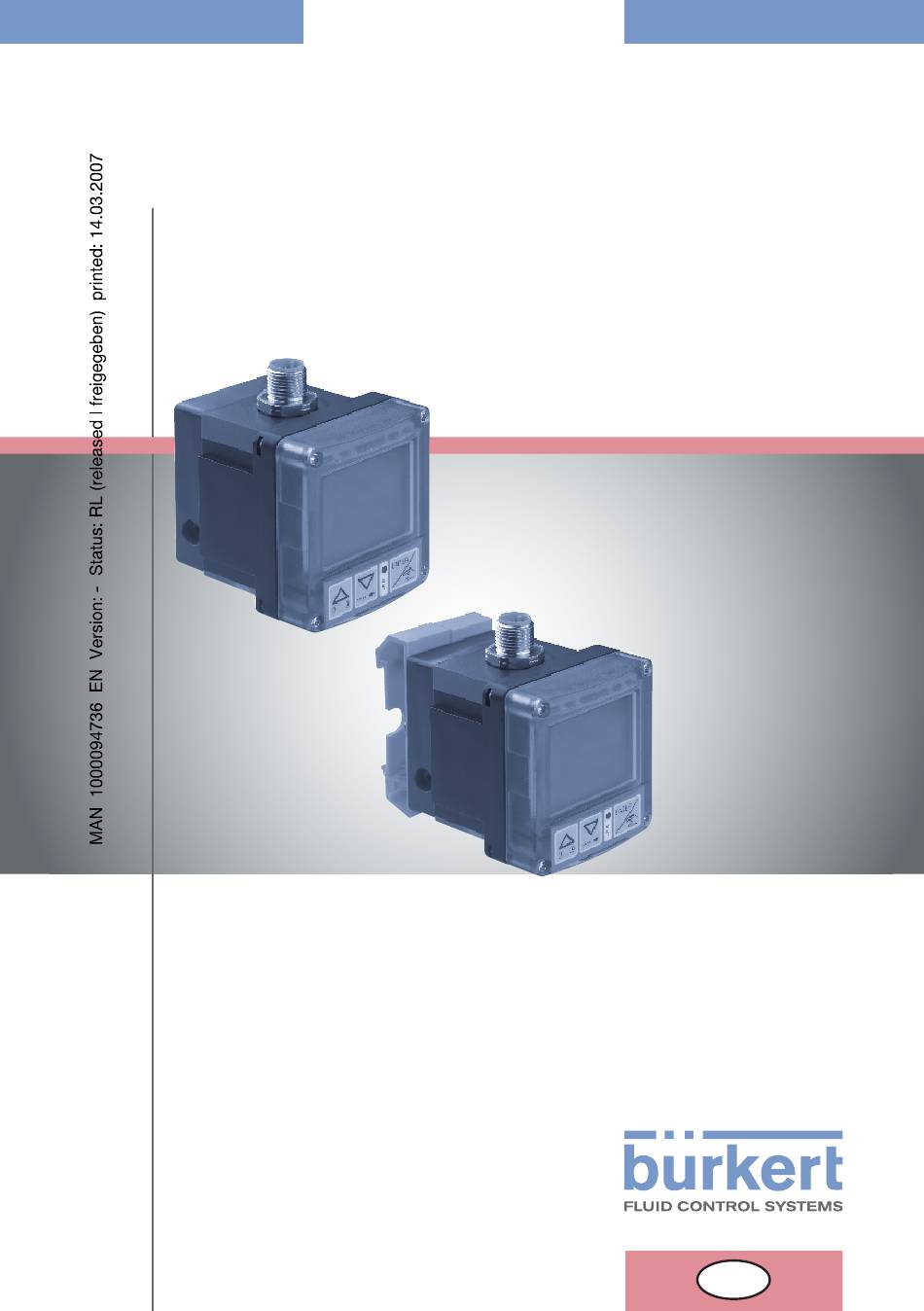

  • Page 1 Operating Instructions Bedienungsanleitung Instructions de Service Type 861 1 eCONTROL Compact Process controller for Temperature-, pressure- and flow control...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous resérve de modification techniques. © 2006 Bürkert Werke GmbH & Co. KG Operating Instructions 0703/00_EU-EN_00805625...
  • Page 3: Table Of Contents

    4.4 Ordering chart for accessories ................11 4.5 Field of application ....................12 4.6 Technical data ......................14 5 elecTrical inSTallaTion ....................16 5.1 Pin assignment of the eCONTROL 8611 ............16 6 operaTion oF The econTrol 8611 ................. 20 6.1 Display elements .......................20 6.2 Operating states .......................21 6. Key assignment ......................22...
  • Page 4 7.2 Wall mounting version .....................68 7. DIN rail mounting version ..................68 7.4 Factory settings ......................69 7.5 Connection exambles of eCONTROL 8611 with Buerkert devices .....74 8 MainTenance anD TroubleShooTinG ..............77 8.1 Faults / Error messages ..................77 9 packinG, TranSporT ......................78 10 SToraGe ............................
  • Page 5: General

    General The operating Manual The operating manual describes the entire life cycle of the device. Store this manual in such a way that is easily accessible to every user and is available to every new owner of the device. WarninG! The operating instructions has to be read and understood.
  • Page 6: Safety

    SaFeTY intended use The eCONTROL 8611 may only be used for the applications and ordering codes provided for in chapter Device description, and only in connection with third-party devices or components recommended or permitted by Bürk- ert. Use in any other way does not constitute an intended use.
  • Page 7 However, risks may nevertheless arise. Operate the eCONTROL 8611 only when it is in perfect condition and in accordance with the operating manual. Failure to observe this information and unauthorised intervention in the...
  • Page 8: General Notes

    This document does not offer any form of warranty. Please refer to our general terms and conditions of business. The guarantee is only valid if the eCONTROL 8611 has been used correctly in accordance with the specified operating conditions. noTe! This guarantee only covers the fault-free operating of the eCONTROL 8611 and its components.
  • Page 9: Device Description

    The approval mark shown on the Bürkert rating plates refers to the Bürkert products. Functions In a fluidic system the eCONTROL 8611 maintains the process parameters (pressure, temperature, flow rate) constant or regulates them to a given setpoint in conjunction with a solenoid control valve or process control valve and a sensor for pressure, temperature or flow rate.
  • Page 10: Ordering Chart For Econtrol 8611

    10 - 8611...
  • Page 11: Ordering Chart For Accessories

    8611 - 11...
  • Page 12: Field Of Application

    Field of application Power supply, setpoint, actual value, binary input, binary output Pilot valve PWM signal Process Sensor control valve Illustration 4.1: Principle of flow rate control with Process control valve (schematic) 12 - 8611...
  • Page 13 Power supply, setpoint, actual value, binary input, binary output Solenoid Sensor control valve valve Illustration 4.2: Principle of flow rate control with Solenoid control valve (schematic) 8611 - 1...
  • Page 14: Technical Data

    Technical data General data Materials Housing, Cover PC, +20 % glass fibre Front panel film / screws Polyester / stainless steel Multi-pin CuZn, nickel-plated Wall mounting bracket Installation Random installation position with fitting SO0 Compact device Wall mounting DIN rail mounting Display 8-character LCD Multi-pin: -pin and / or 4-pin M8,...
  • Page 15 Electrical data Operating voltage 24 V DC ±10%, filtered and controlled Power consumption ca. 2 W (without valves) Controller scanning frquency 600 Hz Inputs Max. input impedance: 70 W Setpoint Resolution: 5.5 mA Standard 4 to 20 mA Max. input impedance: 11.5 kW Standard 0 to 10 V Resolution: 2.7 mV (on request) Sensors...
  • Page 16: Electrical Installation

    Incorrect installation can damage or even destroy the universal controller. • The eCONTROL 8611 may only be installed by qualified personnel. pin assignment of the econTrol 8611 5.1.1 Model variants M12 8-pin M12 8-pin...
  • Page 17 GND actual value not occupied at 4 to 20 mA controlled variable output blue GND setpoint Binary output * Cable colors when using standard cables (e. g. Lumberg, Burkert ID 00918991) M8 3-pin plug: Sensor connection input type colour* allocation / external connection 4 ...
  • Page 18 8611, FREQ max. 1 A pT100 brown not connected 2-wire blue Process actual value (GND) black Process actual value (current supply) PT100 * Cable colors when using standard cables (e. g. Lumberg, Burkert ID 00918717) 18 - 8611...
  • Page 19 Solenoid control valve - black Solenoid control valve + * Cable colors when using standard cables (e. g. Lumberg, Burkert ID * Cable colors when using standard cables (e. g. Lumberg, Burkert ID 00918718) 8611 - 19...
  • Page 20: Operation Of The Econtrol 8611

    The eCONTROL 8611 must only be used by qualified personnel. Display elements The eCONTROL 8611 is equipped with an operating and display element with  keys and LCD matrix display. The function of the keys is described in the following chapters.
  • Page 21: Operating States

    operating states Three operating states are possible during operation of the eCONTROL 8611: • Operating mode • Configuration mode • Autoscaling mode When the supply voltage is switched on, the software version of the control- ler appears on the display for approx. 2 seconds. The controller is then in operating mode.
  • Page 22: Key Assignment

    ENTER 0..9 Button Button ENTER "DEC" "INC" Illustration 6.: Keys of the eCONTROL 8611 ENTER Modus 0..9 press button: press button: press button: Operating Display switchover Display switchover Setting of set- mode between setpoint, between setpoint, point internal...
  • Page 23 6.4 operating mode After setting the operating voltage, the device operates in this mode. The current process value is then displayed, depending on the set process parameter (L/M, L/H, ML/H, BAR, °C, °F, etc.). Display of the actual value (example flow rate) Display in L/H, L/M, ML/H M/H...
  • Page 24: Operating Mode

    Increase 0..9 ENTER Next digit Accept value ENTER and back to ENTER 0..9 operating mode 2 sec ENTER See Chapter 6.5.11 Illustration 6.5: Setpoint input in operating mode configuration mode In configuration mode, the settings of the controller can be adapted to the application in question.
  • Page 25 Display Settings chapter 5 sec Selection of process parameter, 6.5.1 STanDarD actuator and sensor input MoDe Define units, decimal point and 6.5.2 display Select and scale setpoint input 6.5. Scale sensor input and output 6.5.4 Calibrate inputs and outputs 6.5.5 Set K factor (for flow meter) 6.5.6 (MODE=FREQ)
  • Page 26 6.5.1 MoDe – Selection of process parameter, actuator and sensor input In this menu item the process parameter (pressure, temperature, flow rate), the actuator (Solenoid control valve, Process control valve or 4 to 20 mA) and the type of sensor input (RTD 4 to 20, frequency) is selected. Selection of process parameter Flow rate control Temperature control...
  • Page 27 noTe! In the event of a change in the process parameter, e. g. from F to T, all the parameters are reset to the factory settings. The factory settings can be found in the chapter Installation. 6.5.2 uniT – Selection of units, decimal point and display Depending on the MODE, various units are available for selection.
  • Page 28 Depending on the MODE, you will see the following displays: DP P: Decimal places for pressure units Selection of decimal places DP T: Decimal places for temperature units DP F: Decimal places for flow rate units No decimal place One decimal place Two decimal places Selection of sensor indication...
  • Page 29 6.5.3 SeTp - Select input signal for setpoint input and scaling of input signal (0 to 10 v, 4 to 20 ma) internal setpoint input Setpoint input via key- pad (internal) External setpoint input Enter Setpoint Increase value Next digit Accept value Enter max.
  • Page 30 external setpoint In EXT mode, the "1" appears on the display noTe! Please note! ≥ EXHI EXLO noTe! The selection "4 to 20" or "0 to 10" is dependent on the controller model. Note here the indication on the type plate! Assignment of Set direction of process setpoint...
  • Page 31 Dirc – effective direction between input signal and process setpoint The relationship in direction between the input signal (SETP) and the proc- ess setpoint is set with this function. to next sub-menu item Illustration 6.12: Effective direction between input signal and process setpoint Direct effective direction e.
  • Page 32 6.5.4 Scal - Scaling of input and output signal of process actual value The sensor input signal and the output signal of the process actual value can be scaled in this menu item. Possible sensor input signals: Frequency or 4 to 20 mA. noTe! A scaling of the RTD input is not necessary! Possible output signals of the process actual value:...
  • Page 33 6.5.4.1 control via Solenoid control valve or process control valve MoDe = Scv or pcv a) Sensor input signal = 4 to 20 ma Selection 4 ... 20 mA Process Value output 4 ... 20 mA Sensor input Scaling of actual value input MODE = T+F, T-F Selection of which PV to transmit...
  • Page 34 b) Sensor input signal = FreQ or pT MODE = T+F, T-F Selection of process parameter for analog output Scaling of actual value output Increase value Next digit Accept value Illustration 6.15: SCAL - Scale actual value noTe! Menu S_IN is not available for sensor input FREQ or PT. Scaling is not necessary.
  • Page 35 6.5.4.2 control via 4 to 20 ma actuator controlled variable MoDe = 4 ... 20 noTe! In this MODE, Process value is not available as an output signal! a) Sensor input signal = 4 to 20 ma Scaling of ac- tual value input Increase value...
  • Page 36 cauTion! Functional impairments due to incorrect calibration • The calibration may only be carried out by qualified personnel. calibration of setpoint input signal (4 to 20 ma or 0 to 10 v) Depending on the selection in SETP-EXT, connect a defined voltage (max.
  • Page 37 calibration of sensor input signal pT 100 MODE = PT Connect a resistance of 100 plug M8 -pin (terminals  + 4) to simulate a temperature of 0 °C. Accept with key back to CALI without saving Connect a resistance of 119.4 to plug M8 -pin (terminals +4) to simulate a temperature of 50 °C.
  • Page 38 calibration of actual value output 4 to 20 ma MODE = SCV or PCV Connect a multimeter to plug M12 8-pin (terminals 4 + 6) and meas- ure the amperage. Adjust the am- perage with the buttons until the display shows 20 mA. calibration of controlled variable output 4 to 20 ma Connect a multimeter to plug M8 4-pin (terminals 1 + 2) and...
  • Page 39 6.5.6 kFac - Set k factor The K factor standardises the input frequency of a flow rate sensor. f – Input frequency in Hz Q = f K – K factor in pulses / litre Flow rate in litres / sec. K = pulses The K factor indicates the number of pulses per litre.
  • Page 40 noTe! Input K factor larger than 9999: - Select DP_K = 10 - Divide the K - factor according to data sheet by ten and enter Example: K factor according to data sheet: 21000 K factor to be entered: 2100 6.5.7 FilT - Set filter factor Filter factors can be set between 2 to 20.
  • Page 41 6.5.8 para - parameterise controller Depending on the choice of MODE, the following functions are available: MoDe = Scv or 4 ... 20 ma Gain factor 1 Integral-action time (seconds / Repeat) Dead band of the controller Temperature control Gain for Cas- cade Control Integral-action time (s/R) of Cascade temperature control...
  • Page 42 pcv MoDe Gain factor 1 (opening if PCV selected) Gain factor 2 - Closing Controller scan time (sec) Dead band of the controller Minimum control time (msec) of venting valve Minimum control time (msec) of exhausting valve Temperature control Gain for Cascade Control Integral-action time (s/R) of Cascade temperature control...
  • Page 43 kp1, kp2 - Setting of the gain factor Depending on the MODE, the gain factors have the following influence: MODE Influence of the gain factor Setting Gain factor for opening and % /selected unit closing of the Solenoid control valve (KP 1) 4 ...
  • Page 44 TreG - Setting of the controller Scan Time This parameter is available under MODE = PCV. In this MODE the control- ler functions as a pure Gain controller. The scan time is seconds within which a comparison between setpoint and actual value is to be performed can be set with the parameter "TREG". TREG defines the scan time is in seconds within which a setpoint / actual value comparison is regularly performed and a new controlled variable is calculated.
  • Page 45 DeaD - Dead band This function ensures that the process controller only reacts above a give control difference. This reduces the wear on the control valves and the pneumatic drive. Process setpoint to the con- Control dif- (SET) troller ference Dead band Process actual value...
  • Page 46 b_MS, e_MS - Minimum control time of the venting and exhausting valves Venting and exhausting valves are required for the control of pneumatic process valves that are controlled by the controller, Type 8611. The control time of these valves determines the opening and closing travel of the proc- ess valve.
  • Page 47 1 Venting valve (compressed air) 2 Exhausting valve (exhaust air) Illustration 6.28: Functional diagram of the process control with process valve kp_T – Gain factor of the cascaded temperature control This parameter can only be selected with MODE = T + F. Scaling KP_T: Unit selected under UNIT / 1 °C Increase value Next digit...
  • Page 48 Tn_T – integral-action time of the cascaded temperature control This parameter can only be selected with MODE = T + F. The integral action time T (in sec) is the time required to achieve an equally large change in the controlled parameter with the I action as caused by the P action.
  • Page 49 De_T – Dead band of the cascaded temperature control This function ensures that the temperature controller only reacts above a give control difference. Increase value Next digit Accept value to next sub-menu item Illustration 6.1: Input of absolute dead band The dead band is input as an absolute value according to the selected tem- perature unit and the setpoint range selected in SET - EXT.
  • Page 50 The following table shows indicative values for the setting of the control frequency of the Bürkert Solenoid control valves. Frequency range Frequency range Type Type [hz] [hz] 2821 650 - 800 28 1000 - 1200 2822 284 180 - 280 1000 - 1200 2824 285...
  • Page 51 non-inverted control (no) e. g. process value increases when valve opens. inverted control (YeS) e. g. process value decreases when valve open Illustration 6.: INV – Inverted / non-inverted control High inv - YeS inv - no Closed Open valve position Illustration 6.4: Effective direction between Process value and Valve posi- tion example of an inverted control...
  • Page 52 Pump Working resistance Solenoid sensor control valve Illustration 6.5: Example of an inverted control Zero – Zero point shutoff Deactivation of the zero point shutoff Activation of the zero point shutoff return to PARA Illustration 6.6: ZERO – Zero point shutoff no zero point shutoff The control is constant down to the lower limit value of the range set in SETP-EXLO or to the lower limit value of the range defined...
  • Page 53 Zero point shutoff active The control is constant down to the setpoint < 2% of the range defined under SETP-EXHI. The valve then closes. SETP see 6.5. VALV see 6.5.11 noTe! ZERO point shutoff only possible when non-inverted control is selected (INV = no).
  • Page 54 6.5.9 b_in - binary input With the binary input, the control can be activated or deactivated externally. (Default) Illustration 6.7: B_IN - Binary input activated / deactivated b _in no Binary input is deactivated. The control is permanently active („2“ is shown on the display). b _in YeS Binary input is activated.
  • Page 55 6.5.10 bouT - binary output The binary output can be used to monitor the controller or for the monitoring of limit values. 1 binary output is available. Depending on the selected MODE, the following parameters can be se- lected: parameter Description Mode CTRL...
  • Page 56 Monitoring of the setpoint deviation Flow rate monitoring Pressure monitoring Temperature monitoring Monitoring of setpoint Increase value Next digit Accept value Increase value Next digit Accept value Illustration 6.8: BOUT - Binary output Time in seconds for which the control deviation must continu- ously exist.
  • Page 57 Monitoring of flow rate, temperature, pressure either Time in seconds for which the control deviation must con- tinuously exist Input of lower switching threshold Input of upper switching threshold return to B_OUT Illustration 6.9: Monitoring of flow rate, temperature, pressure error messages ERR1 Display ERR1 appears if measured values are outside the control...
  • Page 58 6.5.11 valv - Test function and setting of control range In this function the valve can be opened and closed manually and the con- trol range can be set specifically for the valve in relationship to the process pressure. Recommend performins this function under actual operating pressure. noTe! MAX and MIN values can be set howerer each value must be set inde- pendirly of each other.
  • Page 59 6.5.11.1 control of Scv or 4 to 20 ma actuator - MoDe F, T and p Display of current process value (depending on MODE in bar, l/m, °C, etc.) Opening of If not actuated for the valve > 2 seconds, the Closing of process value is the valve...
  • Page 60 6.5.11.2 control of Scv or 4 to 20 ma actuator - MoDe T + F, T - F Display of cur- rent process value (depend- ing on MODE in l/m, °C, etc.) Opening of If not actuated for the valve >...
  • Page 61 Process value EXHI Control range Limited Scaling Process Setpoint value (SETP) range EXLO Valve position 100 % (physical) 4 mA 20 mA Control 100% range VALVE- VALVE- Illustration 6.42: VALV - Setting of control range Setting of minimum control value Increase the control of the valve with the -key until the valve just opens.
  • Page 62 6.5.11.3 control of pcv - MoDe F, T, p noTe! MAX and MIN values can be set howerer each value must be set inde- pentendly of each other. Display of current process value (de- pending on MODE in bar, l/m, °C, etc.) noTe Opening of When the arrow keys are...
  • Page 63 6.5.11.4 control of pcv - MoDe T + F Select (Process value to be indicate) Display of current process value (depending on MODE in l/m, °C, etc.) Opening of noTe the valve When the arrow keys are pressed, the Closing of venting and exhaust- the valve ing valves are driven...
  • Page 64 Limited EXHI Process value Scaling of setpoint VALVE- (SETP) Unlimited Process Control value range VALVE- EXLO Stroke- Stroke- Valve position Illustration 6.45: VALV - Setting of control range 6.5.12 coDe - code input for access to the configuration menu Factory setting: CODE 0000 Barring access to the configuration level Illustration 6.46: CODE - Code input for access to the configuration menu...
  • Page 65 6.5.13 Display software, software version and save values noTe! The parameters to be set in the individual menu items of the configuration mode are only saved after quitting configuration mode in the menu item END with ENTER -key. Display software Display version (e.
  • Page 66: Autoscaling Mode

    6.6 autoscaling mode This function is available only in MODE = F. The measuring range of the universal controller can be automatically deter- mined in autoscaling mode. operaTinG auToScalinG MoDe MoDe ENTER 0..9 Hold the buttons de- pressed for  seconds auTo Press ENTER...
  • Page 67: Installation

    inSTallaTion Fitting mounting version 8611 Electronic S00 Fitting Illustration 7.1 Fitting mounting version 8611 - 67...
  • Page 68: Wall Mounting Version

    Wall mounting version 8611 Electronic Wall mounting bracket Illustration 7.2 Wall mounting with a bracket Din rail mounting version 8611 Electronic Wall mounting bracket and adapter for DIN rail mounting DIN rail Illustration 7. Rail mounting with a DIN rail 68 - 8611...
  • Page 69: Factory Settings

    Factory settings Factory settings MoDe F customer- specific Flow rate control settings 4 ... 20 UNIT DP_T SETP 50.0 50.0 50.0 EXHI 50.0 50.0 50.0 4 ... 20 / EXLO 0 ... 10 EXHI 50.0 50.0 50.0 DIRC SCAL S_IN / 4_MA S_OUT 20_MA...
  • Page 70 Factory settings MoDe T customer- specific Temperature control settings 4 ... 20 UNIT DP_T °C °C °C SETP 50.0 50.0 50.0 EXHI 50.0 50.0 50.0 4 ... 20 / EXLO 0 ... 10 EXHI 50.0 50.0 50.0 DIRC KFAC FILT PARA TREG DEAD...
  • Page 71 Factory setting MoDe p customer- specific pressure control settings 4 ... 20 UNIT DP_T SETP 50.0 50.0 50.0 EXHI 50.0 50.0 50.0 4 ... 20 / EXLO 0 ... 10 EXHI 50.0 50.0 50.0 DIRC KFAC FILT PARA TREG DEAD B_MS E_MS KP_T...
  • Page 72 Factory settings MoDe T - F customer- specific Temperature control with flow rate indicator settings 4 ... 20 UNIT DP_T °C + °C + °C + SETP 50.0 50.0 50.0 EXHI 50.0 50.0 50.0 4 ... 20 / EXLO 0 ... 10 EXHI 50.0 50.0...
  • Page 73 Factory settings MoDe T + F customer- specific Temperature control with superordinate settings flow rate control 4 ... 20 UNIT DP_T °C + °C + °C + SETP 50.0 50.0 50.0 EXHI 50.0 50.0 50.0 4 ... 20 / EXLO 0 ...
  • Page 74: Connection Exambles Of Econtrol 8611 With Buerkert Devices

    7.5 connection exambles of econTrol 8611 with buerkert devices 7.5.1 connecting of Flow meter with Frequency signal Illustration 7.6 Connecting of Flow meter with Frequency signal (examble 1) Illustration 7.7 Connecting of Flow meter with Frequency signal (examble 2) 74 - 8611...
  • Page 75 7.5.2 connecting to Sensors with 4 ... 20 ma signal Illustration 7.8 Connecting to Sensors with 4 ... 20 mA signal (examble 1) Illustration 7.9 Connecting to Sensors with 4 ... 20 mA signal (examble 2) 8611 - 75...
  • Page 76 Illustration 7.10 Connecting to Sensors with 4 ... 20 mA signal (examble ) 7.5.3 connecting of Solenoid control valve or process control valve Illustration 7.11 Connecting of Solenoid control valve or Process control valve 76 - 8611...
  • Page 77: Maintenance And Troubleshooting

    MainTenance anD TroubleShooTinG When used in accordance with the instructions given in this operating man- ual, the eCONTROL 8611 is maintenance-free. Faults / error messages Dis- Cause Remedy RESET play ENTER ERR1: Constant setpoint de- Optimise control Controller remains viations (variable) after parameter active.
  • Page 78: Packing, Transport

    Cover the electrical and pneumatic connectors with protective caps to protect them against mechanical damage. • Pack the eCONTROL 8611 carefully in the original packaging or simi- lar packaging. Transport the eCONTROL 8611 safely protected from damp and contamination, only in the original packaging or in similar protective packaging.
  • Page 80 The smart choice of Fluid Control Systems www.buerkert.com...
