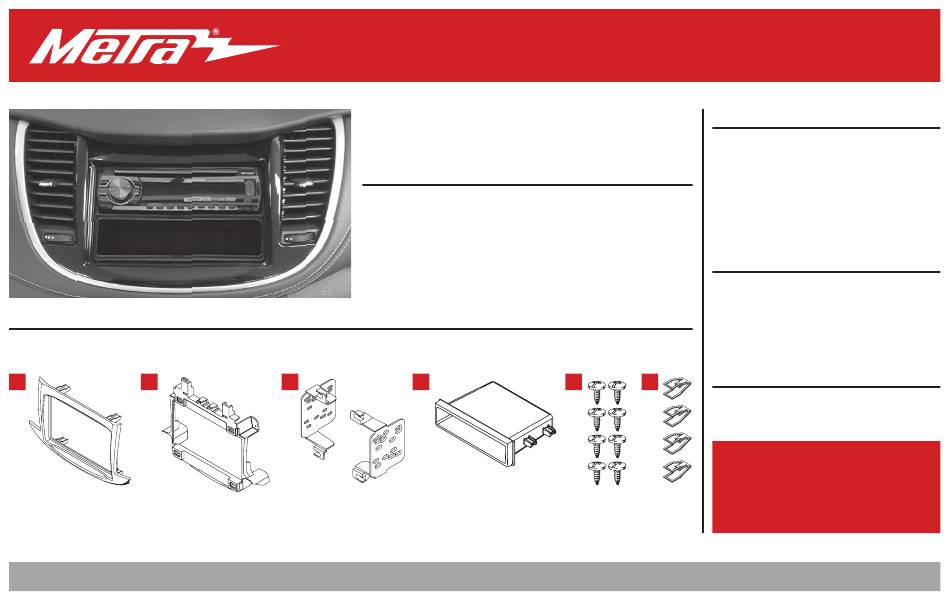

KIT COMPONENTS
• A) Radio trim panel • B) Radio housing • C) Radio brackets • D) Pocket • E) (8) #8 x 3/8" Phillips screws • F) (4) Panel clips
A
B
Metra. The World's Best Kits.
®
Chevrolet Trax 2017-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
• ISO DIN radio provision with pocket
• Painted high gloss black
C
D
MetraOnline.com
E
F
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
99-3023HG
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Preparation . ......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: TBA
Antenna Adapter: 40-EU55
Steering Wheel Control Interface: ASWC-1
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • Cutting tool
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 2/16/18 INST99-3023HG
