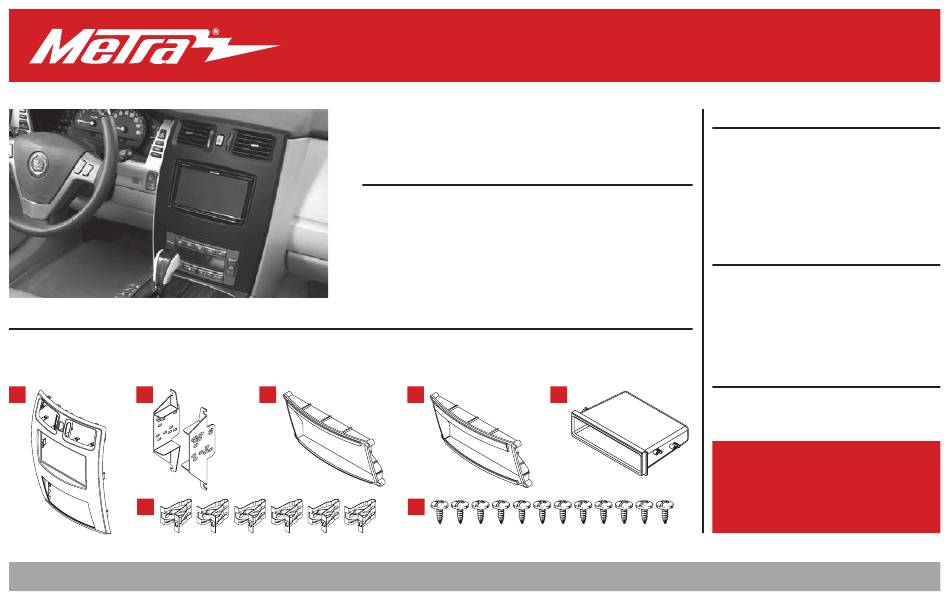

KIT COMPONENTS
• A) Radio/climate control panel • B) Radio brackets • C) Climate control trim panel A (04-05) • D) Climate control trim panel B (06-09)
• E) Pocket • F) (6) Panel clips • G) (12) #8 x 3/8" Phillips screws
A
B
F
Metra. The World's Best Kits.
®
Cadillac XLR 2004-2009
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Complete center dash panel for a factory look
• Painted matte black
C
D
G
MetraOnline.com
E
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
99-3026B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . ..............................................2-3
Kit Preparation . ..................................................4-5
–ISO DIN radio provision with pocket . .................6
–ISO DDIN radio provision . ....................................7
WIRING & ANTENNA CONNECTIONS
Wiring Harness: TBA
Antenna Adapter: 40-GM10
Steering wheel control interface: • ASWC-1
(sold separately)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 6/28/18 INST99-3026B
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-3026B
Summary of Contents for Metra Electronics 99-3026B
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 6/28/18 INST99-3026B...
- Page 2 DASH DISASSEMBLY 1. On the bottom of the shifter, pull the chrome trim downward, and then remove (1) screw exposed. Pull up on the shifter to remove it. (Figure A) 2. Unclip the shifter trim plate, then set to the side. (Figure B) Continued on the next page (Figure A) (Figure B) 1.800.221.0932 MetraOnline.com...
- Page 3 DASH DISASSEMBLY (CONT.) 3. Unclip, unplug, and remove the radio/ climate control panel. (Figure C) 4. Remove (4) 9/32” screws securing the radio. Slide the radio out, then unplug and remove the radio. (Figure D) Continue to Kit Preparation (Figure C) (Figure D) REV. 6/28/2018 INST99-3026B...
- Page 4 KIT PREPARATION From the factory radio/climate control panel: 1. Unclip and remove the a/c vents. (Figure A) 2. Unclip and remove the hazard switch. (Figure A) 3. Remove (4) screws securing the climate controls, then remove the controls. (Figure A) Continued on the next page (Figure A) 1.800.221.0932 MetraOnline.com...
- Page 5 (CONT.) 4. Secure the appropriate climate control trim panel to the 99-3026B radio/ climate control panel using the (4) #8 x 3/8” Phillips screws provided. The climate control panel part number is stamped onto the back of the panel. CH-3026-1 - 2004-2005 CH-3026-2 - 2006-2009 (Figure A) To the 99-3026B radio/climate control panel: 5. Secure the (6) included panel clips to the (Figure A) (Figure B) (Figure C) radio/climate control panel (factory clips can also be used if desired) (Figure B) 6. Clip in the factory a/c vents. (Figure C) 7. Clip in the hazard switch. (Figure C) Secure the climate controls to the panel using the (4) #8 x 3/8” Phillips screws...
- Page 6 KIT ASSEMBLY ISO DIN radio provision with pocket 1. Secure the radio brackets to the pocket using the (4) #8 x 3/8” Phillips screws provided. (Figure A) 2. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 3. Slide the radio into the bracket/pocket assembly, then secure it to the assembly using the screws supplied with the radio. (Figure B) 4. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/ or Axxess. Test the radio for (Figure A) (Figure B) proper operation. 5. Secure the radio assembly to the dash using the factory screws. 6. Reassemble the dash in reverse order of disassembly to complete the installation. 1.800.221.0932 MetraOnline.com...
- Page 7 KIT ASSEMBLY ISO DDIN radio provision 1. Secure the radio brackets to the radio using the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation. 3. Secure the radio assembly to the dash using the factory screws. 4. Reassemble the dash in reverse order of disassembly to complete the installation. (Figure A) REV. 6/28/2018 INST99-3026B...
- Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 6/28/18 INST99-3026B...
