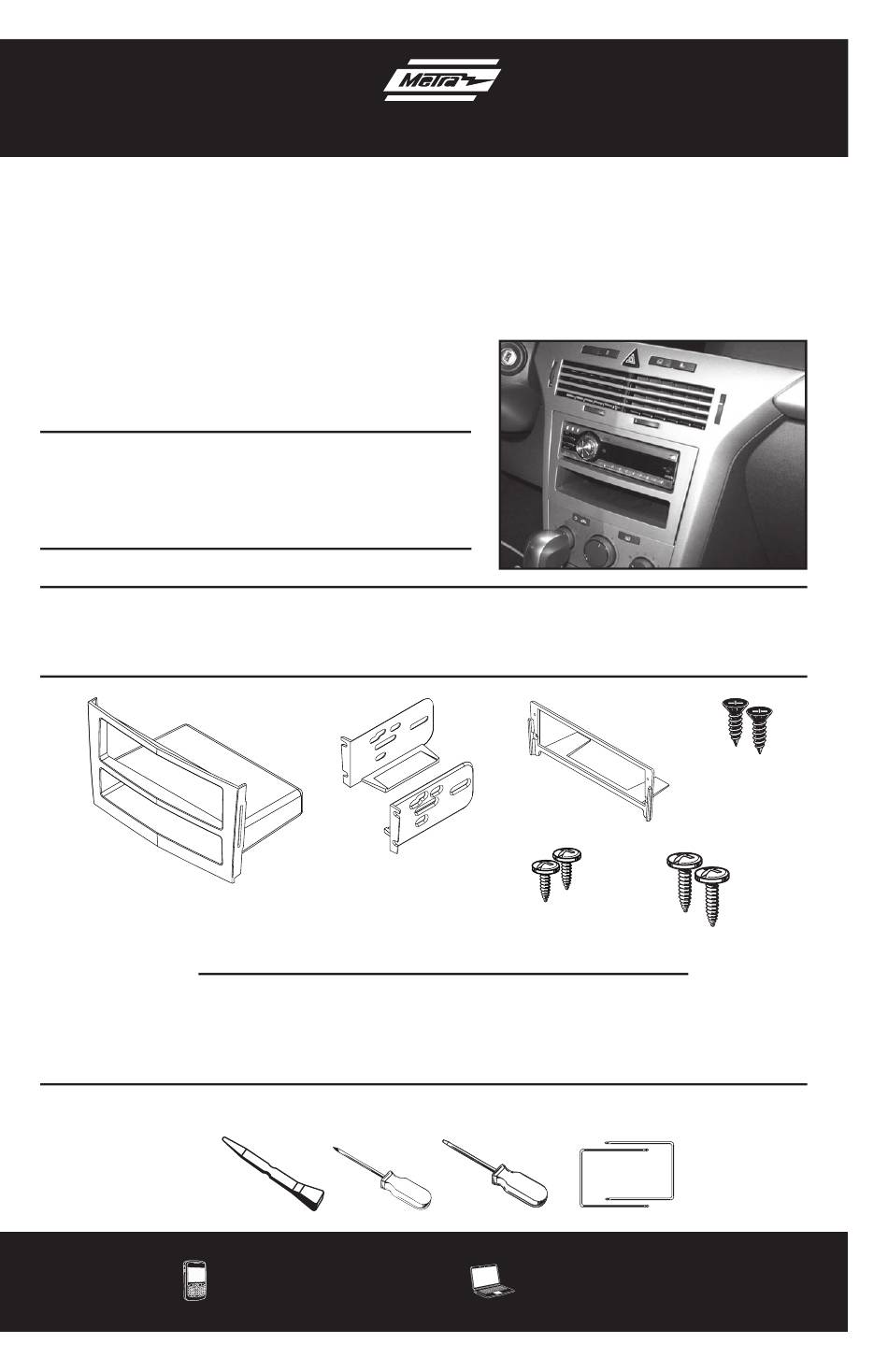

INSTALLATION INSTRUCTIONS FOR PART 99-3107
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
• Painted to match factory finish
99-3107S=Silver, 99-3107G=Gray
KIT COMPONENTS
• A) Trim Plate/Pocket • B) ISO Brackets • C) Radio Housing • D) (2) Black Oval Head Phillips Screws
• E) (2) Silver Pan Head Phillips Screws (Small) • F) (2) Silver Pan Head Phillips Screws (Large)
NOTE: Parts "A" and "C" May be snapped together in package
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness: Not Available
Antenna Adapter: 40-EU10 European Antenna Adapter
Panel Removal Tool • Phillips Screwdriver • Socket Wrench • Radio Removal Keys
APPLICATIONS
Saturn Astra 2008-up
99-3107S
99-3107G
B
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
E
F
metraonline.com
D
