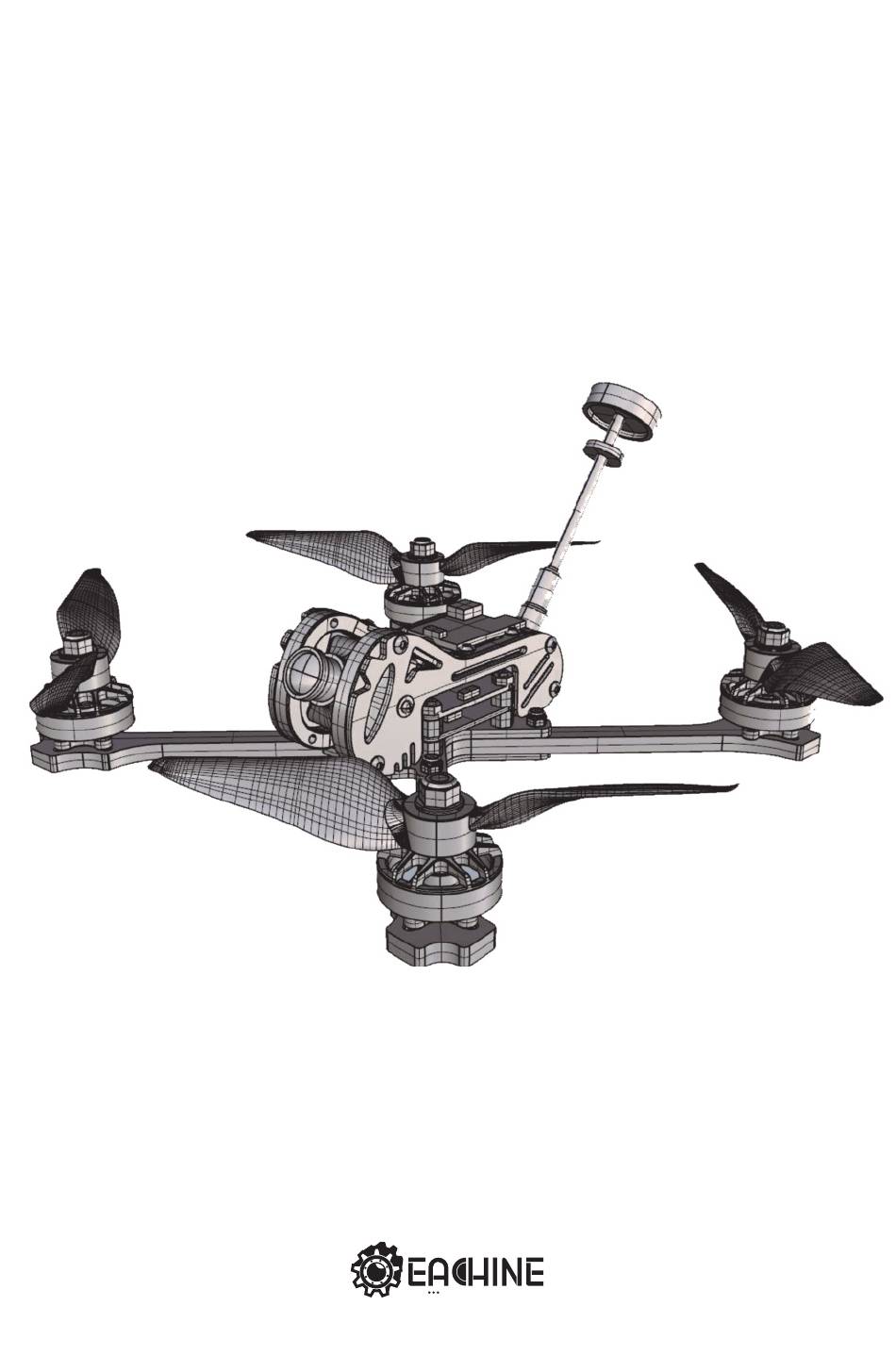

- Page 1 TYRO99 QUICK START GUIDE (DIY)
- Page 2 TYRO99 QUICK START GUIDE Package included: 1 x 210mm frame kit 2 x 2206 2150KV brushless motor CW 2 x 2206 2150KV brushless motor CCW 1 x 4 IN 1 30A BLHeli_S ESC 1 x Customized F4 flight controller 1 x 700TVL COMS camera 1 x 5.8G 40CH 0mw/25mw/200mw/600mw...
- Page 3 TYRO99 QUICK START GUIDE 1.0 Frame kit Wheel base: 210mm Frame arm thickness: 5mm Bottom plate thickness: 2mm Side plate thickness: 2mm Frame kit material: 3K carbon fiber & 6065 aluminium 2.0 Motor Motor KV: 2150RPM/V Stator diameter: 22mm Idle current (Io/10V): 1.26A...
- Page 4 TYRO99 QUICK START GUIDE 3.0 ESC Continuous current: 30A Peak Current: 40A(10S) Input voltage: 2-5S BEC: 5V 2A BEC Main control chip: 48Mhz EFM8BB2 Firmware: BLHeli_S supports Dshot600 MOS: 5*6 Product characteristics: The high performance EFM8BB21F16G microprocessor is used to run up to 48MHz.The high quality 5 * 6 package MOSFET is more reliable than the 3 * 3 package MOSFET.6 layers of high...
- Page 5 TYRO99 QUICK START GUIDE 4.0 Flight controller Product characteristics: The STM32 F405 master chip can run higher PID cycle time and gyroscope.Integrating accelerometers and gyroscopes using an ICM20602 chip with SPI bus (the highest operating frequency of the gyroscope can be set to32KHz);Flight control board OSD chip, supporting DMA mode (using F4 MCU to control OSD), can use Beta Flight tuning softwarePart adjustment parameters;...
- Page 6 TYRO99 QUICK START GUIDE 5.0 Camera Case size: 25mm*25mm Weight: 9.5g Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP) Signal system: PAL/NTSC switchable Resolution ratio(horizontal center): 700TVL Video output: 1.0Vp-p/75Ω Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB...
- Page 7 TYRO99 QUICK START GUIDE 6.0 Switchable VTX Frequency control method: Button frequency control (1-8): press the button for 2 seconds to enter the frequency setting, and press the button to change the frequency CH1-8.Change the frequency band (A-E), set the frequency, press the button for 2 seconds, then press the button to change the frequency group FR (A-E).
- Page 8 TYRO99 QUICK START GUIDE 8.0 Propeller Material: PC Mounting hole: 5mm Center thickness: 8mm Quantity: 10 pairs Color: blue, red, yellow, purple, white Weight: 7.25G a pair Delivery color randomly (10 pairs of propellers are the same color) 9.0 Screws...
- Page 9 TYRO99 QUICK START GUIDE 10.Exploded view...
- Page 10 TYRO99 QUICK START GUIDE 11.Adjusting parameter 1.Click connect connection 2: Click the RX interface under UART2 under the ports option, as shown in the figure. 3: Click CONFIGURATIN to change to dshot600. 4: Click CONFIGURATIN; change to SBUs 5: Click modes, add arm and angle, drag the slider between 1300...
- Page 11 TYRO99 QUICK START GUIDE 11.Adjusting parameter 6: Push the slider to test the positive and negative rotation of the motor, such as error, 7: Click font manager, select betaflight, click upload font 8: Click setup, calibrate accelerometer -11-...
