Summary of Contents for Eachine X140HV

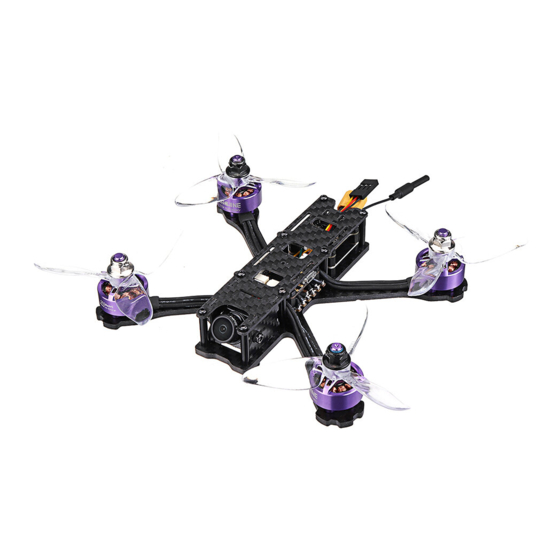

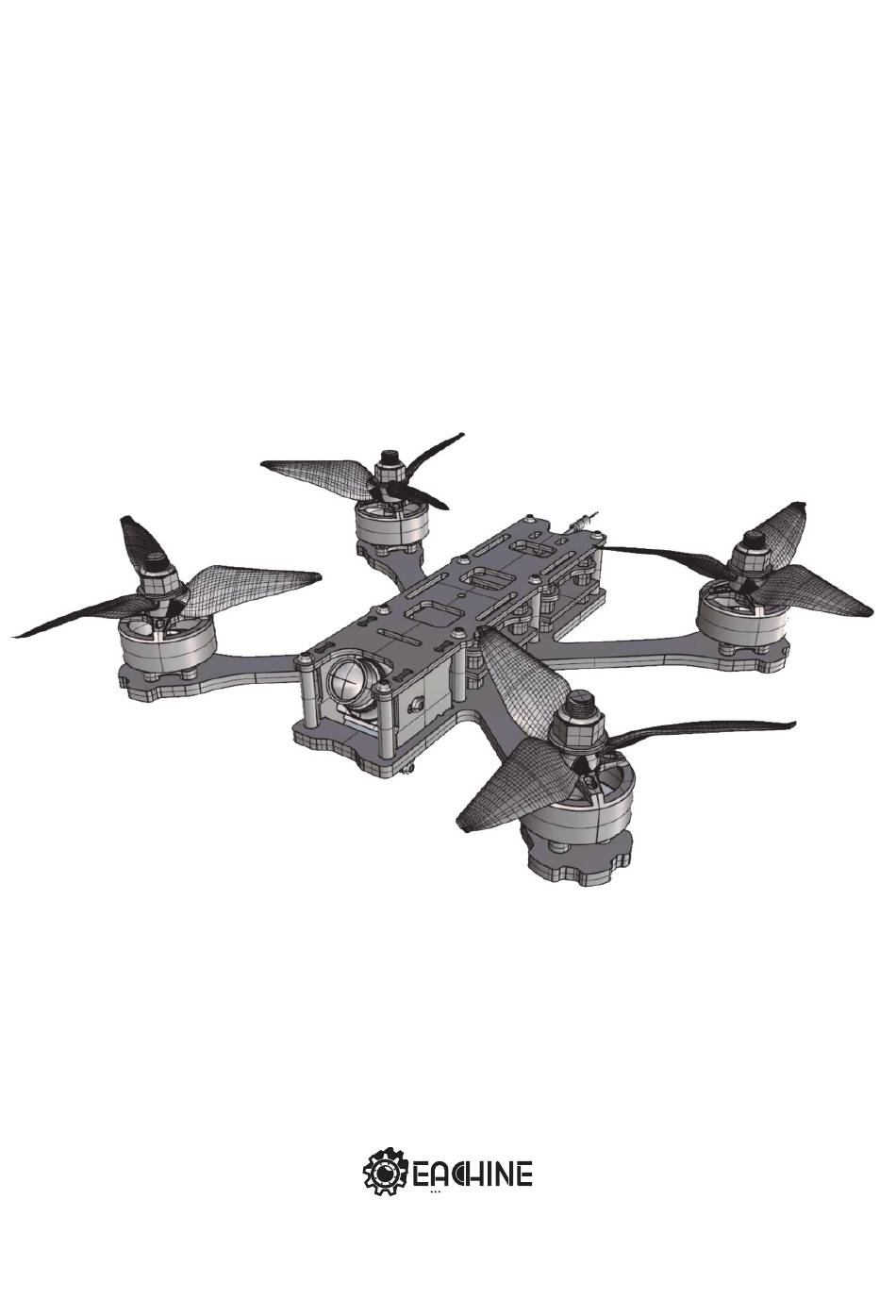

- Page 1 X140HV QUICK START GUIDE...
- Page 2 X140HV QUICK START GUIDE Package included: 1 x X140HV Frame Kit 1 x Atmosphere light strip 4 x 1507/2500KV Brushless Motor 1 x 4 In 1 20A Brushless ESC 1 x Betaflight F4 Flight Controller 1 x FOXEER Arrow MICRO PRO Camera 1 x XF5805 /5.8G 40CH 25/100/200/300mw...
-
Page 3: Table Of Contents
X140HV QUICK START GUIDE Contents 1.0 Frame kit----------------------------------------04 Motor----- ----------------------------------------04 3.0 Esc------------------------------------------------05 4.0 Flight controller---------------------------------05 5.0 Switchable VTX-------------------------------------06 6.0 Camera-----------------------------------------------06 7.0 Atmosphere light strip ------------------------------07 8.0 Motor Unlock/Lock------------------------------07 9.0 Multi functional taillight module----------------07 10.0 Traversing flight---------------------------------08... -
Page 4: Frame Kit
X140HV QUICK START GUIDE 1.0 Frame kit Wheelbase: 140mm Floor thickness: 3mm Upper plate thickness: 1.5mm Side panel thickness: 1.0mm CNC 6065 Custom Aluminum Column 2.0 Motor KV: 2500kv Number of slots: 9n12p Voltage: 2-6s Mounting hole spacing: 12*12mm Weight: 17.7g (including line) -
Page 5: Esc
X140HV QUICK START GUIDE 3.0 ESC Continuous current: 20A Peak current: 25A (10s) Bec output: NO Input voltage: 2 ~ 6 s Main control chip: 48mhz efm8bb2 Firmware upgrade: support dshot600 /blheli _ S/Oneshot125 MOS: 3*3 MOS model: pe632ba 30v53a 4.0 Flight controller... -
Page 6: Switchable Vtx
X140HV QUICK START GUIDE 5.0 Switchable VTX Support TBS SmartAudio Transmitting power: 25/100/200/300mw adjustable in three steps Frequency points: 40ch Video format: full NTSC / PAL format Input voltage: 7V ~ 26V Power consumption: +12V/600MW, 260ma Size: 25 × 20 × 4mm Weight: ≤... -
Page 7: Atmosphere Light Strip
X140HV QUICK START GUIDE 7.0 Atmosphere light strip Feature：Low power consumption, no heat, no impact on flight time.Only 10% of the power consumption of traditional LEDs. Beautiful, soft, not dazzling.Lines can be bended, folded and sheared at will. The installation is flexible and convenient for you to play freely,Long life. -
Page 8: Traversing Flight
X140HV QUICK START GUIDE 10. Traversing flight 1).Flying is more suitable for experienced pilots. 2).During the flight, please keep the flight within the video receiving range (the actual range depends on the flight environment and weather conditions). 3).During flight, please avoid crowd, animals and...
