Summary of Contents for Eachine Wizard X220HV

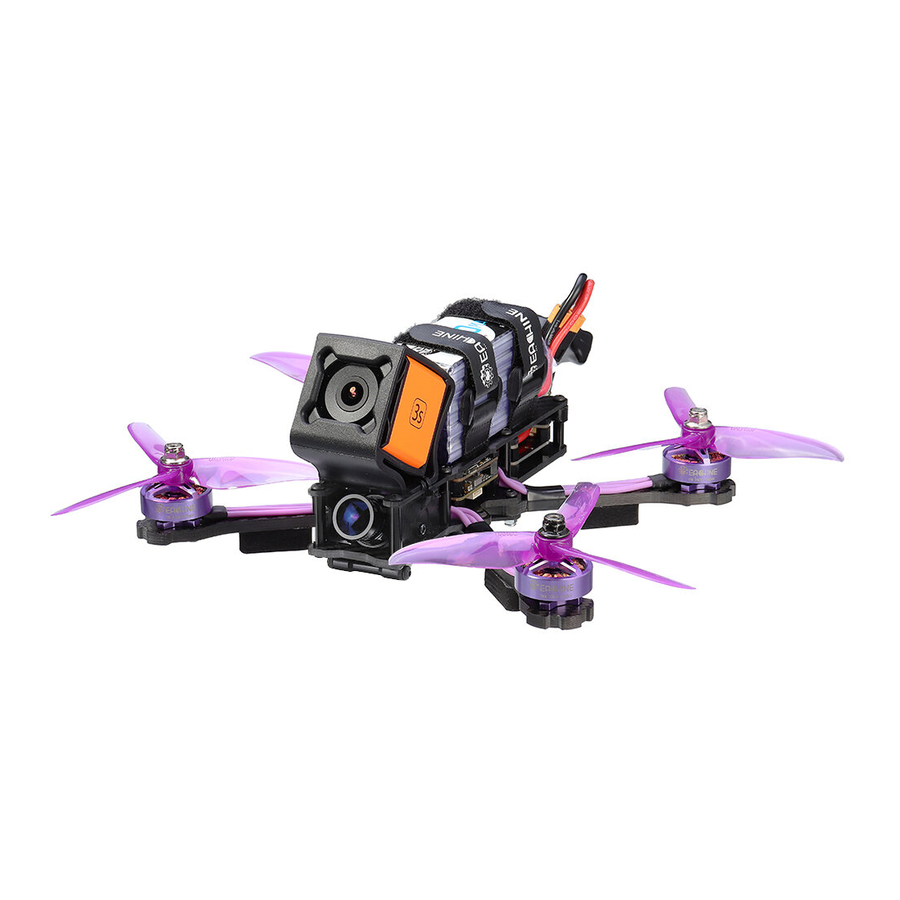

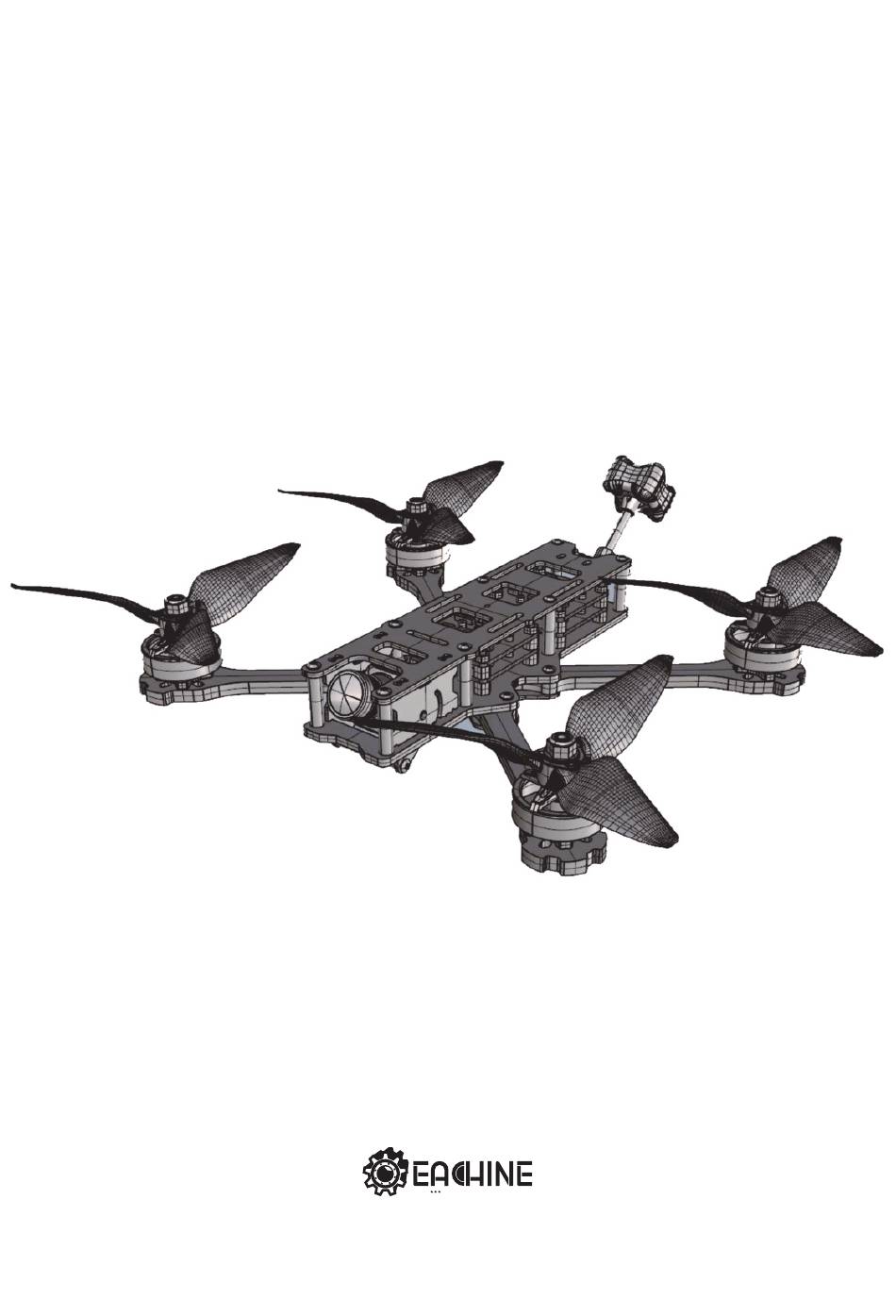

- Page 1 Wizard X220HV QUICK START GUIDE...
- Page 2 Wizard X220HV QUICK START GUIDE Package included: 1 x X220HV frame kit 2 x 2306 1650KV brushless motor CW 2 x 2306 1650KV brushless motor CCW 1 x 4 IN 1 45A BLHeli_S ESC 1 x Customized F4 flight controller Built-in OSD 1 x Foxeer arrow mini pro 2.5mm 650TVL camera...
-
Page 3: Table Of Contents
Wizard X220HV QUICK START GUIDE Contents 1.0 Frame kit----------------------------------------04 Motor----- ----------------------------------------04 3.0 Esc------------------------------------------------05 4.0 Flight controller---------------------------------05 Antenna -------------------------------------------05 6.0 Switchable VTX------------------------------------06 7.0 Camera-----------------------------------------------06 SpeedyBee bluetooth module ----------------07 9.0 110DB BB alarm buzzer---------------------------08 10.0 Motor Unlock/lock---------------------------------08 11.0 Traversing flight -----------------------------------08... -
Page 4: Frame Kit
Wizard X220HV QUICK START GUIDE 1.0 Frame kit Wheel base: 220mm Upper plate thickness: 2.0mm Frame arm thickness: 5.0mm Bottom plate thickness: 3.0mm X plate thickness: 1.5mm Camera side plate thickness: 1.5mm Camera standoffs: M3*28mm 1 PC Frame standoffs: M3*20mm 8 PCS 2.0 Motor... -
Page 5: Esc
Wizard X220HV QUICK START GUIDE 3.0 ESC Integrated PDB Working voltage: 2-6S Lipo Continuous working current: 4*45A Peak current: 4*50A (6S) Main control chip: 48Mhz EFM8BB2 Firmware: BLHeli_S Supports Dshot600 MOS: 5*6 4.0 Flight controller Main control chip: STM32F405 Sensor: MPU6000 6 axes... -
Page 6: Switchable Vtx
Wizard X220HV QUICK START GUIDE 6.0 Switchable VTX Output power and transmission distance: ≥0.5km@25mW, ≥1km to 200mW, ≥2km to 600mW Transmission power: 0mW / 25mW / 200mW / 600mW Full video format: NTSC / PAL Input voltage and power dissipation: 7V ~ 24V, + 12V /... -
Page 7: Speedybee Bluetooth Module
Wizard X220HV QUICK START GUIDE 8.0 SpeedyBee bluetooth module Support Betaflight configurator Speedybee App: iOS 10.0+; iPhone 4S, iPad3; Androd 4.3+ Output power: 0dBM Sensitivity: -94dBM External interface: BROADCAST SWITCH, TX, RX, 3-5V DC Input, GND Transmission speed: Bidirectional 1K/S Bluetooth protocol: Bluetooth Specification V4.0 BLE... -
Page 8: 110Db Bb Alarm Buzzer
Wizard X220HV QUICK START GUIDE 9.0 110DB BB alarm buzzer Working voltage: 5V Standby battery: lipo 4.2V 100mah Loudness: 110DB Size: 36 * 36mm Weight: 8g 10.0 Motor Unlock/lock Motor Unlock Put the throttle rocker at the lowest point, move the rudder rockerto the right and keep it for more than 2 seconds.
