Summary of Contents for Eachine Wizard TS130

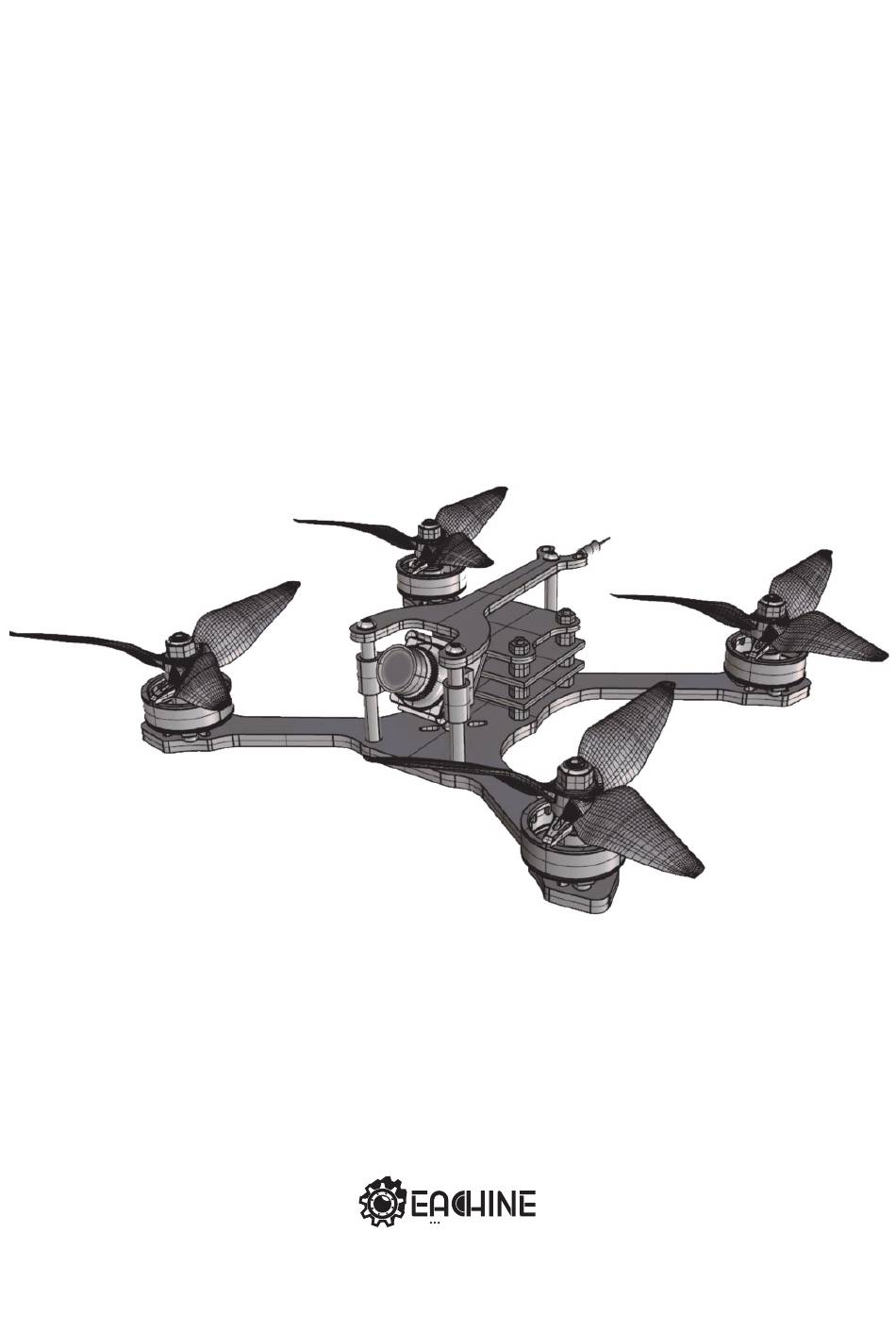

- Page 1 Wizard Ts130 QUICK START GUIDE...
- Page 2 Wizard Ts130 QUICK START GUIDE Package included: 1 x Eachine Wizard TS130 frame kit 1 x TS 20A 4in1 Brushless ESC 4 x TS1507 4100KV brushless motor 1 x F4 flight controller 1 x FOXEER Arrow MICRO PRO camera 1 x 5.8G 40CH 25mw 100mw 200mw switchable VTX...
-
Page 3: Table Of Contents
Wizard Ts130 QUICK START GUIDE Contents 1.0 Frame kit----------------------------------------04 Motor----- ----------------------------------------04 3.0 Esc------------------------------------------------05 4.0 Flight controller---------------------------------05 5.0 Switchable VTX---------------------------------06-09 6.0 Camera-----------------------------------------------09 7.0 Motor Unlock/Lock------------------------------10 8.0 Traversing flight---------------------------------10... -
Page 4: Frame Kit
Wizard Ts130 QUICK START GUIDE 1.0 Frame kit Wheelbase: 130mm Material: 3K carbon fiber Top plate thickness: 2mm Bottom plate thickness: 3mm Artist: hydrographics transfer printing 2.0 Motor Idle Current (Io/10V): 1.68A Stator Thickness: 7mm Lipo Cell: 3-4S Motor Diameter: 21.6mm Weight: 17.6g... -
Page 5: Esc
Wizard Ts130 QUICK START GUIDE 3.0 ESC Continuous current: 20A Peak current (5S): 25A Input voltage: 2-4S Supports Dshot600, Dshot300, Dshot150 Size: 27x27mm Weigjt: 3.3g 4.0 Flight controller CPU: f4STM32 F405 SCM Input voltage: 3-4S Sensor: MPU6000 SPI Built in OSD... -
Page 6: Switchable Vtx
Wizard Ts130 QUICK START GUIDE QUICK START GUIDE 5.0 Switchable VTX Input voltage: 7-24V Dimensions: 20x20mm Size: 27mm×27mm×4.5mm Adjustable 25mw / 100mw / 200mw Supports smart audio (remote OSD parameter adjustment) There are two ways to control the frequency and power of the launches: Enter the release: FEATURES->VTX SA can enter the following... - Page 7 Wizard Ts130 QUICK START GUIDE QUICK START GUIDE 5.0 Switchable VTX Seventh lines SET: Enter and select YES to confirm your BADN, CHAN, POWER settings and take effect immediately., as shown in Figure 1.2 below Figure 1.2 Eighth lines The CONFIG: function is set in, as shown in Figure 1.3 below.
- Page 8 Wizard Ts130 QUICK START GUIDE QUICK START GUIDE 5.0 Switchable VTX In the POR mode, POR FREQ: can enter into any frequency between 5300-5900, as shown in Figure 1.4. Figure 1.4 STATX: status information <2> XMM-VTX is operated by a button with three LED lights (red light CH1-8;...
-
Page 9: Camera
Wizard Ts130 QUICK START GUIDE QUICK START GUIDE 5.0 Switchable VTX Note : In the remote control, the power of 25 corresponds to the actual 25 mW, 200 corresponds to the actual 100 mW, and 500/800 corresponds to the actual 200 mW. -
Page 10: Motor Unlock/Lock
Wizard Ts130 QUICK START GUIDE 7.0 Motor Unlock/lock Motor Unlock Put the throttle rocker at the lowest point, move the rudder rocker to the right and keep it for more than 2 seconds. The blue state indicator is always on, that is unlock the motor.
