Washroom Dispenser Service and Parts Manual
Tork Elevation Liquid Skincare Dispenser
570020A; 570028A

Part Description with Replacement Instructions

Parts with SKU numbers are available for order as of the revision date on the manual. Contact an
Essity Sales Rep or the Essity Quality Coordinator to order these parts.
Replacement SKU
252380-02 NEW
205602 White
205603 Black
205502 White
205503 Black
200260 KEY

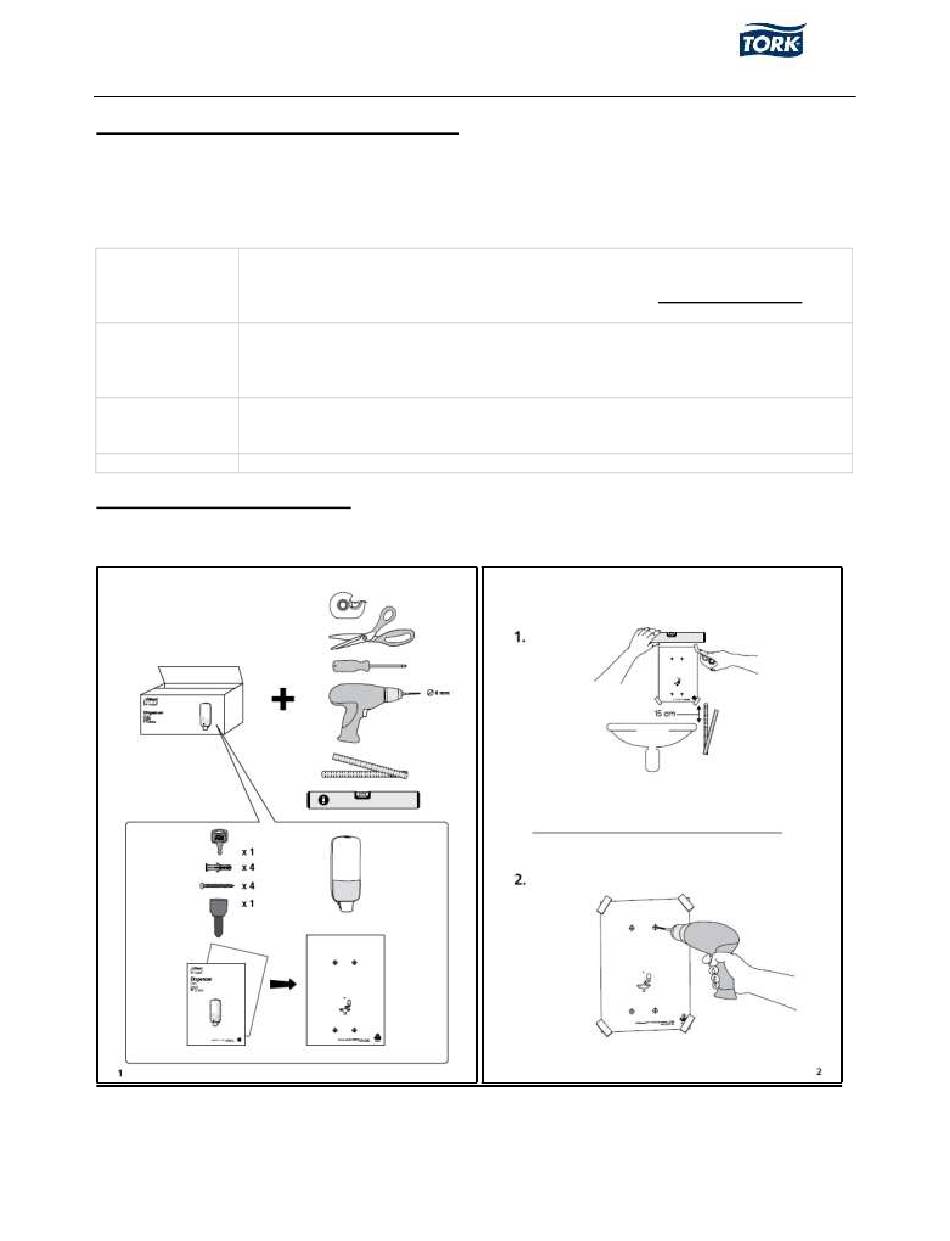

Mounting and Filling Instructions

Installation instruction sheet and mounting template are provided inside each carton.
Essity Internal
Description & Replacement Instructions
RUBBER PUMP NOZZLE
The rubber pump nozzle screws onto the top of the soap bottles. The nozzle and
soap bottle are then installed into the dispenser. See the Loading Instructions
section for more details.
PUSH BUTTON (WHITE OR BLACK)
The user presses the pump handle to dispenser soap. Open cover. Press pin on
either side to release from base. Other pin will release easily. Snap new button in
place.
ELEVATION LOCK (W HITE OR BLACK)
The lock can be replaced by pressing the plastic tabs on each side to free the lock
from the opening.
METAL KEY FOR TORK DISPENSERS
2 of 6
Revision Date: 3-12-18
