Washroom Dispenser Service and Parts Manual

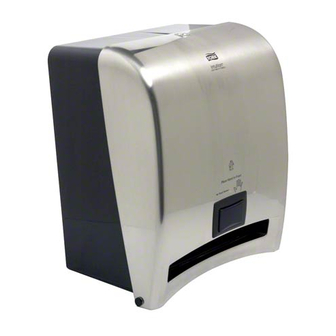

Tork Intuition Hand Towel Roll Dispenser
309605

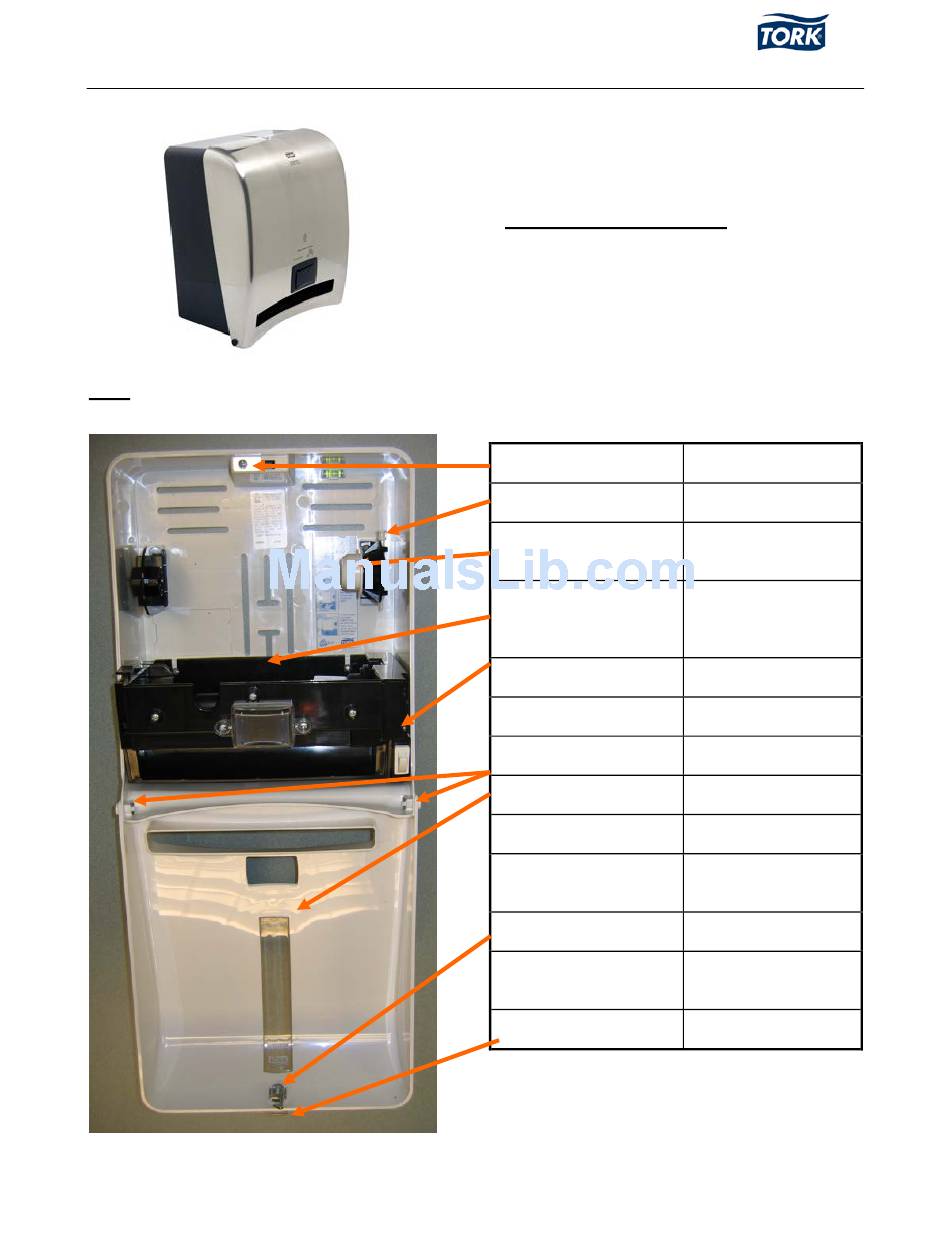

Parts
Tork Intuition Hand Towel Roll Dispenser:
H1 Intuition System: 309605 (
Dispenser Dimensions HxWxD (Inches):
14 x 12.25 x 8.125 (36.83 x 31.12 x 20.64 cm)
Roll Towel Product Options:
290094 - Tork Premium, White
290095 - Tork Advanced Soft, White
290092A - Tork Advanced, White
290089 - Tork Advanced, White
290088 - Tork Universal, Natural
290087 - Tork Advanced, White
Part Description
STRIKE PLATE FOR
LOCK
ADJUSTMENT TOOL
FOR INTUITION
INTUITION RIGHT
REPLACEMENT ROLL
ARM
CASSETTE
ASSEMBLY (motor,
sensor, feed rollers,
tear-bar, etc.)
HOOD SWITCH (part
of cassette assembly)
INTUITION HOOD PIN
(BLACK)
INTUITION HOOD PIN
(WHITE)
TORK INTUITION
HOOD ASSM WHITE
TORK INTUITION
HOOD ASSM BLACK
TORK INTUITION
HOOD ASSM
NICKELITE
TORK LOCK
200261 KEYHANDLE
FOR ALL TORK DISP
(INC.WT)
200260 KEY FOR ALL
TORK DISPENSERS
1 of 11
Revision Date: 10-8-12
Nickelite)
Replacement SKU
543434
INTII ARM
3096CAS (White or
Black)
9506CAS (Nickelite)
INT HOOD PIN (BLK)
INT HOOD PIN
(WHT)
9606COV
9609COV
9605COV
200262-20
200261 KEYHANDLE
200260 KEY
Advertisement
Table of Contents
Related Manuals for Tork Intuition
Summary of Contents for Tork Intuition
- Page 1 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 Tork Intuition Hand Towel Roll Dispenser: H1 Intuition System: 309605 ( Nickelite) Dispenser Dimensions HxWxD (Inches): 14 x 12.25 x 8.125 (36.83 x 31.12 x 20.64 cm)
- Page 2 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 Part Description with Replacement Instructions Parts with SKUs listed are available for order as of the revision date on the manual. Contact an SCA Sales Rep or the SCA Tissue Quality Coordinator to order these parts.
- Page 3 309605. See above for instructions. AVAILABLE THROUGH SCA CUSTOMER SERVICE ONLY. 200262-20 TORK LOCK - The lock can be replaced by removing the U-clip from the inside of the dispenser with a pliers or screwdriver. 200261 KEYHANDLE SCA 200261 KEYHANDLE FOR ALL TORK DISP (INC.WT)
- Page 4 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 4 of 11...
- Page 5 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 5 of 11...
- Page 6 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 Tork Intuition Battery Life Tips • Purchase good quality, name brand replacement batteries. You usually get what you pay for. • Don’t mix batteries. Never mix brand names or used batteries with new. Always install a new set of three when changing batteries.
- Page 7 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 7 of 11...
- Page 8 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 8 of 11...
- Page 9 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 9 of 11...
- Page 10 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 10 of 11...
- Page 11 Washroom Dispenser Service and Parts Manual Tork Intuition Hand Towel Roll Dispenser 309605 Revision Date: 10-8-12 309605 - Tork Intuition Hand Towel Roll Dispenser Mounting Instructions 11 of 11...
