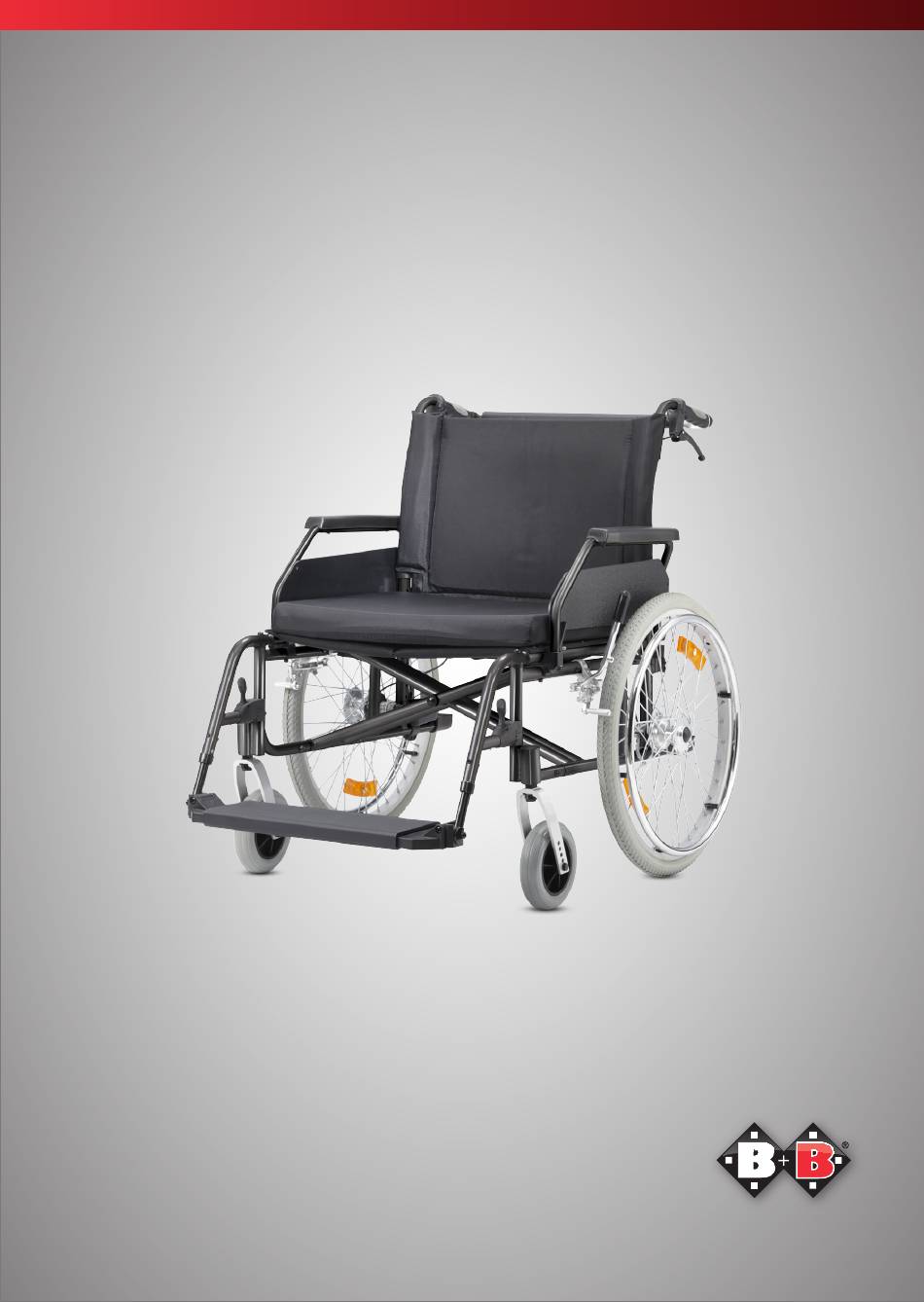

- Page 1 Instruction Manual Bedienungsanleitung Econ XXL Enjoy mobility. Enjoy mobility.
-
Page 2: Table Of Contents
Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL Index Preliminary Remark Asseccories 1.1. Signs and Symbols 5.1. Anti-tipping wheels Important Safety Instructions 5.2. Therapy table 2.1. General Safety Instructions 5.3. Safety belt 2.2. Anti-tip wheels (optional) 2.3. Use on Public Roads 6.1. - Page 3 2. Important Safety Instructions 2.1. General Safety Instructions Dear User, With the purchase of your B+B XXL-wheelchair Econ XXL you have • To avoid falls and dangerous situations, you should first practice received a German high quality product which sets standards through driving your new wheelchair on level, unobstructed ground.
- Page 4 Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL 2.2. Anti-tip wheels (optional) • The passive lighting (reflectors) of your wheelchair must always be visible to other road users. • The wheelchair must only be used to transport one person. The The anti-tip wheels prevent the wheelchair from tipping backwards.
- Page 5 Econ XXL 2.5. Indications for use 2.7. Declaration of conformity Walking disability or distinct walking impairment due to: As manufacturer of the product, B+B declare that the “Econ XXL” wheelchair complies fully to the requirements of the European Directive • paralysis 93/42/EWG (EEC) for medical products.
- Page 6 Model no.: 1910 2015-11 Max. weight capacity: 250kg Model: Econ XXL - seat width 70cm Supply, assembly and instruction of use of the wheelchair are done by EAN 13 a qualified medical devices dealer.
-
Page 7: Assembly/Adjustments
Risk of entrapment! • pre-assembled wheelchair 3.4. Summary 4.1 Folding and unfolding Econ XXL product overview (fig. 2): Push handles Delivery Your new B+B wheelchair is delivered assembled and folded in the Push bar original carton by B+B. -
Page 8: Leg Rests
4.2. Leg rests When you get off your wheelchair make sure you The Econ XXL is equipped with removable leg rests (fig. 08). NEVER step on the foot plate under no circumstances! Both leg supports are supplied with the foot plates attached. The foot plates on both leg supports can be folded upwards in the sitting position. -
Page 9: Horizontally Adjustable Leg Rests (Optional)
Move the cushion into the required position. • It is possible to equip your Econ XXL wheelchair with height adjustable Re-tighten the screw; make sure it is firmly seated. side parts. The height-adjustable side parts can be fitted, removed and swivelled in the same way as the standard side parts. -
Page 10: Brakes
Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL Height adjustment: • The parking brakes effect only one driving wheel at a time. • Pay attention to have the same air pressure on both driving wheels • Press the pushbutton (fig. 21) in order to move the armrest into the to achieve a directional stability. -
Page 11: Seat Height
Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL 4.5. Seat height Adjustment of the drum brakes The basic adjustment of the drum brake is carried out on the rope clamping screw. The final adjustments are carried out with an adjusting There are 5 positions for tailoring the seat height to the user‘s... -
Page 12: Wheels And Tyres
Steering Wheels 5.3. Safety belt Your Econ XXL has puncture proof PU steering wheels without a valve 7“ in diameter (fig. 28). Faulty or worn out wheels must be changed by an qualified mobility dealer. If required, a safety belt is available as an accessory. This is fitted onto the side frame of the wheelchair with the side part either temporarily 5. -
Page 13: Use
At first fold up the footrests or take off the leg rests. entrapment! • Move the Econ XXL and the current or intended seat together front to front if possible and decelerate the Econ XXL • Should you want to transfer from or to another wheelchair or rehabilitation stroller, secure this one first by activating the parking 6.1. -
Page 14: Driving
Wheelchairs have just limited tipping or slipping security. You have to be extra careful when braking, approaching or turning round on slopes Econ XXL is equipped with reflectors (passive lighting) or downward slopes. If you lean forward too much this will increase the •... -
Page 15: Technical Data
Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL 7. Technical data Weigths Dimensions Max. weight capacity (kg): Total length with leg rests 1100 Unloaded weight (kg): 34,8 - 37,5 (mm): Weight without Width (mm): 820 - 920 attachments (kg): 27,6... -
Page 16: Maintenance Tips For Users
Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL 8. Maintenance tips for users Equipment Folding mechanism: doubled crossbrace 8.1. Cleaning and disinfection Side parts:: desk, can be swung away and removed • The frame and the paneling of the wheelchair can be cleaned with (optionally height adjustable) a moist cloth. -
Page 17: Inspection Of Tires
Should the wheelchair be faulty or defective, it should be brought to an authorized dealer for repair without delay. The Econ XXL is appropriate for use by others. For use by others, the Repair and replacement of parts are carried out by an authorized wheelchair must first be thoroughly cleaned and disinfected according mobility dealer. -
Page 18: Transport
Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL 13. Transport Anchored 4-point restraint systems must be used to secure the wheelchair in the vehicle.If you have any queries about securing your product in a vehicle for transporting disabled people, please contact You can determine whether or not your wheelchair is approved for use the B+B customer service department on +49 (0)700/60007070. - Page 19 Tip! In spite of careful research and editing, incorrect information may have crept into our operating manuals. The current version of each instruction manual is ready for download at the B+B website: Model: Econ XXL www.bischoff-bischoff.com Model number: Notes Serial number:*...
- Page 20 Econ XXL | XXL-wheelchair XXL-wheelchair | Econ XXL Notes 07.09.2017...
- Page 21 Bischoff & Bischoff GmbH Becker-Göring-Straße 13 D-76307 Karlsbad www.bischoff-bischoff.com...
