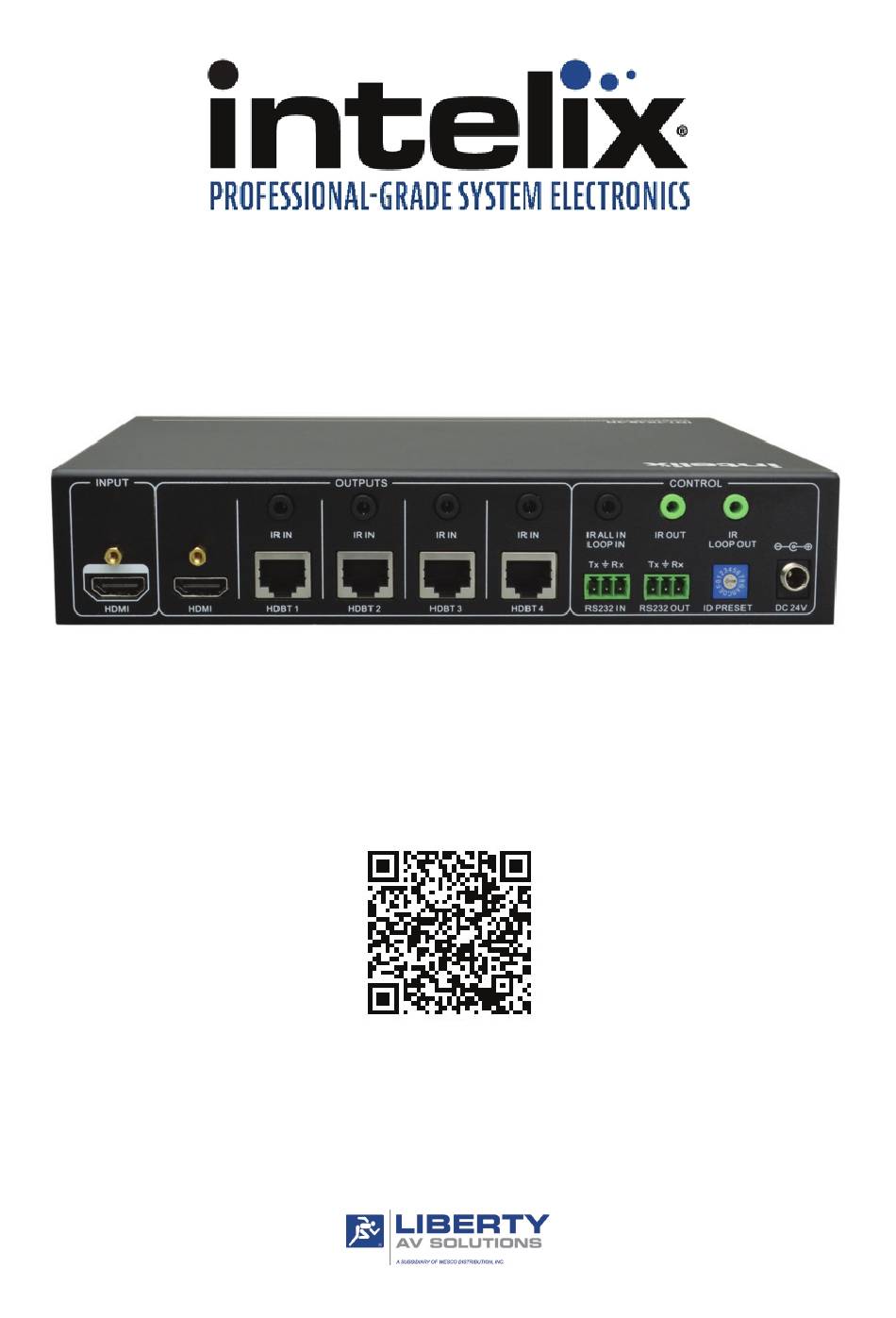

INT-1X4B-1H Quick Install Guide
This guide is for quick installati on only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 181120
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intelix INT-1X4B-1H
Summary of Contents for Intelix INT-1X4B-1H
- Page 1 INT-1X4B-1H Quick Install Guide This guide is for quick installati on only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet...
-
Page 2: Product Overview
The Intelix INT-1X4B-1H 1:4 HDBaseT distribution amplifier accepts a single HDMI input and splits into four HDBaseT outputs. The INT-1X4B-1H is designed with an HDMI loop out which is intended to cascade to additional INT-1X4B-1H units to distribute to multiple displays via HDBaseT. It supports video resolutions up to 4K@60Hz / 4:2:0 / 8bit deep color and all HDMI audio formats. -
Page 3: Front Panel View
4. EDID - Dip switch setti ng for EDID management • L.RES - The INT-1X4B-1H reads EDID from all connected displays, and then the source device will automati cally obtain the EDID which contain the lowest resoluti on •... -
Page 4: Back Panel View
3. IR CONTROL - 3.5mm IR input port for connecti on to IR receiver or 3rd party IR system • IR ALL IN/LOOP IN - 3.5mm IR IN jack for connecti ng an IR receiver or cascading to a previous INT-1X4B-1H in a cascading topology •... - Page 5 7. Connect a display device or second INT-1X4B-1H to the HDMI output using an HDMI cable that is less than or equal to 5 meters in length. For a display that further away, it is highly recommended to utilize the HDBaseT outputs.
- Page 6 INT-1X4B-1H Quick Guide Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the INT-1X4B-H, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
-
Page 7: Technical Specifications
INT-1X4B-1H Quick Guide Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle Connector HDBaseT Outputs Four (4) Shielded RJ45 Female HDMI Output One (1) HDMI Type A Receptacle Connector RS232 In One (1) 3-Pole/3.5mm Euroblock RS232 Out One (1) 3-Pole/3.5mm Euroblock... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
