UnionSpecial TCP1 Owner's Manual & Installation Instructions

Download this manual

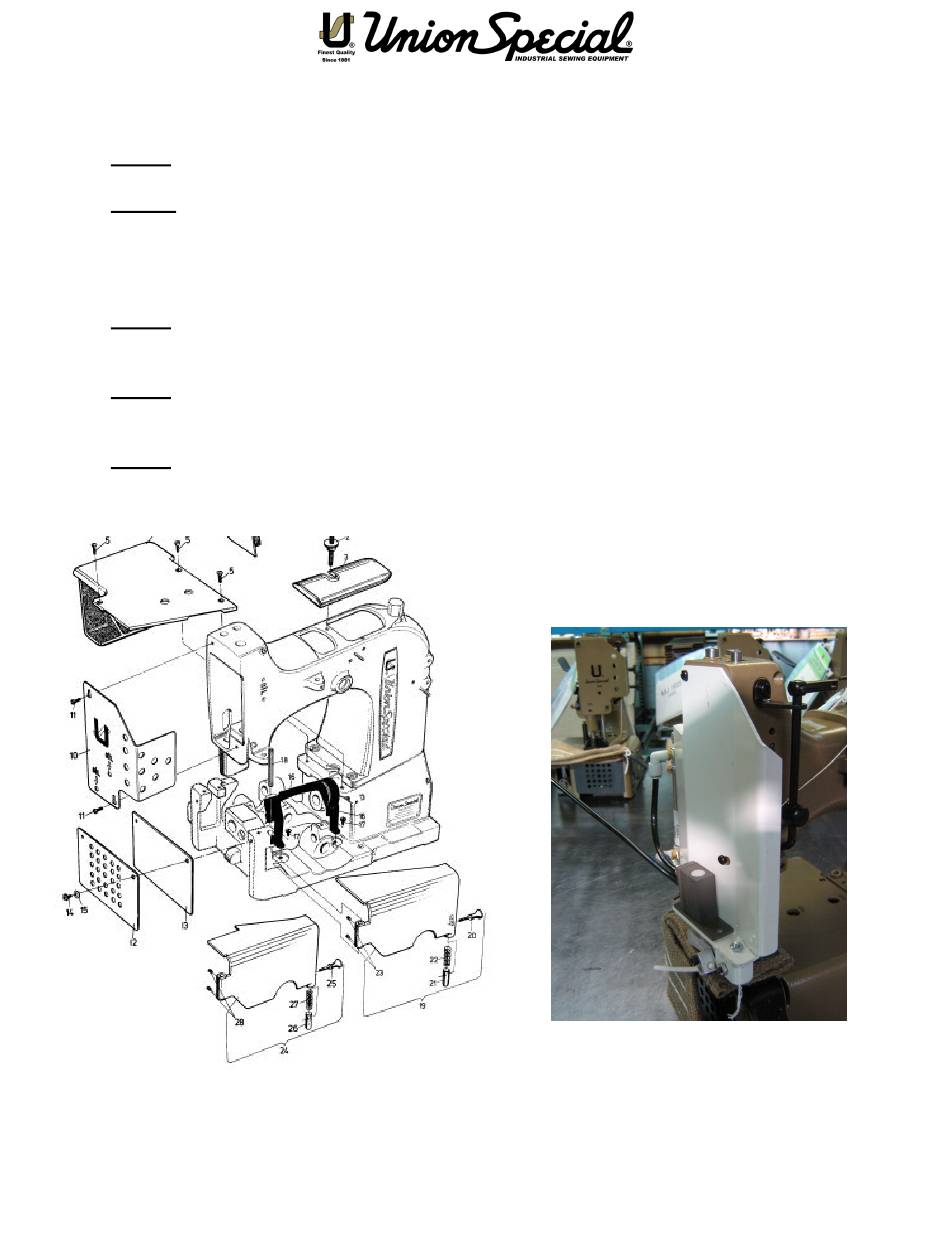

Installation of the TCP1

Step 1: Remove face cover # 80887A (#10 below)

Step 2: Attached TCP1 with same screws from face cover (#below). Tighten securely

into place.

Note: position the TCP1 so that the air cylinder is on the left hand side of the sewing

head.

Step 3: Attach air filter/regulator where best suited for operation. Make sure that the

tubing is NOT pinched and clear of moving parts.

Step 4: You will need to supply air and fittings for filter/regulator with ¼" port size NPT

with following specs: Max air pressure: 150 psi, 125 deg F, 18 cfm air supply

Step 5: Once system is installed, adjust pressure on regulator by turning the dial.

Counter clockwise rotation to decrease pressure, clockwise to increase.

Set at 40-60 psi

Page 1 Step 2: Attached TCP1 with same screws from face cover (#below). Tighten securely into place. Note: position the TCP1 so that the air cylinder is on the left hand side of the sewing head. Step 3: Attach air filter/regulator where best suited for operation. Make sure that the tubing is NOT pinched and clear of moving parts.
Page 2 Operation of the TCP1 The pusher arm starts in the DOWN position. When the bag is fed into the machine, the bag will activate the air cylinder which will retract the wand. When the bag passes the wand, the pusher arm returns to the DOWN position pushing the chain into the knives.
