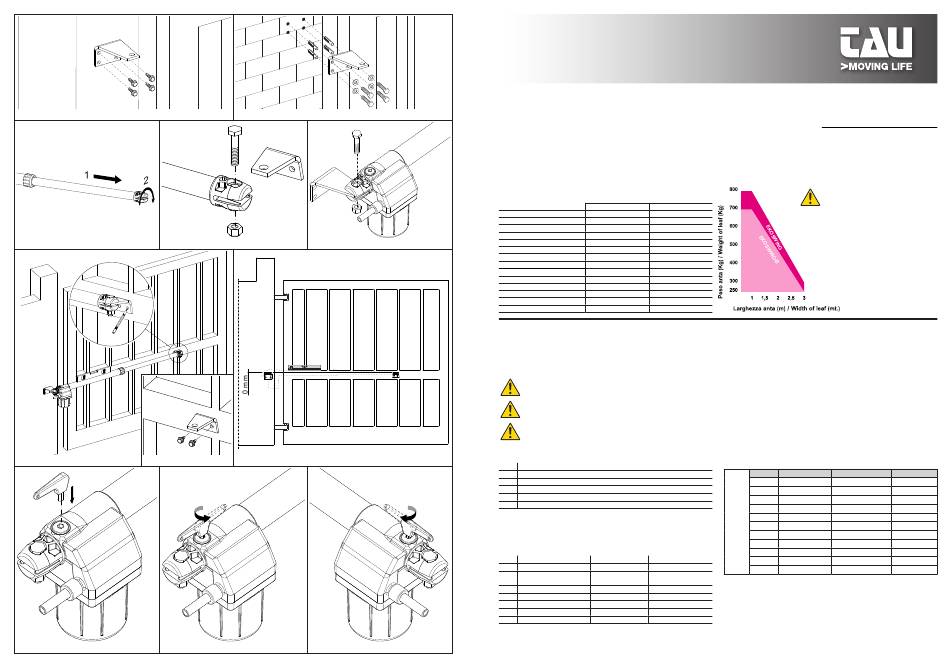

tau Ekoswing Use And Maintenance Manual

pict. 6
pict. 8 pict. 9
pict. 11 pict. 12
LEFT
180°
pict. 14 pict. 15
EKOSWING
Swing Gate Operator - Residential/Communities
GB - Translation of original instructions
D_MNL0EKOSWING 23-11-2012 - Rev.05
pict. 7
The data described in this handbook are purely a guide. TAU reserves the right to change them in any moment.
The manufacturer reserves the right to modify or improve products without prior notice. Any inaccuracies or errors found in this handbook will be corrected
in the next edition.
When opening the packing please check that the product is intact. Please recycle materials in compliance with current regulations.
This product may only be installed by a qualified fitter. The manufacturer declines all liability for damage to property and/or personal injury
deriving from the incorrect installation of the system or its non-compliance with current law (see Machinery Directive).
TECHNICAL CHARACTERISTICS OF THE EKOSWING SERIES
Power input
Motor power input
Frequency
Capacitor
Absorbed current (no load)
pict. 10 Absorbed power (no load)
Motor speed (no load)
Useful travel
Thermal protection trips at
Reduction ratio
Operating temperature
Weight
Motor IP
Work cycle
90° travel time
DESCRIPTION
The EKOSWING automated system for swing gates is an electro-mechanical non-
reversing actuator that transmits motion to the leaf via a worm screw system.
The actuator is available in 12V DC and 230V AC versions.
The non-reversing system ensures the leaf is mechanically locked when the motor is
not operating. A convenient and safe release system with customised key makes it
possible to manually move the leaf in the event of a malfunction or of a power failure.
ATTENTION:
ACTUATOR PARTS (pict.1)
pict. 13
Pos. Description
RIGHT
1
2
3
180°
4
5
DIMENSIONS (pict.2)
INSTALLATION (pict.3)
Electrical set-up (standard system - EKOSWING)
Pos. Description
1
2
3
4
5
6
7
Notes:
• Use suitable tubes and/or hoses to lay electric cables
• Choose short routes for cables and keep power cables separate from control
pict. 16
cables.
EKOSWING EKOSWING-B
230V AC ±10% 230V AC ±10%
230V AC ±10% 18V DC
50/60 Hz 50/60 Hz
8 µf -
1,2 ÷ 1,7 A 0,6 A
280 W 100 W
900 rpm 2100 rpm
443 mm 443 mm
150 °C (autoreset) -
1/27 1/34
from –20 °C to +55 °C from –20 °C to +55 °C
6,9 Kg 6,8 Kg
IP 53 IP 53
40 % 100 %
17 sec. 15 sec.
The correct operation and the declared specifications only apply if
TAU accessories and safety devices are used.
In the absence of a mechanical clutch, the use of a control unit with an
adjustable electronic clutch, or the installation of a sensitive edge, is
required in order to ensure crush-proof safety.
The EKOSWING automated system was designed and built for con-
trolling vehicle access. Avoid any other use whatever.
Actuator
Release device
Rod
Wing connection bracket
Rear bracket
Cables (230V AC) Cables (12V DC)
Actuator 4x1,5 mm² 2x2,5 mm² + 3x0,5 mm²
3x1,5 mm² 3x1,5 mm²
Control unit
(power supply) (power supply)
TX photocells 4x0,5 mm² 4x0,5 mm²
RX photocells 2x0,5 mm² 2x0,5 mm²
Key-operated selector switch 3x0,5 mm² 3x0,5 mm²
Flashing light and aerial 2x1 mm² + 1RG58 2x1 mm² + 1RG58
Mechanical stops - -
USE AND MAINTENANCE MANUAL
For The installation of blank swing gates,
functioning cannot be guaranteed in the
presence of wind.
Preliminary checks
Prior to installing the automation, make all structural modifications in order to ensure
safety distances and protect and segregate areas in which people may be exposed to
the risk of crushing, shearing, dragging or similar dangers.
• Make sure the existing structure is sufficiently sturdy and stable;
• the mechanical parts must conform to the provisions of current Safety Standards;
• leaf length in compliance with the actuator specifications;
• regular and uniform movement of the leaves, without any friction and dragging
during their entire travel;
• stiff hinges in good conditions;
• presence of both opening and closing mechanical limit stops;
• presence of an efficient earthing for electrical connection of the actuator.
Perform any necessary metalwork job before installing the automated system.
The condition of the gate structure directly affects the reliability and safety of
the automated system.
Installation dimensions (pict.4)
Determine the fitting position of the actuator with reference to pict.4.
Check with care if the distance between the open leaf and any obstacles (walls, fenc-
es etc.) is higher than the actuator dimensions.
X° A (mm) B (mm)
E
90 150 200 ÷ 260
K
90 200 160 ÷ 220
90 250 120 ÷ 220
O
90 300 85 ÷ 155
S
100 150 175 ÷ 235
W
100 180 140 ÷ 205
100 200 120 ÷ 190
I
100 230 95 ÷ 160
N
110 175 120 ÷ 190
G
110 200 95 ÷ 160
110 225 60 ÷ 130
When measurement "C" is greater/smaller than 20 mm, increase/diminish measure-
ment "B" by the difference (e.g.: if C= 25mm, increase "B" by 5mm), making sure that
it does not exceed the limits shown in the table.
If the pillar dimensions or the hinge position do not allow the installation of the actua-
tor, a niche on the pillar, as shown in pict. 5, should be created in order to maintain
the A dimension as determined. The niche should be dimensioned in such a way to
enable easy installation, actuator rotation and operation of the release device.
