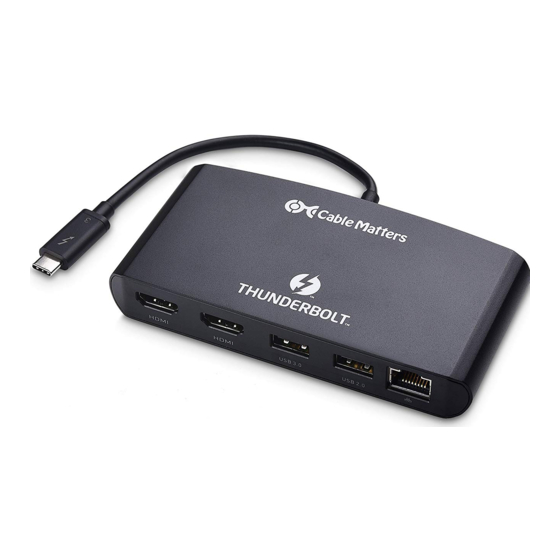

- Page 1 Thunderbolt™ 3 Multiport Adapter with Dual 4K@60Hz HDMI®, USB & Gigabit Ethernet Model 107016 Check for Thunderbolt 3 driver information at http://kb.cablematters.com User Manual support@cablematters.com...
-
Page 2: Table Of Contents
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® Table of Contents 1. INTRODUCTION ..............1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ................ 2 2.3 Product Features 2.4 System Requirements 3. -
Page 3: Introduction
1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Thunderbolt and the Thunderbolt Logo are trademarks of Intel Corporation in the U.S. and/or other countries. -
Page 4: Product Description
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 2.2 Product Description The Cable Matters® Thunderbolt™ 3 Multiport Adapter with Dual 4K HDMI, USB & Gigabit Ethernet is an essential companion for a computer with a Thunderbolt™ 3 port. Connect USB peripheral devices, to a wired Gigabit network, and dual 4K displays with HDMI. -
Page 5: Connection And Operating Instructions
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3. Connection and Operating Instructions 3.1 Installation Checklist Check that your computer port is wired to support 40Gbps (some only support 20 ✓ Gbps). A 40Gbps Thunderbolt port is required to support dual 4K monitors. Contact the computer manufacturer or contact support@cablematters.com. -
Page 6: Connecting The Thunderbolt 3 Adapter
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3.3 Connecting the Thunderbolt 3 Adapter 1) Connect the Adapter to a Thunderbolt 3 port on your computer 2) Wait up to 20 seconds while any additional drivers are automatically installed 3) Windows computers must approve the Adapter with the Intel Thunderbolt software for the initial connection 4) Mange the settings of connected Thunderbolt devices from the Thunderbolt software in the Windows taskbar... -
Page 7: Connecting Dual Displays
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3.4 Connecting Dual Displays to the Adapter Connection Instructions HDMI 1) Connect HDMI cables (sold separately) to the Adapter 2) Connect the cables to the HDMI input of the display 3) Connect the Adapter to the Thunderbolt 3 port on the computer 4) Select the HDMI video and audio input from the display menu 5) Select the audio output from the computer Display Configuration... -
Page 8: Connecting To A Lan Or Router
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3.5 Connecting to a LAN or Router RJ45 Link LED Status LED Green Yellow Installation Instructions 1) Connect an RJ45 patch cable to the Adapter (Cat 6 recommended for Gigabit Ethernet) 2) Connect the patch cable to a LAN or router port 3) Connect the Adapter to a Thunderbolt 3 port on the computer 4) Check the documentation of your LAN or router to configure network access 5) Link and Status LED’s should blink to indicate a live connection... -
Page 9: Connecting Usb Peripheral Devices
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3.6 Connecting USB Peripheral Devices USB 3.0 USB 2.0 Installation Instructions 1) Connect a USB 2.0 or 3.0 device to the Adapter (cables sold separately) 2) Connect the Adapter to a Thunderbolt 3 port on the computer 3) The device should be recognized after downloading any needed drivers 4) Always Safely Remove or Eject the device before unplugging Troubleshooting Tips... -
Page 10: Troubleshooting Tips For Windows
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3.7 Troubleshooting Tips for Windows Check for the Thunderbolt logo on the computer port. This adapter is NOT compatible • with a USB-C port that is not Thunderbolt 3 compatible. The Thunderbolt 3 port must be wired for 40 Gbps to support dual 4K displays •... -
Page 11: Troubleshooting Tips For Mac
Thunderbolt™ 3 Multiport Adapter with Dual HDMI® 3.8 Troubleshooting Notes for Mac Check for the Thunderbolt logo on the computer port. This adapter is NOT compatible • with a USB-C port that is not Thunderbolt 3 compatible. The Thunderbolt 3 port must be wired for 40 Gbps to support dual 4K displays •... -
Page 12: Technical Specifications
Note: Specifications are subject to change without notice 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
