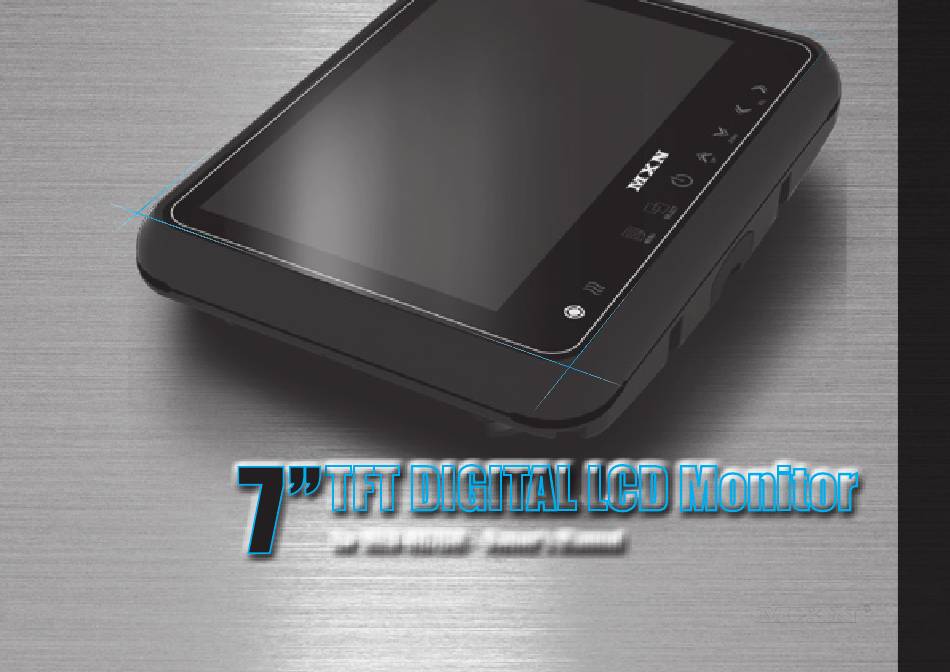

- Page 1 TFT DIGITAL LCD Monitor for MXN-HD7DM - Owner’s Manual...
-
Page 2: Table Of Contents
· · · · · · Package Contents Operation System Setting Function Picture Camera Set up Normal/Mirror Auto Picture Scan Camera Trigger Distance Marker Adjust Scan ON/OFF Function Lock ON/OFF Function Connection Installation Monitor installation with Stand bracket & Sunvisor Installation of heavy duty mounting brackets Specification... -
Page 3: Package Contents
7" TFT DIGITAL LCD Moniter PACKAGE CONTENTS CABLE CLIP BRACKET SCREWS MONITOR SUNVISOR SUNVISOR SCREWS STAND BRACKET MANUAL ITEM Q’TY MONITOR SUNVISOR SUNVISOR SCREW STAND BRACKET BRACKET SCREW CABLE CLIP CAMERA INPUT CABLE CAMERA INPUT CABLE MANUAL Owner’s Manual... -
Page 4: Operation
OPERATION A . DAY/NIGHT SENSOR (CDS) Automatic brightness control sensor. B . HEATER LAMP Orange color will be illuminated in case heater function is activated. C . MENU Press [MENU] button for system setting. D . SELECT Press [SELECT] button to select the respective camera channel. (CAM1-CAM2-CAM3-CAM1..) E . -
Page 5: System Setting
7" TFT DIGITAL LCD Moniter SYSTEM SETTING FUNCTION DIMMER (Automatic Brightness Control) FUNCTION Select AUTO to have Automatic or Manual brightness of the monitor. DIMMER AUTO/OFF NIGHT BRIGHT REMARK: By activating DIMMER AUTO function, the monitor adjusts the brightness LANGUAGE ENGLISH/…... -
Page 6: Picture
SYSTEM SETTING PICTURE PICTURE Press [ ] button to adjust preferred of the monitor. LEFT/RIGHT PICTURE CONTRAST 50 (0-100) BRIGHTNESS 50 (0-100) COLOR 50 (0-100) TINT 50 (0-100) CAMERA SET UP CAMERA SET UP TRIG. DELAY CAM1 TRIG. DELAY 2 SEC (0-9) When a wire is connected to a pulse DC power signal (e.g. -
Page 7: Normal/Mirror
7" TFT DIGITAL LCD Moniter NORMAL/MIRROR NORMAL/MIRROR NORMAL/MIRROR CAM1 NORMAL/MIRROR CAM2 NORMAL/MIRROR Each camera picture (CAM1/CAM2/CAM3) can be switchable as NORMAL/MIRROR image. CAM3 NORMAL/MIRROR UP/DOWN UP/UPSIDE DOWN UP/UPSIDE DOWN Camera pictures can be switchable as UP/DOWN image. AUTO PICTURE SCAN AUTO PICTURE SCAN Each scanning time of CAM1/CAM2/CAM3 can be selected. -
Page 8: Camera Trigger
SYSTEM SETTING CAMERA TRIGGER CAMERA TRIGGER TRIGGER 1 CAM1/CAM2/CAM3 TRIGGER 1/2/3 (Trigger source selection) TRIGGER 2 CAM2/CAM3/CAM1 Select the required trigger source at CAM1/CAM2/CAM3. TRIGGER 3 CAM3/CAM1/CAM2 CAM1 DIST. MARKER MARKER ON/OFF REMARK SPEED SWITCH ON/OFF FREQUENCY 67 Hz TRIGGER PRIORITY: TRIGGER 1 > TRIGGER 2 > TRIGGER 3 UNDER FREQ. -
Page 9: Distance Marker Adjust
7" TFT DIGITAL LCD Moniter DISTANCE MARKER ADJUST User can adjust location of distance marker. At Power mode, select distance marker by pressing [ UP/DOWN ] buttons. When color of distance markers is seen as color, user can adjust the lines DOWN LEFT/RIGHT When both color of distance markers are seen as... -
Page 10: Scan On/Off Function
SYSTEM SETTING SCAN ON/OFF FUNCTION CAM1 CAM2 CAM3 Power-ON mode, hold [ ] buttons pressed for 4 seconds to activate Auto Scan SCAN SCAN SCAN Picture function. During the auto scanning mode, press [ ] button for 4 seconds to inactivate Auto Scan Picture function. -
Page 11: Connection
7" TFT DIGITAL LCD Moniter CONNECTION 7” TFT DIGITAL LCD Monitor TRIGGER 1- Green TRIGGER 2- White TRIGGER 3- Blue Speed Switch(TACHO SIGNAL)- Orange Ground- Black Main power 12V / 24V DC via ignition (+15)- CAMERA INPUT Camera 1(Option) +12V DC OUTPUT, AUDIO INPUT HEATER &... -
Page 12: Installation
INSTALLATION MONITOR installation with STAND BRACKET & SUNVISOR Remove a protection tape and attach STAND BRACKET into stand place, then fix it with the supplied screws. Connect STAND BRACKET with monitor and adjust height/angle. Attach SUNVISOR to the MONITOR and fix it with the supplied screws. Connect CAMERA INPUT CABLE to the MONITOR. -
Page 13: Installation Of Heavy Duty Mounting Brackets
7" TFT DIGITAL LCD Moniter Installation of heavy duty mounting brackets MONITOR can be connected with different type of heavy duty mounting brackets. Please check the compatibility in advance, then please follow installation as described below. TYPE A(option) TYPE B(option) 30mm 40mm 38mm... -
Page 14: Specification
Storage Temp. -30˚C to + 85˚C Impact Rating Camera Connector 4-pin mini DIN (MXN configuration) Housing Soft black(Al12) ON-Screen Display Volume · Brightness · Color · Contrast · Tint · CAM Screen 1/2/3 · CAM Trigger 1/2/3 · Heater ·... - Page 15 7" TFT DIGITAL LCD Moniter MEMO Owner’s Manual...
- Page 16 TFT DIGITAL LCD Monitor for MXN-HD7DM - Owner’s Manual...
