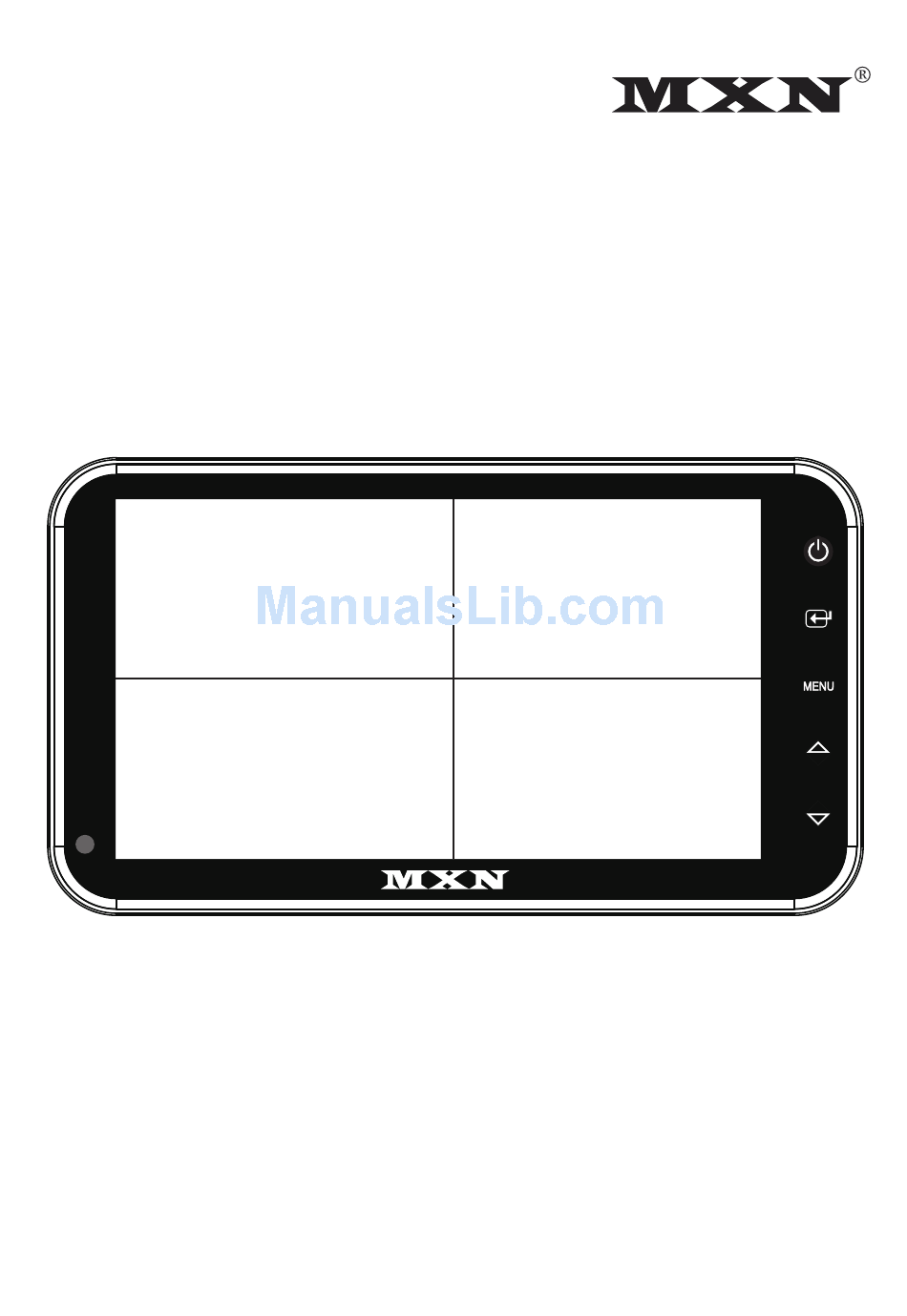

- Page 1 OWNER’S MANUAL 7” Quad Digital LCD monitor for all around vision CAM1 CAM2 CAM3 CAM4 MXN-7DMQ Model : MXN-7DMQ Design and Specifications are subject to change without notice.
-
Page 2: Table Of Contents
Model : MXN-7DMQ INDEX Safety Instructions ..03 Package Contents ..04 Operation ..05 System Setting ..07~14 Camera setting ..07 Trigger setting ..08 Split setting ..10 Auto Scan setting ..12 Day/Night setting ..12 Advanced menu .. -
Page 3: Safety Instructions
Safety Instructions WARNING To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. -
Page 4: Package Contents
7” Quad Digital LCD monitor for all around vision CAM1 CAM2 CAM3 CAM4 MXN-7DMQ MXN-7DMQ Model : MXN-7DMQ Design and Specifications are subject to change without notice. (RAIL TYPE) FIXING BRACKET USERS MANUAL SUN VISOR SCREW KIT - 4 -... -
Page 5: Operation
Operation POWER SELECT MENU DOWN DAY/NIGHT SENSOR POWER Touch icon to turn the monitor on. Touch icon to turn the monitor off. * NOTE - Monitor start mode will follow “AUTO POWER ” setting. SELECT icon to select CAMERA. Touch icon to select the option in SET UP MENU. -
Page 6: Display Menu
Operation DISPLAY MENU MENU MENU UP/DN SELECT UP/DN MENU Short Key (more than Touch 1 sec) BRIGHT : [ 30 ] CONTRAST : [ 30 ] DISPLAY COLOR : [ 30 ] MENU SHARPNESS : [ 30 ] TINT : [ 30 ] NTSC MODE * "TINT"... -
Page 7: System Setting
System Setting SETUP MENU Touch MENU icon for a while (over 2 sec) to enter MAIN MENU. Selectable OSD MENU disappears within 5 sec if there is no new icon touched. CAMERA SETTING MENU TRIGGER SETTING SPLIT MODE SETTING MAIN MENU UP/DN SELECT... -
Page 8: Trigger Setting
System Setting 2. TRIGGER SETTING TRIGGER 1 SOURCE : CAM1 DELAY : 02sec TRIGGER MARKER : A;B;OFF SETTING MARKER SETTING SOURCE: [CAM1 => CAM2 =>CAM3=>CAM4=>SPILT1=>SPILT2=>SPILT3] Trigger1,2,3,4 UP/DN selecting option setting exit User can use 4 triggers and each trigger source can be selected. When the trigger is activated, the selected source's image is displayed. - Page 9 System Setting MARKER:[A;B;OFF] Trigger 1,2,3,4 UP/DN MARKER SELECT selecting option selecting MARKER SETTING UP-DOWN LEFT-RIGHT WIDTH MARKER SETTING UP / DN SELECT UP / DN SELECT UP / DN shifting selecting shifting option setting selecting exit MARKER A LEFT-RIGHT UP-DOWN WIDTH LEFT NARROW...
-
Page 10: Split Setting
System Setting 3. SPLIT MODE SETTING SPLIT 1 MODE : QUAD SPLIT 2 MODE : TRIPLE SPLIT MODE SPLIT 3 MODE : SPLIT SETTING SPLIT SETTING : SPLIT 1 SPLIT MODE : [ QUAD => SPLIT => TRIPLE ] SPLIT SETTING UP/DN selecting option setting... - Page 11 System Setting SPLIT The split display type can be set up from A to C. TYPE A TYPE B TYPE C Display type A, B, C DISPLAY TYPE : TYPE A ~ C SOURCE 1 : CAM 1 ~ 4 SOURCE 2 : CAM 1 ~ 4 AUDIO OUT...
-
Page 12: Auto Scan Setting
System Setting 4. AUTO SCAN SETTING AUTO SCAN : ON;OFF CAM1 DELAY : 0~20sec CAM2 DELAY : 0~20sec AUTO SCAN SETTING CAM3 DELAY : 0~20sec CAM4 DELAY : 0~20sec AUTO SCAN TIME SETTING UP / DN SELECT UP / DN SELECT MENU shifting... -
Page 13: Advanced Menu
System Setting 6. ADVANCED MENU AUTO POWER:[ ON ; AUTO ;OFF ] AUTO POWER : [ON;AUTO;OFF] SPEED SWITCH ADVANCED MENU FACTORY RESET UP / DN SELECT MENU shifting option setting exit * NOTE - Auto Setting Monitor keeps the last setting in memory: Monitor will start up "Power-on" mode or "Stand- by"... -
Page 14: System Setting
System Setting EXAMPLE OF SPEED SWITCH FUNCTION: * The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the SPEED SWITCH needs to be selected ON. * Adjust FREQUENCY into 67Hz. At this setting (and most common used tacho signal), the selected camera will be displayed during a speed of 0~33km/h. -
Page 15: Installation
Installation 1. Monitor Fixing Method 1) STAND BRACKET ,RAILS TYPE(INCLUDED) 2) ROOF MOUNT BRACKET : OPTION 3) WINDOW BRACKET: OPTION 2. Sunvisor Mounting Method - 15 -... -
Page 16: Connection
Connection POWER/TRIGGER WIRE FUNCTIONS REF# WIRE COLOR DESCRIPTION POWER IN DC (12 TO 30V) BLACK GROUND ORANGE SPEED SWITCH (TACHO SIGNAL) GREEN TRIGGER1 : 12 TO 30V, highest priority BROWN TRIGGER2 : 12 TO 30V BLUE TRIGGER3 : 12 TO 30V YELLOW TRIGGER4 : 12 TO 30V FUSE... -
Page 17: Specifications
Specifications MXN-7DMQ Power Input DC 10V~32V Power Consumption Max. 24Watt Video System NTSC / PAL compatible Panel 7" Digital Resolution 800 (H) x 480 (V) x 3 (RGB) Format 16:9 wide Camera input(4CH) Mini DIN 4P, 1Vp-p 75Ω Operating Temp. - Page 18 - MEMO -...
