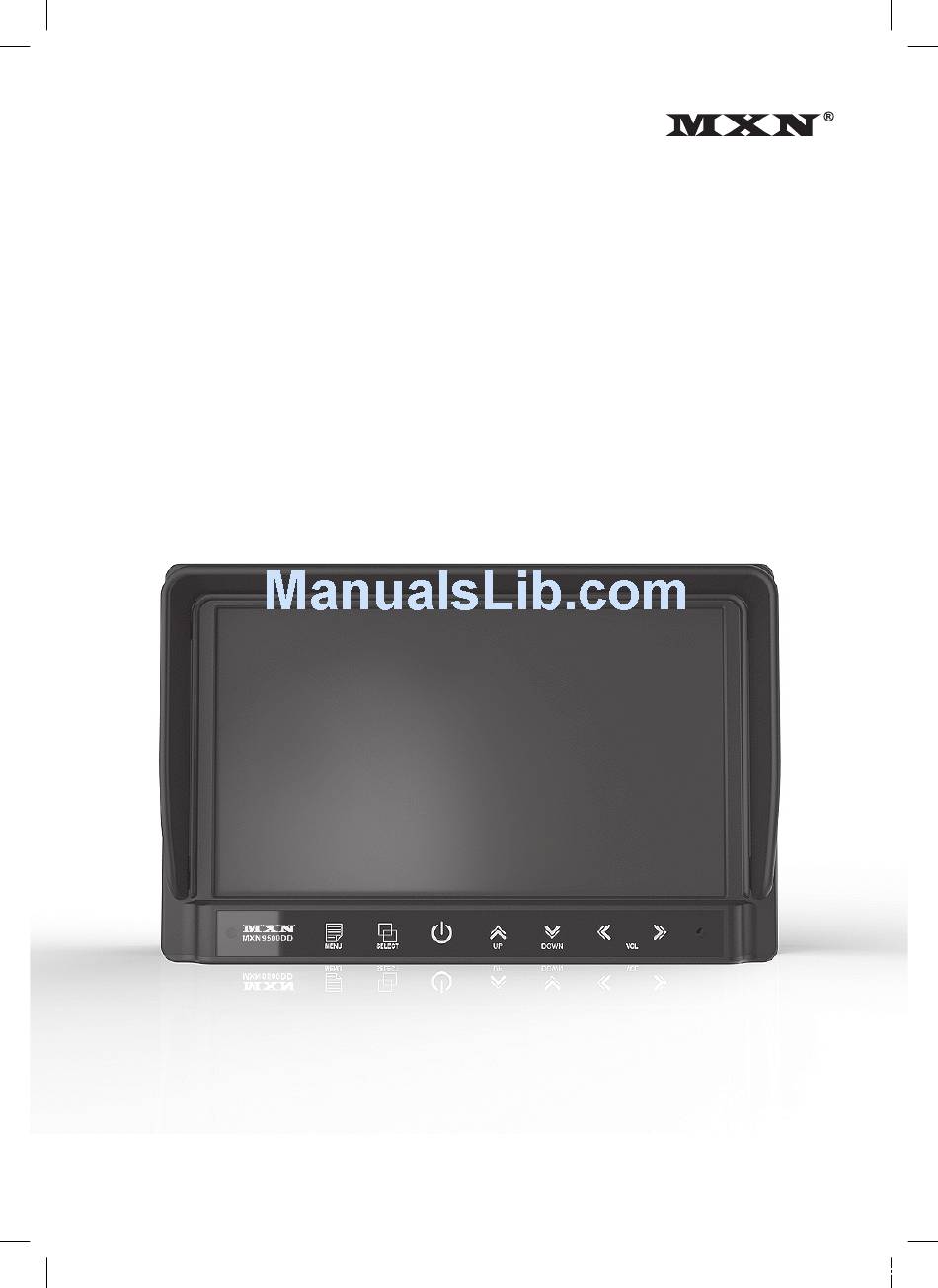

- Page 1 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT. 7” DIGITAL 2-DIN TFT LCD ALL ROUND VISION MONITOR Model: MXN9500DD Design and specifications are subject to change without notice.
-
Page 2: Table Of Contents
· · · · · · PACKAGE CONTENTS 03 OPERATION 04 SYSTEM SETTINGS 05 FUNCTION 05 PICTURE MENU 06 NORMAL/MIRROR 06 AUDIO 07 TRIGGER AUDIO 07 CAMERA TRIGGER 08 DISTANCE MARKER 08 MARKER 08 AUTO PICTURE SCAN 09 CAMERA NAME 09 SPEED SWITCH 10 MENU 11 SPLIT 11... -
Page 3: Package Contents
PACKAGE CONTENTS MANUAL SUNVISOR MONITOR BRACKET REMOVER MULTI-CABLE CABLE CLIP BRACKET SCREWS ITEM Q’TY MONITOR SUNVISOR REMOVER BRACKET BRACKET SCREW CABLE CLIP MULTI-CABLE MANUAL MXN9500DD Owner’s Manual... -
Page 4: Operation
OPERATION SPEAKER RIGHT Press [RIGHT] button to adjust monitor volume. Use [RIGHT] button to change OSD setting during system setting. LEFT Press [LEFT] button to adjust monitor volume. Use [LEFT] button to change OSD setting during system setting. DOWN Press [DOWN] button to navigate the menu for system setting. Press [UP] button to navigate the menu for system setting. -
Page 5: Function
[ON] Monitor starts up mode automatically. 『 』 Power-ON [OFF] Monitor starts up mode automatically. 『 』 Stand-By RESET Press > > button to go the factory default settings. SYSTEM INFO. Refers to system information of the monitor. MXN9500DD Owner’s Manual... -
Page 6: Picture Menu
SYSTEM SETTINGS PICTURE CONTRAST BRIGHTNESS COLOR TINT AUX PICTURE CONTRAST BRIGHTNESS COLOR TINT PICTURE MENU Press [LEFT/RIGHT] button to adjust the PICTURE of the monitor. User can adjust picture setting values for CAMERA CHANNELS and AUX CHANNEL individually. Via PICTURE MENU, the picture of CAM1, CAM2, CAM3, CAM4, SPLIT, TRIPLE, QUAD MODE can be adjusted. -
Page 7: Audio
Choose the required volume level per trigger. When the mode is [ON], audio will be on (activated) during Trigger mode. When the mode is [OFF], audio will be off (mute) during Trigger mode (user can not adjust the volume manually during Trigger activation). MXN9500DD Owner’s Manual... -
Page 8: Marker
SYSTEM SETTINGS CAMERA TRIGGER TRIGGER 1 CAM1-QUAD TRIGGER 2 CAM1-QUAD TRIGGER 3 CAM1-QUAD CAM1-QUAD TRIGGER 4 2 (0-9) TRIG 1. DELAY 2 (0-9) TRIG 2. DELAY 2 (0-9) TRIG 3. DELAY 2 (0-9) TRIG 4. DELAY CAMERA TRIGGER TRIGGER 1/2/3/4 (Trigger source selection) Select the required trigger source: CAM1/CAM2/CAM3/CAM4/AUX/SPLIT/TRIPLE/QUAD REMARK TRIGGER PRIORITY: TRIGGER 1 >... -
Page 9: Camera Name
] button for 4 seconds to auto scanning function. ACTIVATE/INACTIVATE CAMERA NAME CAM1 NAME CAM1/REAR/LEFT/RIGHT/FRONT CAM2 NAME CAM2/REAR/LEFT/RIGHT/FRONT CAM3 NAME CAM3/REAR/LEFT/RIGHT/FRONT CAM4 NAME CAM4/REAR/LEFT/RIGHT/FRONT CAMERA NAME CAMERA NAME can be selected as CAM1, 2, 3, 4/ REAR/ LEFT/ RIGHT/ FRONT. MXN9500DD Owner’s Manual... -
Page 10: Speed Switch
SYSTEM SETTINGS SPEED SW SPEED SWITCH ON/OFF FREQUENCY 67 Hz UNDER FREQUENCY CAM CAM3/ CAM1~QUAD ON/OFF OVER FREQUENCY DISPLAY CAM1/ CAM2~QUAD OVER FREQUENCY CAM SPEED SWITCH The orange wire needs to be connected with the vehicle’s analogue tacho signal and via MENU the SPEED SWITCH needs to be selected ON. -
Page 11: Menu
CAM2 SOURCE 3 CAM3 AUDIO CAM1 MODE TRIPLE configuration: SOURCE 1 Select S1 Camera (CAM1~CAM4). SOURCE 2 Select S2 Camera (CAM1~CAM4). SOURCE 3 Select S3 Camera (CAM1~CAM4). AUDIO Select Audio (CAM1~CAM4). MODE Select the preferred TRIPLE MODE. MXN9500DD Owner’s Manual... -
Page 12: Quad
MENU QUAD SOURCE 1 CAM1 SOURCE 2 CAM2 SOURCE 3 CAM3 SOURCE 4 CAM4 AUDIO CAM1 MODE QUAD configuration: SOURCE 1 Select S1 Camera (CAM1~CAM4). SOURCE 2 Select S2 Camera (CAM1~CAM4). SOURCE 3 Select S3 Camera (CAM1~CAM4). SOURCE 4 Select S4 Camera (CAM1~CAM4). AUDIO Select Audio (CAM1~CAM4). -
Page 13: Distance Marker Adjustment
LEFT/RIGHT. When right color of distance marker is seen as RED color, right line of distance marker can be adjusted LEFT/RIGHT. Marker B- Horizontal line User can adjust horizontal line’s position by pressing [UP/ DOWN] buttons. MXN9500DD Owner’s Manual... -
Page 14: Auto Picture Scan On/Off Function
MENU MENU LOCK ON/OFF FUNCTION LOCK ON/OFF FUNCTION The set up menu can be locked as prevention against unauthorized users. LOCK ON mode At Power-ON mode, hold [DOWN] button pressed for 10 seconds to set up LOCK ON function. When [LOCKED] is displayed on the screen, user can use [POWER, SELECT, VOLUME] buttons only and user can adjust settings in the PICTURE MENU. -
Page 15: Connections
BLUE: TRIGGER 3 (10~30V) YELLOW: TRIGGER 4 (10~30V) ORANGE: Speed Switch (Tacho signal, 0-200Hz) BLACK: Ground RED: Main power 12~30V DC via ignition (+15) YELLOW: RCA Video In WHITE: RCA Audio In Camera 1(Option) Camera 2(Option) Camera 3(Option) Camera 4(Option) MXN9500DD Owner’s Manual... -
Page 16: Installation
INSTALLATION IN-DASH INSTALLATION Insert the monitor into 2DIN size hole in the vehicle’s dashboard. Connect the sun visor with the monitor at insert holes as shown below. (a, b) REMOVAL OF INSTALLED MONITOR Remove the sun visor from the installed monitor. Insert the removers in the holes in the installed monitor. -
Page 17: On-Dash Installation With Bracket
ON-DASH INSTALLATION WITH BRACKET Attach and fix the bracket on the designated place. Attach and fix the monitor to the bracket. Attach the sun visor to the monitor. Connect the multi-cable with the monitor. MXN9500DD Owner’s Manual... -
Page 18: Installation Of Heavy Duty Mounting Brackets
INSTALLATION INSTALLATION OF HEAVY DUTY MOUNTING BRACKETS MONITOR can be connected with different type of optional HEAVY DUTY MOUNTING BRACKETS. Please check the compatibility in advance, then please follow installation as described below. 30.00mm (*Option) TYPE A 38.00mm 38.00mm 10.0mm FMBK 5.00mm 40.00mm (*Option) -
Page 19: Specifications
-25°C to + 75°C OPERATING TEMP. -30˚C to + 85˚C STORAGE TEMP. IMPACT RATING 4-Pin mini DIN (MXN configuration) CAMERA CONNECTOR Light Black (ABS) HOUSING Volume · Brightness · Color · Contrast · Tint · CAM 1/2/3/4 · Split · Triple ON-SCREEN DISPLAY ·... - Page 20 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT. 7” DIGITAL 2-DIN TFT LCD ALL ROUND VISION MONITOR Model: MXN9500DD Design and specifications are subject to change without notice.
