- Page 1 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT. 10.1” DIGITAL 3CH LCD ALL ROUND VISION MONITOR Model: MXN10-TVI Design and specifications are subject to change without notice.
- Page 2 INDEX PACKAGE CONTENTS OPERATION SYSTEM SETTINGS MENU STRUCTURE FUNCTION PICTURE MENU NORMAL/MIRROR AUDIO TRIGGER AUDIO CAMERA TRIGGER DISTANCE MARKER MARKER DISTANCE MARKER ADJUSTMENT AUTO PICTURE SCAN CAMERA NAME SPEED SWITCH MENU SPLIT MANUAL SELECTION MENU LOCK ON/OFF FUNCTION AUTO PICTURE SCAN ON/OFF FUNCTION CONNECTIONS CAMERA INPUT INSTALLATION...
-
Page 3: Package Contents
CAMERA INPUT CABLE BRACKET SCREWS MOUNT SCREWS HEAVY DUTY MOUNT ITEM Q’TY MONITOR CAMERA INPUT CABLE HEAVY DUTY MOUNT MOUNT SCREWS (Machine Screw, M5 / 12mm) PH M5x12 BRACKET SCREWS (Tapping Screw, M5 / 25mm) TH 1, M5x25 MANUAL MXN10-TVI Owner's Manual... -
Page 4: Operation

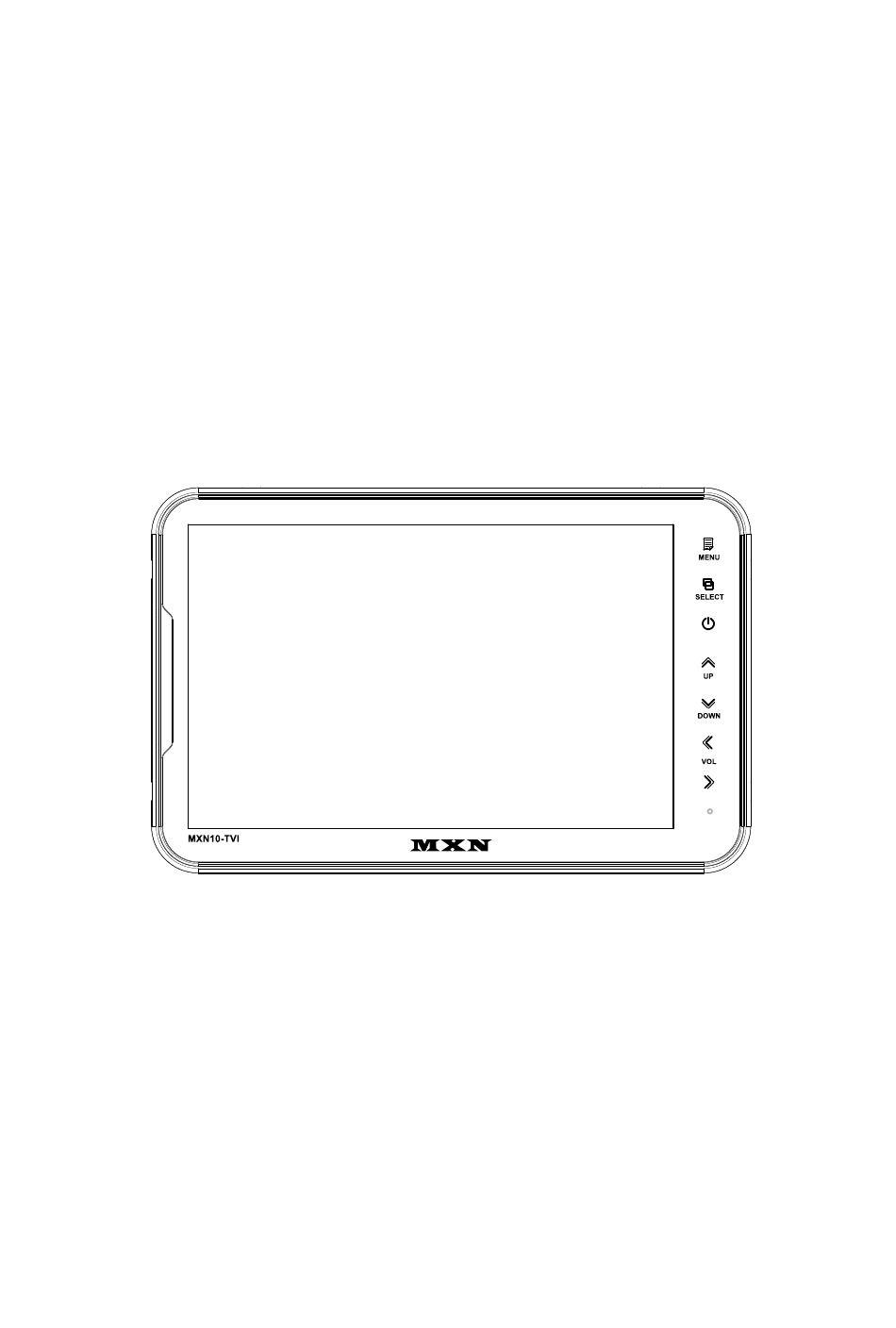

OPERATION A. MENU Press [MENU] button for system settings. B. SELECT Press [SELECT] button to select the respective channel. [CAM1 - CAM2 - CAM3 - SPLIT]. C. POWER Press [POWER] button to turn on/off the monitor. D. UP Press [UP] button to navigate the menu for system settings. E. -
Page 5: System Settings
By receiving TACHO signal, you can set the operation at the corresponding frequency. SPLIT Display the camera video at the set position on the SPLIT screen. MANUAL SELECTION When the SELECTION button is pressed, the output screen is set. MXN10-TVI Owner's Manual... - Page 6 SYSTEM SETTINGS LANGUAGE ENGLISH SYSTEM AUTO DIMMER AUTO DAY BRIGHT NIGHT BRIGHT AUTO POWER BUZZER RESET >> SYSTEM INFO VER 1.00 FUNCTION LANGUAGE Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, FINNISH]. Select the preferred LANGUAGE. SYSTEM Select AUTO/TVI/AHD/NTSC/PAL DIMMER (Automatic Brightness Control) Select AUTO or OFF to enable Automatic or Manual brightness control.
-
Page 7: Picture Menu
PICTURE MENU is for the settings of PICTURE from CAM1, CAM2, CAM3, SPLIT MODE. FISHEYE When using the FISHEYE camera, 『ON』 will calibrate the screen on the FULL screen. CAM1 NORMAL CAM2 NORMAL CAM3 NORMAL NORMAL/MIRROR Each camera picture (CAM1/CAM2/CAM3) can be switched between NORMAL& MIRROR image. MXN10-TVI Owner's Manual... - Page 8 SYSTEM SETTINGS CAM1 AUDIO CAM2 AUDIO CAM3 AUDIO SPLIT AUDIO Audio ACTIVATED Mode in normal mode. When the mode is [ON], audio will be on (activated) When the mode is [OFF], audio will be off (mute). TRIG1 AUDIO ENTER TRIG2 AUDIO ENTER TRIG3...
-
Page 9: Camera Trigger
[TRIGGER DELAY] function avoids repeating ON/OFF of the monitor. TRIGGER1 TRIGGER2 TRIGGER3 MARKER DISTANCE MARKER Select ON to have DISTANCE MARKER for CAM1, CAM2, CAM3 DISTANCE MARKER is displayed as the trigger signal is activated. MARKER Select of DISTANCE MARKER. or ___ MXN10-TVI Owner's Manual... -
Page 10: Distance Marker Adjustment
SYSTEM SETTINGS >> Marker A >> Marker B DISTANCE MARKER ADJUSTMENT Users can make adjustments by pressing the SELECT button in the menu. (It is not available on the split mode screen) Marker A- Parking line The left/right/both markers will be selected in order each time you press the SELECT button. When the marker is red it can be adjusted UP/DOWN or LEFT/RIGHT. -
Page 11: Auto Picture Scan
If the SCAN TIME is set as[0], monitor skips its channel during scanning. Press [UP] button for 4 seconds to ACTIVATE / INACTIVATE auto scanning function. CAM NAME DISPLAY CAM1 NAME CAM1 CAM2 NAME CAM2 CAM3 NAME CAM3 CAMERA NAME CAMERA NAME can be selected as CAM1, 2, 3/REAR/LEFT/RIGHT/FRONT. MXN10-TVI Owner's Manual... -
Page 12: Speed Switch
SYSTEM SETTINGS SPEED SWITCH FREQUENCY 67Hz UNDER FREQUENCY CAM CAM3 OVER FREQUENCY DISPLAY OVER FREQUENCY CAM CAM1 SPEED SWITCH The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the SPEED SWITCH needs to be selected ON. At FREQUENCY 67Hz setting (and the most common used tacho signal) the selected camera will be displayed during a speed of 0~33km/h. -
Page 13: Manual Selection
Manually pressing the channel select button skips the camera selected OFF and display mode selected OFF. [ NOTE ] Triggers neglect the MANUAL SELECTION settings. In case of Trigger activation, these ON/ OFF settings will be ignored. MXN10-TVI Owner's Manual... -
Page 14: Scan On/Off Function
MENU MENU LOCK ON/OFF FUNCTION LOCK ON/OFF FUNCTION The setup menu can be locked to ban any unauthorized users. LOCK ON mode At the Power-ON mode, press the [DOWN] button for 10 seconds to activate the LOCK ON function. When [LOCKED] is displayed on the screen, the user can use only [POWER, SELECT, VOLUME] buttons and the user can edit settings for the PICTURE menu. -
Page 15: Camera Input
Main +DC Power (+15) at the monitor's red wire is disconnected while the camera's shutter is OPEN. The "Shutter Memory" wire does not drain any current from the vehicle's battery within several seconds after the camera's motorized shutter(s) are closed. MXN10-TVI Owner's Manual... -
Page 16: Installation
INSTALLATION MONITOR installation with Standard Heavy Duty Mount Bracket Fix the supplied Heavy Duty Mount Bracket into the monitor with the included screws. Heavy Duty Mount Bracket’s angle fixation can be adjusted by tightening knobs. [NOTE] • The screw type : Mount-screw type, M5 (diameter of 5mm). •... - Page 17 • The length of screw : Max. 12mm. • Screw thread : 0.8mm. Please make it sure to use the proper screws in order to avoid any damage into the monitor. Type A(option) 38mm Type B(option) 38mm MXN10-TVI Owner's Manual...
-
Page 18: Specifications
SPEAKER IMPEDANCE Max. 8Ω / 1W OPERATING TEMP. -20°C to + 70°C STORAGE TEMP. -30°C to + 80°C IMPACT RATING CAMERA CONNECTOR 4-Pin mini DIN (MXN configuration) HOUSING Light Black (ABS) ■ Volume ■ Brightness ■ Color ■ Contrast Tint ON-SCREEN ■... - Page 19 MEMO MXN10-TVI Owner's Manual...
- Page 20 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT. 10.1” DIGITAL 3CH LCD ALL ROUND VISION MONITOR Model: MXN10-TVI Design and specifications are subject to change without notice.
