8. Due to unlevel floor and platforms, the roof may be misaligned as shown in

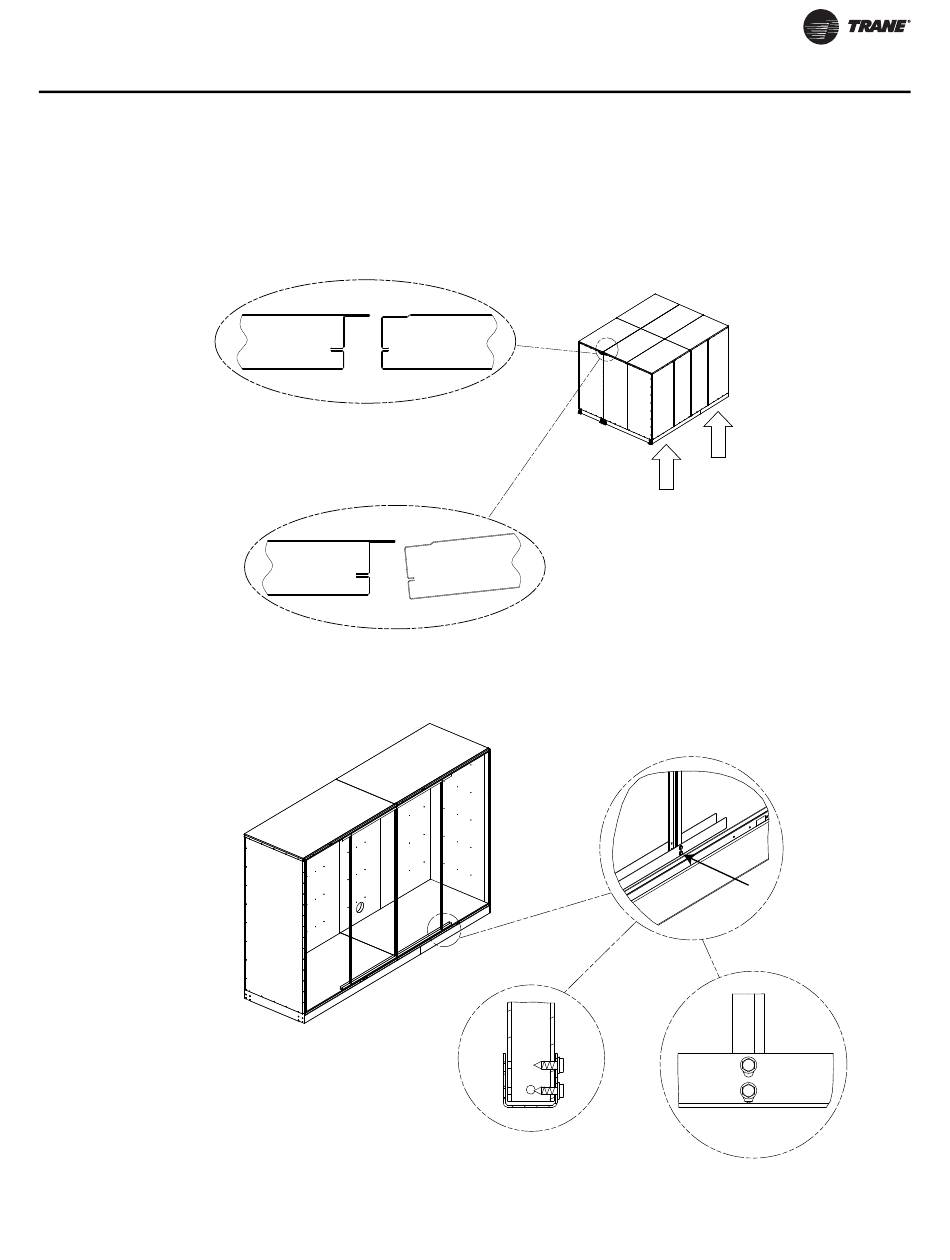

Figure 21. Roof alignment (indoor unit only)
Figure 22. Adjust height of roof by adjusting vertical channels
At the center (widthwise) of the unit,
measure the height of each adjacent
subassembly and verify that the subassembly
with the overlap sheet metal is higher than
the mating subassembly roof. If it is not,
adjust the height of either subassembly by
loosening the screws in the vertical channels
or component structure and adjust the height
of the roof.
CLCH-SVX07C-EN
common solution is to raise one end of the shipping section to clear the hemming before pulling
the units together.
Installation - Mechanical
Figure 21. A
Loosen screws along
width of unit for roof
height adjustment.
