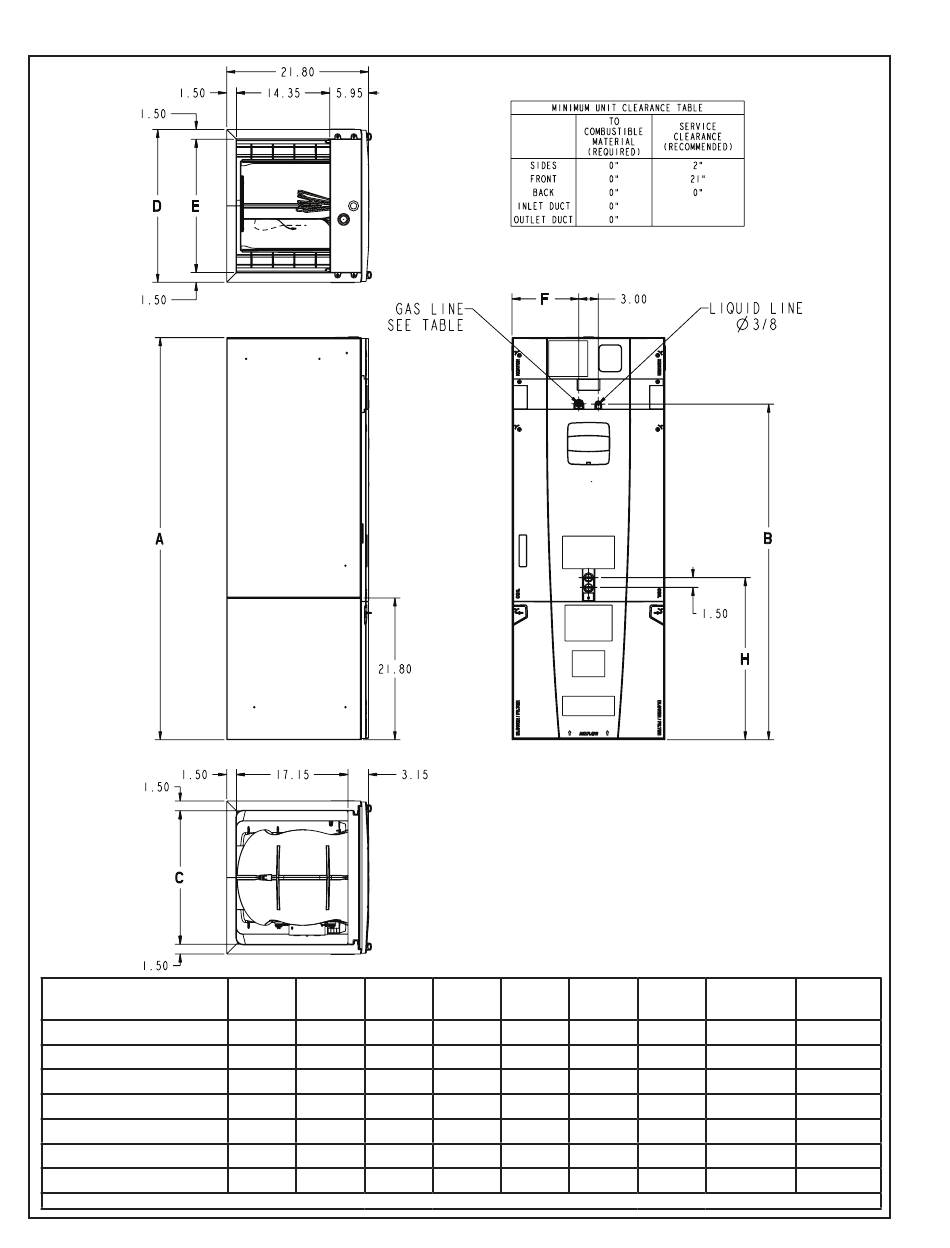

Section 16. Unit Outline Drawing

MODEL NO.
TAM4A0A18, *AM4A0A18 49.9
TAM4A0A24, *AM4A0A24 49.9
TAM4A0A30, *AM4A0A30 49.9
TAM4A0A36, *AM4A0A36 49.9
TAM4A0B42, *AM4A0B42 55.7
TAM4A0C48, *AM4A0C48 56.9
TAM4A0C60, *AM4A0C60 61.7
* May be "A" or "T"
36
A B C
39.6 14.5
39.6 14.5
39.6 14.5
39.6 14.5
45.5 18.4
46.7 20.5
51.5 20.5
D E F
17.5 14.5 7.3
17.5 14.5 7.3
17.5 14.5 7.3
17.5 14.5 7.3
21.3 18.4 9.2
23.5 20.5 10.3
23.5 20.5 10.3
H FLOW GAS LINE
CONTROL BRAZE
26.7 EEV/24V 3/4
26.7 EEV/24V 3/4
26.7 EEV/24V 3/4
24.4 EEV/24V 3/4
24.8 EEV/24V 7/8
24.2 EEV/24V 7/8
27.0 EEV/24V 7/8
