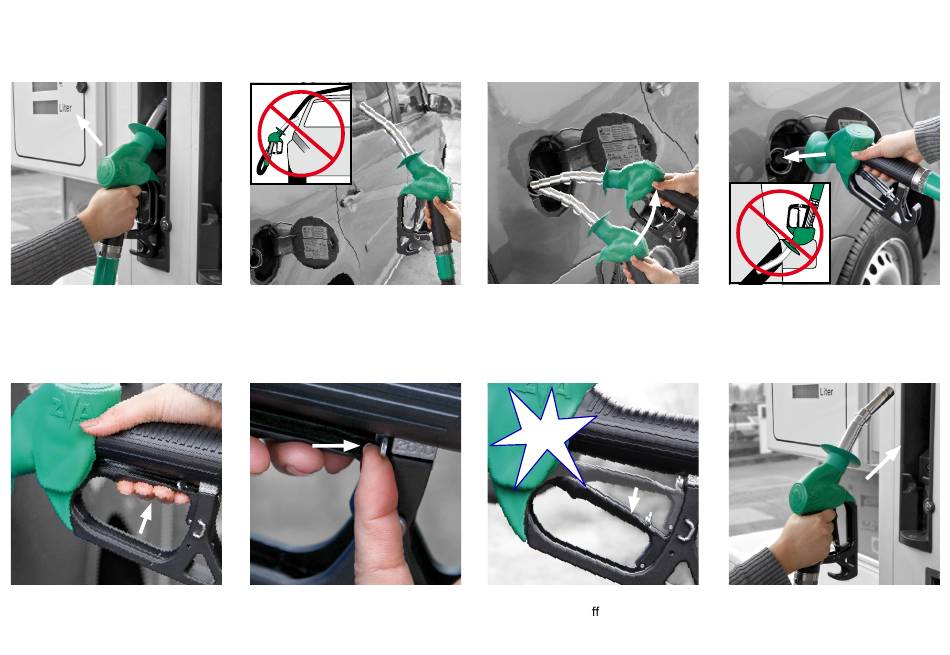

How to use the Automatic Nozzle 'ZVA Slimline 2'

Take nozzle from dispenser

Tank opening should be near dispenser.

When spout tip is near tank

Insert nozzle in tank opening.

Take nozzle towards the car,

opening, tilt the nozzle

Ensure nozzle is properly engaged

spout pointing upward.

and cannot fall out.

click

When dispenser is ready, lift the

For hands-free refuelling, arrest

Automatic shut-o , either by preset

With spout pointing upward,

lever to dispense fuel

lever with hold-open latch

or when tank is full. Wait for some

put back nozzle to dispenser

seconds before removing nozzle.
