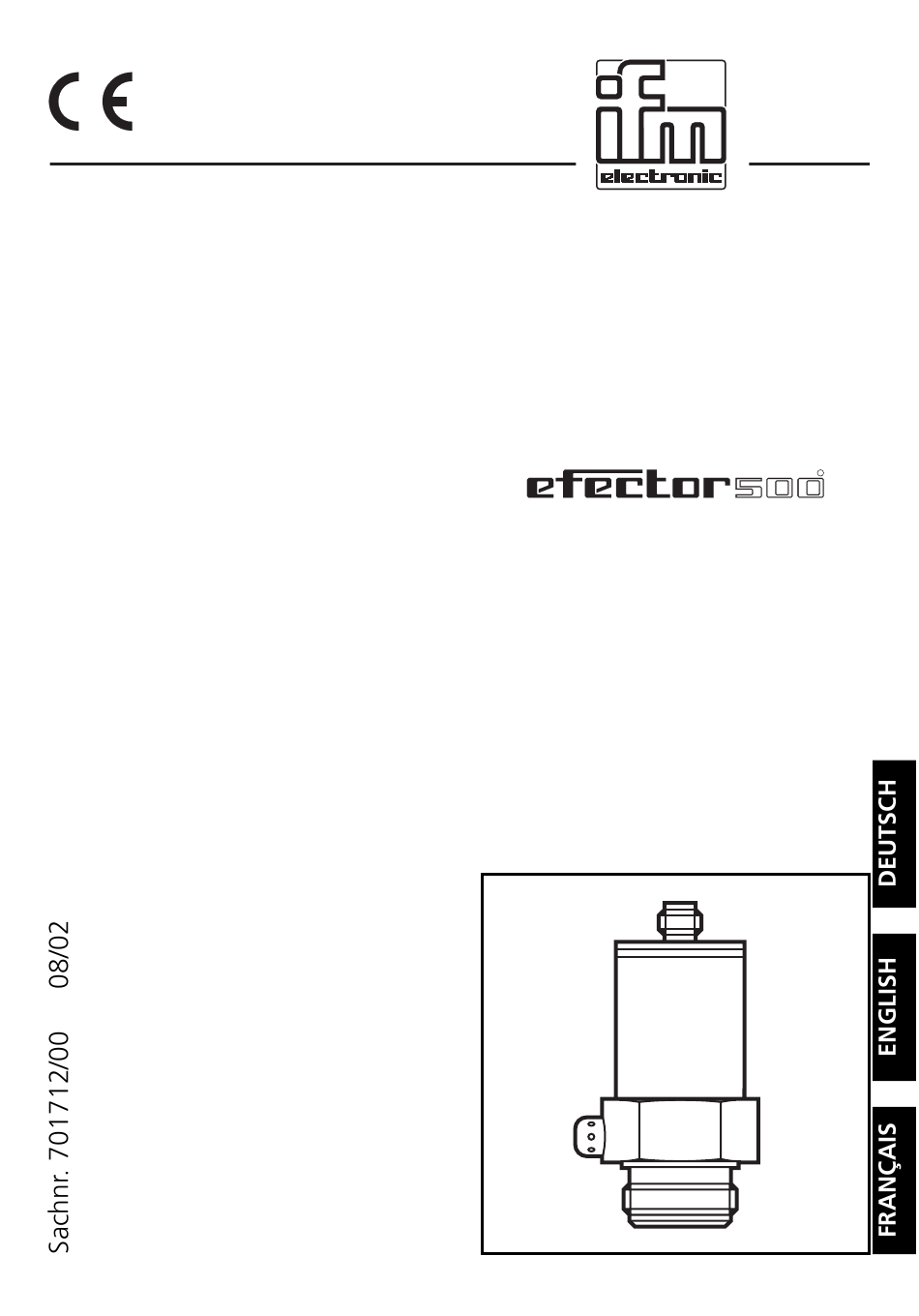

- Page 1 Bedienungsanleitung Operating instructions Notice utilisateurs Elektronischer Drucksensor Electronic pressure sensor Capteur de pression électronique PL2058...
-
Page 2: Table Of Contents
Contents 1 Function and features ..... . page 13 2 Use with factory setting ....page 14 Installation . -
Page 3: Function And Features
Function and features The pressure sensor detects the system pressure and converts it into an analog output signal (4 ... 20 mA). The measuring range can be scaled to up to 25% of the value of the span (→ page 19, 21). It is also indicated: •... -
Page 4: Use With Factory Setting
Use with factory setting Installation Before mounting and removing the sensor, make sure that no pressure is applied to the system. The unit is adaptable for various process fittings. ifm adapters to be ordered separately as acces- sories. Mount adapter (C) to the sensor (A) first, then sensor + adapter to the process connection by means of a nut, a clamping flange or... -
Page 5: Electrical Connection
Use with factory setting Step 2 Screw the sensor into the adapter. Avoid mechanical influ- ence on the sealing chamfers. Step 3 Clamp sensor and adapter into a clamping device (E). The sealing chamfers (F) must not be dam- aged. Tighten the sensor with a spanner until you can feel the end stop. -
Page 6: Installation And Set-Up / Operation / Maintenance
Use with factory setting Installation and set-up / operation / maintenance After mounting, wiring and setting check whether the unit operates correctly. Cleaning of the filter cover If viscous and residues producing media clog the filter cover of the sensor (and thus reduce the mea- suring accuracy slightly), you can clean it. -
Page 7: Programming / Use With Eps Interface
Programming / Use with EPS RS232 interface EPS RS232 interface Connect the sensor to a PC via the EPS-RS232 interface (order no. E30066). • The sensor is supplied with operating voltage by the interface, • and transmits its data (measured values, analogue signal and para- meter settings) continuously via the interface. -
Page 8: Electrical Connection
3 Programming / Use with EPS RS232 interface Wiring of sensor and EPS interface For use of the sensor with EPS interface prior to installation of the sen- sor: Use a suitable power supply (24 V power supply; ifm order no. E30067). -
Page 9: Technical Informations / Functioning / Parameters
Technical information / Functioning / Parameters Adjustable parameters Lower end of analog output Measured value for which the output signal is 4 mA. Upper end of analog output Measured value for which the output signal is 20 mA. Minimum distance between ASP and AEP = 25%, Setting range: in steps of mbar... -
Page 10: Technical Data
4 Technical information / Functioning / Parameters Technical data Operating voltage [V] ....... 14 ... 30 DC Operating voltage for EPS interface with sensor [V] . -
Page 11: Scaling The Measuring Range
Technical information / Functioning / Parameters Scaling the measuring range • With the parameter "Lower end of analog output" (ASP) you can select the measuring value for which the output signal is 4 mA. • With the parameter "Upper end of analog output" (AEP) you can select the measuring value for which the output signal is 20 mA. - Page 12 Pressure sensors PL2058 Electronic pressure sensor PL20 for Aseptoflex adapter flush mounting Zero and span adjustable Programmable via EPS interface Analog output Measuring range -12.5...250 mbar 1: Aseptoflex thread 2: Aseptoflex sealing edge Application Type of pressure: relative pressure Hygienic systems, viscous media and liquids with suspended particles Electrical design 3-wire DC;...
- Page 13 PL2058 Operating temperature [°C] -25...80 Medium temperature [°C] -25...80 Storage temperature [°C] -40...100 Protection IP 67, III Insulation resistance [M ] > 100 (500 V DC) Shock resistance [g] 50 (DIN / IEC 68-2-27, 11ms) Vibration resistance [g] 20 (DIN / IEC 68-2-6, 10 - 2000 Hz) Min.
