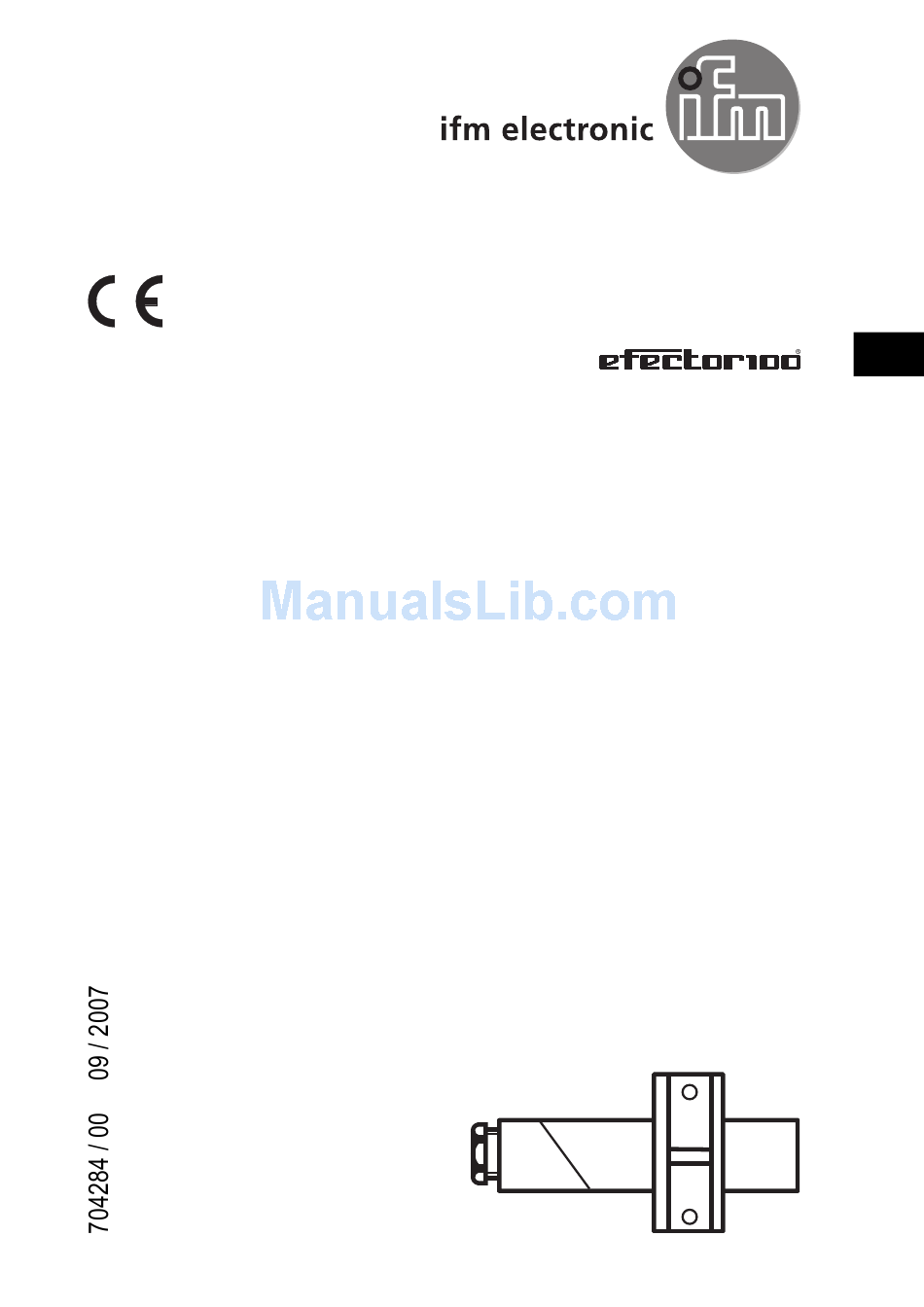

  • Page 1 Installation Instructions Inductive sensor...
  • Page 2 Function and features This sensor detects metals without contact and indicates their presence by provid- ing a switched signal. Nominal sensing range (Sn) 10 mm; operating distance (Sa) 0 ... 8,1 mm (values based on standard measurement with mild steel; a shorter sensing range for other metals).
  • Page 3: Electrical Connection

    Electrical connection Disconnect power before connecting the sensor. Connection strictly to the indications on the type label. Note: insert a miniature fuse according to the technical data sheet, if specified. Recommendation: check the unit for reliable function after a short cirucit. Programming of the output function of 2-wire-DC types (quadronorm) by wiring: •...
  • Page 4 Scale drawing Mounting clamp...
