Page 1: User Manual

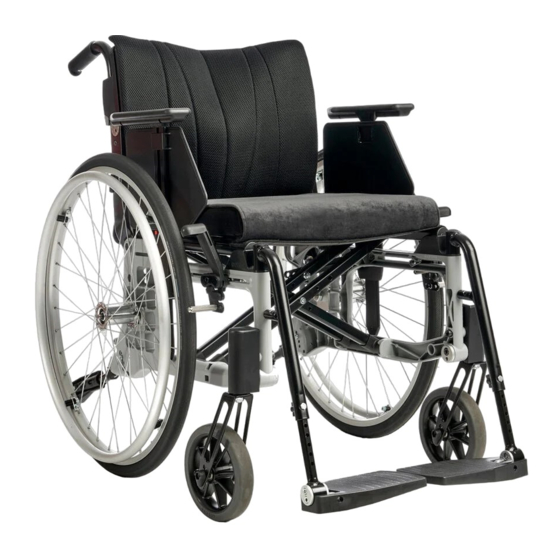

User manual Cross-folding wheelchairs / English... - Page 2 Rear wheel with quick release Anti-tip feature 3-4c m • When assembling, always check that the rear wheel is correctly positioned. • The button in the hub must spring out properly. 3-7 cm • Test how far back you would like the wheelchair to be able to tip.
-
Page 4: Back Upholstery
Backrest angle Back upholstery • Loosen all back straps. • Tighten the strap just below the curve of the back. • The backrest angle may need to be • Adjust the other straps to allow space adjusted when adjusting the shape for the bottom and follow the natural of the back upholstery. -
Page 5: From The Front
Transfer to/from a wheelchair From the front Sideways • Back the wheelchair up 5-10 cm • Back the wheelchair up 5-10 cm so before stopping so that the castors are that the castors are facing forwards. facing forwards. • The wheelchair should be close to •... - Page 6 Stairs Kerbs • Always ask for help. • Flip up the anti-tip stabilisers. • Flip up the anti-tip stabilisers. • If you are unsure, ask for help. • Ascending: With the wheelchair facing • Up/Low kerb: Back up, take a backwards.
-
Page 7: Explanation Of Symbols
Vehicle transport Car/taxi Mobility service bus Etac’s wheelchairs are crash-tested and • Ideally, the wheelchair should be placed in the boot. approved in accordance with ISO-7176-19 and ISO 10542, with • If the wheelchair is placed in the back attachment features and three-point seat, ensure that it cannot tip over or belts from Unwin. -
Page 8: Maintenance
- Lubricate and clean the cross elements under the seat - Pump up the tyres The wheelchair feels “unsteady” - Check that screws and controls are properly tightened Maximum user weight: Cross/Twin 125 kg, Cross XL 150 kg, Transit 145 kg 74590A 06-06-12 Etac,...
